CC Hot-Dip Galvanized Column Cap for 4x Beam, 4x Post
- Designed for connecting beams to columns securely
- Hot-dip galvanized for enhanced corrosion resistance
- Engineered for structural strength in heavy-duty applications
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
Highlights
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- Nominal beam width: 4x
- Nominal post size: 4x
- Made from 7-Gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

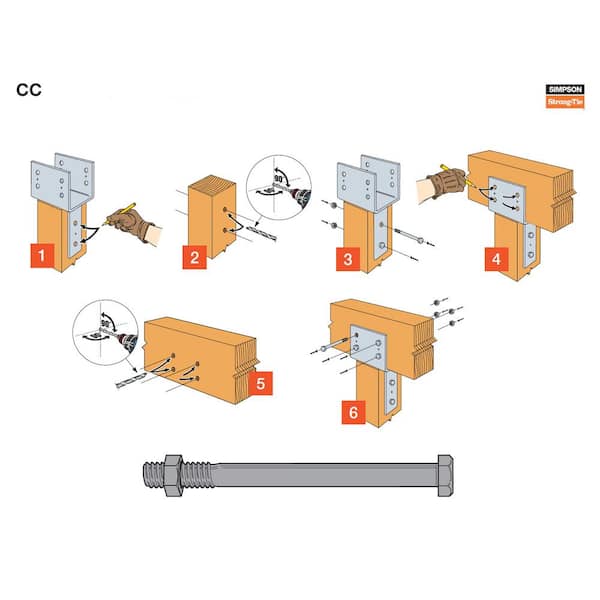

- Install with (4) 5/8 in. Dia HDG bolts
- Shop all Simpson Strong-Tie products
- Return Policy
Product Information
Specifications
Dimensions: H 12.5 in, W 8 in, D 3.94 in
Dimensions
Beam Width | 4x4 |
|---|---|
Nominal Post Size (in.) | 4x4 |
Product Depth (in.) | 3.94 in |
Product Height (in.) | 12.5 in |
Product Width (in.) | 8 in |
Details
Cap Type | Column Cap |
|---|---|
Connector Finish | Hot dip galvanized |
Fasteners Included | Fasteners Not Included |
Features | No Additional Features |
Gauge | 7 |
Material | Steel |
Material Connector Compatibility | Wood to Wood |
Package Quantity | 1 |
Product Weight (lb.) | 6.69 lb |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | Limited Warranty |
|---|
Questions & Answers
Would CC66HDG work with treated glulam beam 51/4”x16”x 24’ and 6x6 posts?
Hi Weiss, this is Bekah from Simpson Strong-Tie. The HDG version is what we would recommend as a minimum unless your application needs Stainless Steel. As for the sizes; the 66 version is for nominal 6x and engineered 5 1/4" lumber there for would be the right size. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.
I have a glu lam beam 4 X 10 to go onto a post 4 X 6 post What do you sugest i use for th connection?
Hi Brad, thank you for your message. We want to make sure we address your question, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you. - Stacy
What size drill bit do I use for the bolts? Any input would be appreciated.
Hi Oscar, this is Colin from Simpson Strong-Tie. The CC66HDG requires 5/8" diameter bolts. You'll be safe with a 11/16" diameter bit. The bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter per the NDS. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. Thank you.
What size pilot hole to drill screws into this product?
Hi Oscar, this is McKenzie from Simpson Strong-Tie. This product calls out for bolts, I'm not sure I fully understand your question. To better assist you please reach out to our customer service team at 800-999-5099. Thanks.
What size bolts do we use to screw this product in?
Hi Oscar, this is McKenzie from Simpson Strong-Tie. The call out for the CC66 is 5/8 bolts. Thank you, have a great day.
Does this product come black powered coated? If not, can I spray painted black?
Hi Oscar, this is McKenzie from Simpson Strong-tie. We can special make the column cap in black powder coat; you'd have to get with your local home depot to get this process started. We also have a blog which I have below in regard to spray painting connectors. https://blog.strongtie.com/diy-how-to-spray-paint-metal-connectors/ Thanks.
I find it hard to believe you are selling this product with barely a spec and no structural load data
Good afternoon mmmm, this is McKenzie with Simpson Strong-Tie. I am sorry to hear that you weren't able to get the load values and specifications from the Home Depot site you needed. If the information isn't there we do provide it on our website at www.strongtie.com. When you get to our website search the model number (CC66HDG) in the search engine at the top of the page. Then you will be able to go the CC Column Cap product page and under the picture you click "Load Tables" and that will take you directly to the load tables for the CC Column Caps. Hope that helps and if you need further assistance please feel free to reach out to us at 800-999-5099.
is it tall enough to work with a 6x10 header.
Hi RaeLynn, this is Colin from Simpson Strong-Tie. The CC66HDG can accommodate a 6x10 beam. The bucket width is 5.5" and the height is 6.5". If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. Thank you.
