CC Hot-Dip Galvanized Column Cap for 6x Beam, 6x Post

$15380
Apply Now
Pay $128.80 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Industry leader in structural hardware engineering since 1956
  • Products designed and tested for strength and easy installation
  • Diverse product line for DIY and residential
Store
0 in stock
Text to Me
caret

Product Details

The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
  • Certified welds for confidence in strength and loading
  • Uplift loads increased for earthquake or wind loading
  • Bolt spacing that meets NDS code requirements to ensure optimal performance
  • Diamond holes to provide temporary fastening
  • Nominal beam width: 6x
  • Nominal post size: 6x
  • Made from 7-Gauge steel
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

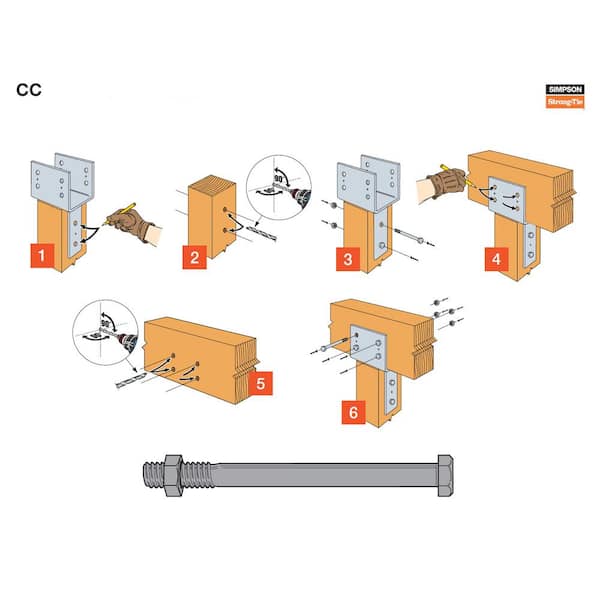

  • Install with (6) 5/8 in. Dia HDG bolts
  • Shop all Simpson Strong-Tie here.
  • Return Policy

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.
caret

Specifications

caret

Questions & Answers

11Questions
caret
Q:I find it hard to believe you are selling this product with barely a spec and no structural load data
by|Nov 16, 2022
1 Answer
Answer This Question

A:  Good afternoon mmmm, this is McKenzie with Simpson Strong-Tie. I am sorry to hear that you weren't able to get the load values and specifications from the Home Depot site you needed. If the information isn't there we do provide it on our website at www.strongtie.com. When you get to our website search the model number (CC66HDG) in the search engine at the top of the page. Then you will be able to go the CC Column Cap product page and under the picture you click "Load Tables" and that will take you directly to the load tables for the CC Column Caps. Hope that helps and if you need further assistance please feel free to reach out to us at 800-999-5099.

by|Nov 16, 2022
    caret
    Q:would this work with a 6x10 header?
    by|Sep 25, 2022
    1 Answer
    Answer This Question

    A:  ​Hi RaeLynn, this is Colin from Simpson Strong-Tie. The CC66HDG can accommodate a 6x10 beam. The bucket width is 5.5" and the height is 6.5". If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. Thank you.

    by|Sep 26, 2022
      caret
      Q:my beam actual width is 4.5(3 2x10s) and the posts are 6x6(5.5 actual). will this product work?
      by|Nov 4, 2021
      1 Answer
      Answer This Question

      A:  ​Hi Stan, thank you for your message. We want to make sure we address your dimension questions correctly. The key features of the CC66 is it is intended for a 6x beam and post meaning both widths are actually 5-1/2". Please contact the Simpson Strong-Tie Customer Service team at 800-999-5099 to help you find the correct column cap. We look forward to hearing from you.​​

      by|Nov 4, 2021
        caret
        Q:Is this cap suitable for a beam of 3" width? Is there a cap galvanized with a 3" beam width?
        by|Apr 17, 2021
        1 Answer
        Answer This Question

        A:  Hello Fred, a CC type cap is an option usually used for a heavier construction. It would be a special order item if hot-dip galvanized finish is required. The cap would need to be ordered with the following dimensions for a 3"-wide beam and a nominal 6x6 post: W1=3.25" W2=5.5". Note that required 5/8" diameter bolts and nuts are not supplied with the cap. Cap and fasteners need to have hot-dip galvanized finish for exterior wet conditions. You can also consider a pair of LPC6Z light duty post caps which fit over a 6x6 post and can be adjusted to accommodate 3"-wide beam. Here is a link to the product information page: https://www.strongtie.com/twopiecepostcaps_postcaps/lpc_cap/p/lpcz Hope this helps. Regards.

        by|Apr 20, 2021
          Showing 1-4 of 11
          caret

          Customer Reviews

          5 out of 5
          (8)
          • 5
            out of 8 reviews
          • 100%recommend this product
          Filter by:
          Showing 1-8 of 8 reviews
          Hi
          It was easy to order them online
          by
          • Verified Purchase
          • Recommended
          by
          • Verified Purchase
          This column cap was perfect for a deck structure supporting...
          This column cap was perfect for a deck structure supporting a large swim spa. Thick guage galvanized.
          by
          • Verified Purchase
          I was surprised they have this in stock I had...
          I was surprised they have this in stock I had it almost the next day really help me keep the job moving
          by
          • Verified Purchase
          Rating provided by a verified purchaser...
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          Heavy Duty top notch. If your doing outside treated wood, this is what you will need.
          Heavy Duty top notch. If your doing outside treated wood, this is what you will need.
          by
            • Recommended
            1 found this review helpful
            The column caps worked as they were designed to work and installed relatively easy.
            The column caps worked as they were designed to work and installed relatively easy.
