Model # HD-CSHDSHLF19

DIY Heavy-Duty Shelving Unit Hardware Kit

$107.00
/bundle
Apply Now
Pay $82.00 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • DIY hardware kit for easy home project assembly
  • Durable, high-quality components ensure lasting performance
  • ZMAX galvanized hardware for extra corrosion resistance

Free & Easy Returns In Store or Online

Return this item within 90 days of purchase.

Read Return Policy

Product Details

About This Product

Let's face it - everyone's garage needs a little help. Camping gear, sports equipment, tools or just boxes full of stuff all need a home within your home. Building strong and modular storage units and workbenches is easier than you think. Building this 4-ft wide shelving unit is fast and easy with 2x4 lumber and Simpson Strong-Tie Rigid Tie RTC2Z connectors. Create an organized, sturdy shelf unit that is ideal for the garage or basement. It can be built-in different lengths to accommodate your needs and is strong enough to hold the heaviest boxes or tools.

Highlights

  • Connectors are easy to install and strong enough to support even the heaviest boxes, tools or machinery
  • Can be finished with paint to blend with the style of your home

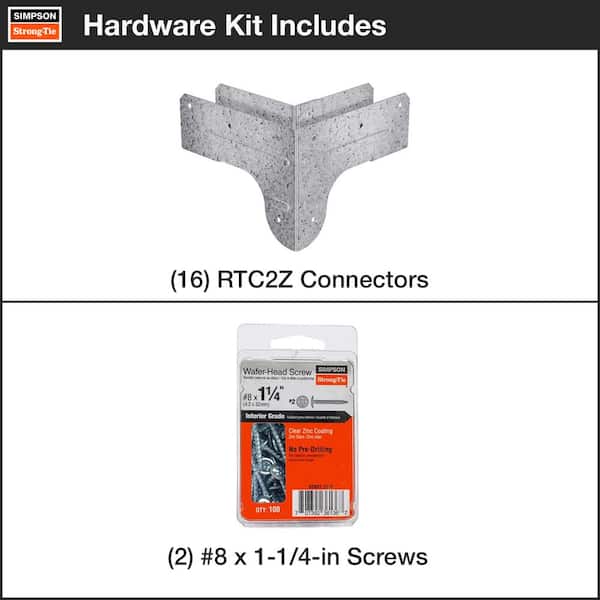

  • Includes: 16 Rigid Tie RTC2Z connectors and 2-boxes of Simpson Strong-Tie #8 x 1-1/4-in wafer-head screws
  • Attach shelves with #6 x 1-1/4-in bugle-head screws (sold separately)
  • Lumber is not included
  • Download Project Plans
  • Return Policy

Product Information

Internet # 314692503

Model # HD-CSHDSHLF19

Specifications

Dimensions: H 4.13 in, W 5.59 in, D 5.59 in

Dimensions

Product Depth (in.)

5.59 in

Product Height (in.)

4.13 in

Product Width (in.)

5.59 in

Details

Connector Finish

G185 Galvanized

Fasteners Included

Fasteners Included

Features

No Additional Features

Gauge

18

Material

Steel

Number of Pieces

18

Package Quantity

18

Product Weight (lb.)

10.16 lb

Returnable

90-Day

Type

Other

Warranty / Certifications

Manufacturer Warranty

Limited Warranty

Questions & Answers

What is the difference between buying this bundle versus getting two WBSK kits? This seems the same but costs quite a bit more.
ByMay 21, 2024
1 Answer |
Answer This Question

Hello tbt10f This is Ricardo from Simpson Strong-Tie. Thank you for reaching out. In reference to your question concerning the difference between WBSK & bundle. The only difference is that the WBSK Kit is a packaged deal that also comes with printed shelving/bench plans, but they can purchase it all separately if they'd like. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.

By|May 26, 2024
    0/0

    (1)

    What is the length?
    ByJul 31, 2023
    1 Answer |
    Answer This Question

    Hello Patrick, I am Colin with Simpson Strong-Tie. I do not quite understand your question, but I believe you want to know is how wide (or long) you can make a shelving unit. Inside the kit (part # WBSK) is a set of instructions on how to build a workbench or a two-shelf unit. The 4-shelf unit photo on the Home Depot site would require two WBSK kits. Typically, the shelves are nominal 24"x48" cut from full sheets of 5/8"x4x8 plywood. For more information go to strongtie.com/diy , scroll down to DIY Shelving Unit and watch the You Tube video. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.​​

    By|Aug 1, 2023
      0/0


      Will totes with lids fit on the shelf?
      ByJun 7, 2023
      1 Answer |
      Answer This Question

      ​Hi Megan, this is Colin from Simpson Strong-Tie. Ultimately it will depend on the size of the tote. The clearance from shelf bottom to the bottom of the shelf rail is 17 5/8". If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.

      By|Jun 7, 2023
        0/0


        Would these brackets allow a 6ft span to hold 1000lbs per shelf?
        ByApr 30, 2023
        1 Answer |
        Answer This Question

        ​Hi Heyderekp, this is McKenzie from Simpson Strongtie. thank you for your message. We want to make sure we address your question. Please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you. Thanks.

        By|Jun 17, 2023
          0/0

          (1)

          What is the height between each shelf. I am trying to figure out what size bins will fit on lower shelves. Thank you
          ByDec 24, 2022
          1 Answer |
          Answer This Question

          Hello BradleyBradlee, this is Stacy with Simpson Strong-Tie. According to the installations instruction I see the height between each shelf is 17 5/8". However, you can change this dimension if needed. If you wish to discuss this further please call us at (800) 999-5099. We look forward to speaking with you.

          By|Dec 27, 2022
            0/0


            Specifications make no sense. What is the height, length and depth in total inches please.
            BySep 13, 2022
            1 Answer |
            Answer This Question

            Hello Paxton321, this is Ricardo with the Simpson Strong-Tie Company. The Height is 72", the Width is 48", and the Depth is 24". These dimensions should be stated on the plans. Each kit should come with the plans in the box, but, I believe there is a link on the Home Depot website to download them as well. If you have any other questions, feel free to contact us at 800-999-5099. Hope you have a great day.

            By|Sep 28, 2024
              0/0

              (3)

              Can these handle shelves 8 feet by 3 feet as long as the weight doesn?t exceed 300 pounds per bracket (1,200 pounds per shelf)?
              ByMay 3, 2022
              1 Answer |
              Answer This Question

              Hello oldlady, this is McKenzie with Simpson Strong-Tie. Each RTC2Z bracket installed with the included SD #8 x 1.25" screws resists 300 lbs. of download, so your assumption is correct. An 8 foot span may require bracing mid beam to prevent bowing since most of your load will be more centered. Good luck with your project.

              By|May 17, 2023
                0/0

                (2)

                How much weight do these brackets support each?
                ByJan 8, 2022
                1 Answer |
                Answer This Question

                Good morning Steve. Thank you for reaching out; this is McKenzie with Simpson Strong-Tie. The RTC2Z installed with the supplied SD#8 x 1 1/4" screws into DF/SP lumber will have a floor load of 300 and a roof load of 375.

                By|May 17, 2023
                  0/0

                  (3)

                  Viewing 1-8 of 8

                  Customer Reviews

                  4.5 out of 5

                  • 4.5 out of 9 reviews
                  • 100% recommend this product
                  Filter by:
                  Showing 1-9 of 9 reviews
                  Simple design and assembly
                  I assembled the shelves in a 2ftx8ft configuration. Unfortunately, the project plans don't illustrate the mid-beam bracing suggested for an 8ft span. I added a third 2inx4inx96in board parallel with each shelf on center attached at each end rail using the Simpson Strong-Tie PF 18-Gauge Galvanized Post Frame Hanger and six screws. An Impact Driver frequently broke off heads of the Simpson Strong-Tie #6 wafer head screws but using a drill on a low speed didn't. As built material cost = $233.27.
                  by
                    • Recommended
                    1 found this review helpful
                    This customer chose to rate the product and not provide text.
                    by
                    • Verified Purchase
                    The product is pretty good for lighter weight shelving but it also provides a good base for reiforcing this shelving into a heavy duty unit.
                    by
                    • Verified Purchase
                    Better buy doing it this way instead of buying individual pieces.
                    by
                    • Verified Purchase
                    This customer chose to rate the product and not provide text.
                    by
                    • Verified Purchase
                    They did the job, but not as strong as ones...
                    They did the job, but not as strong as ones I purchased 10 years ago.
                    by
                    • Verified Purchase
                    Functional and strong
                    Made a shelving unit using a basic plan I found online. Shelving is strong and looks decent. Plan on using these to make more shelving for the pantry. Recommend using clamps and clamping squares to make sure everything is tight and level.
                    by
                      • Recommended
                      Missing 3 strong tie connectors...
                      Missing 3 strong tie connectors
                      by
                      Response from Simpson Strong-TieJul 6, 2022
                      Hi MARKAY, this is Colin from Simpson Strong-Tie. Thank you for your feedback. We’re sorry to see our Shelving Unit Hardware kit is missing a few of the connectors. We value our customers and are committed to providing exceptional products and service. To see how we can best resolve any problems, please reach out to our Customer Service team by calling 800-999-5099.​ Thank you SimpsonStrongTie
                      • Verified Purchase
                      Product is good quality, instructions not included, but downloadable from...
                      Product is good quality, instructions not included, but downloadable from website. Finished product is sturdy.
                      by
                        5 found this review helpful
