GA 3-1/4 in. 18-Gauge Galvanized Gusset Angle

$113
  • Global leader in structural construction products since 1956
  • Products designed and tested for strength and easy installation
  • Diverse product line trusted by Pros and DIYers alike
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret

Product Details

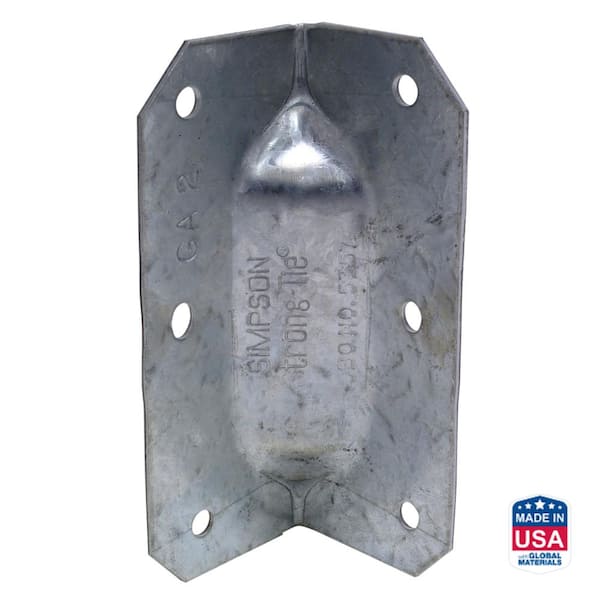

The GA angle is a small, versatile angle designed to improve corner stability. The engineered and tested gusset in the angle increases strength for lateral and uplift loads. The GA installs easily with nails, or for increased loads, with Strong-Drive Connector screws.
  • Small flanges allow for installation on narrow face of 2x member
  • Ideal for reinforcing 90-degree angle connections
  • Stronger than angled nailing or screw fastening
  • Ideal for miscellaneous building and repair projects
  • Help ensure joints are consistently straight and strong
  • Made from 18-Gauge steel
  • Galvanized (G90) for extra corrosion resistance
  • Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws
  • Shop all Simpson Strong-Tie here.
  • Return Policy
caret

Specifications

Dimensions: H 3.25 in, W 1.25 in, D 1.25 in

Dimensions

Product Depth (in.)1.25 inProduct Height (in.)3.25 in
Product Width (in.)1.25 in

Details

Connector FinishG90 GalvanizedFasteners IncludedFasteners Not Included
FeaturesNo Additional FeaturesGauge18
MaterialSteelNumber of Pieces1
Package Quantity1Product Weight (lb.)0.1 lb
Returnable90-DayTypeOther

Warranty / Certifications

Manufacturer WarrantyLimited Warranty
caret

Questions & Answers

9Questions
caret
Q:Can I mount these with quarter inch diameter bolts
by|Nov 6, 2023
1 Answer
Answer This Question

A:  Hi Oldsailor65, thank you for your message. This is Ricardo with Simpson Strong-Tie. The only fastener options for this connector are 0.148 x 1-1/2 or SD9112. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you

by|Nov 7, 2023
    caret
    Q:what size wood lag bolts can i use with these? thank you
    by|Jun 29, 2020
    2 Answers
    Answer This Question

    A:  I used #10 wood screws for mine.

    by|Dec 13, 2020

      A:  I use Simpson #9 x 1-1/2" SD Connector Screws. They are galvanized and exterior grade. They can usually be found in the store immediately adjacent to the gusset angles.

      by|Sep 23, 2023
      3 found this answer helpful
      caret
      Q:Can i use these for an outdoor chaise seat?
      by|May 25, 2020
      2 Answers
      Answer This Question

      A:  If you intend to use this to create a floating seat then no, it will not work. If you want to use this to support the seat so it is "hanging" on the connector then, yes it will work. The strength really comes down to the screws in this case and if they havea good "bite" in the lumber.

      by|May 27, 2020

      A:  It should carry the loads without any problem. Would recommend a deck-type screw or wood screw; not a drywall screw.

      by|Feb 21, 2023
        caret
        Q:what size holes are in these?
        by|May 19, 2020
        2 Answers
        Answer This Question

        A:  Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws

        by|May 7, 2023
        2 found this answer helpful

        A:  I used Simpson 10d 1-1/2" hot-dip galvanized deck nails without any problems

        by|Jan 14, 2021
          Showing 1-4 of 9
          caret

          Customer Reviews

          4.7 out of 5
          (101)
          • 4.7
            out of 101 reviews
          • 94% recommend this product
          Filter by:
          Showing 1-10 of 101 reviews
          I used this brace to secure my fence gate post...
          I used this brace to secure my fence gate post to the house brick so it wouldn't wobble when the gate was closed onto it and also provided me a barrier from any termite creep possibility.
          by
          • Verified Purchase
          These gussets worked very well as planned building a small pantry. Very easy to install using Si...
          These gussets worked very well as planned building a small pantry. Very easy to install using Simpson deck nails on the side supports. Design of the gusset makes it structurally sound to carry the loads. They've been in use for a few weeks now and show no sign of failure or even deflection. Packaging and pick up at the lockers was convenient. Will definitely buy again as needed.
          by
            • Recommended
            Worked perfectly! Added strength and rigidity to the corners of my mobile chicken tractors withou...
            Worked perfectly! Added strength and rigidity to the corners of my mobile chicken tractors without adding much weight. I would highly recommend!
            by
            • Verified Purchase
            • Recommended
            by
              by
                by
                  Good dependable and durable product used in deck project.
                  by
                    by
                      by
                      • Verified Purchase
                      by
                      • Verified Purchase
