Internet #204842329

Model #HTT4

Store SO SKU #592854

HTT 12-3/8 in. 11-Gauge Galvanized Heavy Tension Tie

  • Galvanized steel construction is rust and corrosion-resistant
  • Can be used in both the vertical and horizontal applications
  • Sized at 2-1/2 in. W x 12-3/8 in. L to prevent deflection
  • See More Details

Frequently Bought Together

+
+
Price:
$1660

Product Overview

Tension ties offer a solution for resisting tension loads that is fastened with nails. The HTT4 and HTT5 are the latest generation of tension ties. They feature an optimized nailing pattern which results in better performance with less deflection. Designed to meet new code standards, these tension ties offer higher loads than their predecessors.
  • For use in vertical and horizontal applications
  • Width: 2-1/2 in.
  • Length: 12-3/8 in.
  • Made from 11-gauge steel
  • Galvanized (G90) for extra corrosion resistance

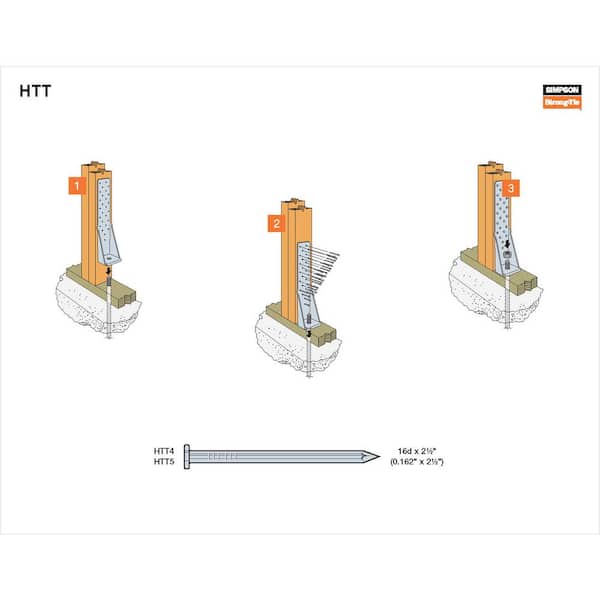

  • Install with 5/8 in. anchor bolt and 10d x 1-1/2 in. nails, 16d x 2-1/2 in. nails or #10 x 1-1/2 in. Strong-Drive® SD screws
  • Shop all Simpson Strong-Tie here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
1.3125
Product Length (in.)
12.375
Product Width (in.)
2.5 in

Details

Color Family
Silver
Connector Finish
G90 Galvanized
Connector recommendation
Tie
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
0
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
1.85
Returnable
180-Day
Staggered Nail Pattern
Not Staggered
Strap Type
Tie

Warranty / Certifications

Manufacturer Warranty
Limited Warranty

Questions & Answers

2Questions1Answers

will this help a knee wall from being loose or having the wobble from side to side?

Asked by Greengrass January 7, 2020
1
Answer

The HTT Tension Tie is only rated for straight tension loads, not rotation (moment) loads. You may want to see the MPBZ Moment Post Base which is specifically designed to provide moment resistance for columns or posts. Thank you!

Is this a store stock item

Asked by Rick April 27, 2017
0
Answers

Customer Reviews

  • 6 Customer Reviews
  • 5 out of 5 stars overall
100% of customers recommended.
Overall Ratings
5star-icon(6)
4star-icon(0)
3star-icon(0)
2star-icon(0)
1star-icon(0)
Sort By:
Works good. Simpson technical bulletin with diagrams helps in visualize...
Works good. Simpson technical bulletin with diagrams helps in visualize proper use of product for code compliance.
Was this helpful?
0
0
Easy to install...
Easy to install
Was this helpful?
0
0
Excellent support documents available online from Simpson Strong-Tie. Great product....
Excellent support documents available online from Simpson Strong-Tie. Great product.
Was this helpful?
0
0
Product was what was called out on the print &...
Product was what was called out on the print & was easy to install. No complaints
Was this helpful?
0
0
5 Star Review
Rating provided by a verified purchaser
Was this helpful?
0
0
Great product
This is an easy to install tie down. It appears to be very strong.
Was this helpful?
0
0
