Simpson Strong-Tie

HTT 12-3/8 in. 11-Gauge Hot-Dip Galvanized Heavy Tension Tie

$ 28 51

Overview

Tension ties offer a solution for resisting tension loads that is fastened with nails. The HTT4 and HTT5 are the latest generation of tension ties. They feature an optimized nailing pattern which results in better performance with less deflection. Designed to meet new code standards, these tension ties offer higher loads than their predecessors.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

Tension ties offer a solution for resisting tension loads that is fastened with nails. The HTT4 and HTT5 are the latest generation of tension ties. They feature an optimized nailing pattern which results in better performance with less deflection. Designed to meet new code standards, these tension ties offer higher loads than their predecessors.
  • For use in vertical and horizontal applications
  • Width: 2-1/2 in.
  • Length: 12-3/8 in.
  • Made from 11-gauge steel
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

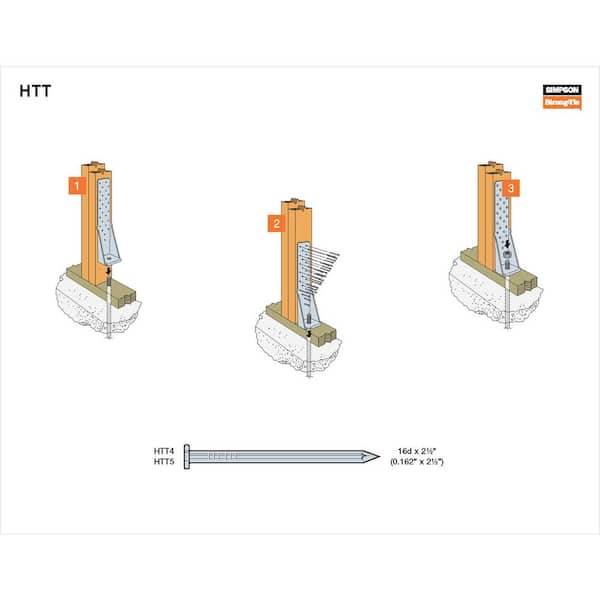

  • Install with 5/8 in. anchor bolt and 10d x 1-1/2 in. nails, 16d x 2-1/2 in. nails or #10 x 1-1/2 in. Strong-Drive® SD screws

Product Overview

Model #: HTT4HDG
Internet #: 205330071

Tension ties offer a solution for resisting tension loads that is fastened with nails. The HTT4 and HTT5 are the latest generation of tension ties. They feature an optimized nailing pattern which results in better performance with less deflection. Designed to meet new code standards, these tension ties offer higher loads than their predecessors.

  • For use in vertical and horizontal applications
  • Width: 2-1/2 in.
  • Length: 12-3/8 in.
  • Made from 11-gauge steel
  • Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 5/8 in. anchor bolt and 10d x 1-1/2 in. nails, 16d x 2-1/2 in. nails or #10 x 1-1/2 in. Strong-Drive® SD screws

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
2.5
Product Length (in.)
12.375
Product Width (in.)
2.53125 in

Details

Color Family
Silver
Connector Finish
Hot dip galvanized
Connector recommendation
Tie
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
0
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
1.87lb
Returnable
90-Day
Staggered Nail Pattern
Not Staggered
Strap Type
Tie

Warranty / Certifications

Manufacturer Warranty
Yes

Specifications

Dimensions

Product Depth (in.)
2.5
Product Length (in.)
12.375
Product Width (in.)
2.53125 in

Details

Color Family
Silver
Connector Finish
Hot dip galvanized
Connector recommendation
Tie
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
0
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
1.87lb
Returnable
90-Day
Staggered Nail Pattern
Not Staggered
Strap Type
Tie

Warranty / Certifications

Manufacturer Warranty
Yes

Questions & Answers

  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 126ms
  • QUESTIONS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Customer Reviews

HTT 12-3/8 in. 11-Gauge Hot-Dip Galvanized Heavy Tension Tie is rated 3.0 out of 5 by 1.
Rated 3 out of 5 by from Good quality. A bit too long. Used these to install 42" deck rail posts. The documentation was thorough with diagrams, except it doesn't mention that these don't work perpendicular to 12" OC joists. That's because this device is 13" long. This is obviously a noob mistake on my part, but I'd hope the detailed instructions would point this out. The manuals I'm referring to are T-GRDRLPST and L-C-GRDRLPST4215.
