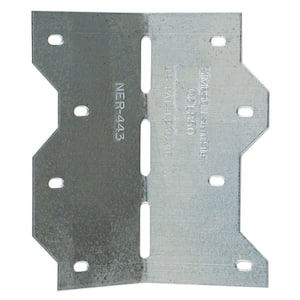

LS 3-3/8 in. 18-Gauge Adjustable L Angle

$268
  • Industry leader in structural hardware engineering since 1956
  • Products designed and tested for strength and easy installation
  • Diverse product line for DIY and residential
Store
0 in stock
Text to Me
caret

Product Details

The LS connector is a cost-effective method for connecting roof rafters to hip rafters. The durable design and fastening options of these load-rated skewable angles make them an ideal option compared to field-fabricated clip angles. The LS has well-defined fastener locations, and testing ensures that the tabulated load values account for connection eccentricities.
  • General utility-reinforcing angles with multiple uses
  • Field-adjustable angles from 0 to 135 degrees allow for attaching members intersecting at angles
  • Perfect angle series for many household repairs and DIY projects
  • Length: 3-3/8-in
  • Made from 18-gauge steel
  • Galvanized (G90) for extra corrosion resistance
  • Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws
  • Shop all Simpson Strong-Tie here.
  • Return Policy

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.
caret

Specifications

caret

Questions & Answers

5Questions
caret
Q:The catalog of this connector says the following: "Joist must be constrained against rotation (for example, with solid blocking) when using a single LS per connection". What does it mean to constrain rotation with solid blocking?
by|Oct 8, 2021
1 Answer
Answer This Question

A:  ​Hi Michael, thank you for your message. We want to make sure we address your question regarding LS Skewable Framing Angles. The notes regarding blocking are for single sided LS Angle installations to prevent the joists from rotating. Blocking refers to the use of wood members braced laterally between joists to stiffen them. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.​​ -Stacy

by|Oct 8, 2021
    caret
    Q:Are any tools needed to bend the angle, or can adjustment be made by hand?
    by|Apr 8, 2021
    1 Answer
    Answer This Question

    A:  No tools are need. The LS can be field bent by hand. Thank you!

    by|Apr 10, 2021
      caret
      Q:Can this be used to join 22.5 degree angles (45 degree open angle) in an octagonal shape?
      by|Jun 15, 2020
      2 Answers
      Answer This Question

      A:  they can be bent to any angle... I don't see why this wouldn't work for you...

      by|Jun 9, 2021

      A:  It would be up to the Designer/Engineer of Record to specify the appropriate connector for the specific application based on framing layout, demand loads, local building codes, etc., but the LS30 is field-adjustable for angles from 0° to 135° allowing for attachment of members intersecting at angles. Thank you!

      by|Jun 23, 2020
        caret
        Q:How can I adjust this to a small angle
        by|Sep 29, 2014
        1 Answer
        Answer This Question

        A:  The LS angles have slots along the bend line that allow for field bending (one time only) to the needed angle (0 degrees to 135 degrees). Thank you!

        by|Sep 30, 2014
