Simpson Strong-Tie

LS 4-7/8 in. 18-Gauge ZMAX® Galvanized Adjustable L Angle

  • Reinforces 90-degree connections; stronger than nails or screws
  • Removes the guesswork for making perfectly square connections
  • Perfect for new projects or repairs
$ 2 97
Buy 50 or more  $2.67
Loading Options
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

  • Reinforces 90-degree connections; stronger than nails or screws
  • Removes the guesswork for making perfectly square connections
  • Perfect for new projects or repairs
Not only do angles make joints stronger, they also provide more consistent, straight corners. Simpson Strong-Tie offers a wide variety of angles in various sizes and thicknesses to handle light-duty jobs or projects where a structural connection is needed. Some can be bent (skewed) to match the project. For outdoor projects or those where moisture is present, use our ZMAX zinc-coated connectors, which provide extra resistance against corrosion (look for a "Z" at the end of the model number).
  • Used to reinforce 90° connections
  • Staggered fastener pattern reduces the chances of wood splitting
  • Stronger than angled nailing or screw fastening
  • Field-adjustable 0° to 135° (bend one time only)
  • Cut-outs along the bend line make bending easier
  • Length: 4-7/8 in.
  • Made from 18-gauge steel
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive® SD screws

Product Overview

  • Reinforces 90-degree connections; stronger than nails or screws
  • Removes the guesswork for making perfectly square connections
  • Perfect for new projects or repairs
Model #: LS50Z
Sku #: 208397
Internet #: 100375312

Not only do angles make joints stronger, they also provide more consistent, straight corners. Simpson Strong-Tie offers a wide variety of angles in various sizes and thicknesses to handle light-duty jobs or projects where a structural connection is needed. Some can be bent (skewed) to match the project. For outdoor projects or those where moisture is present, use our ZMAX zinc-coated connectors, which provide extra resistance against corrosion (look for a "Z" at the end of the model number).

  • Used to reinforce 90° connections
  • Staggered fastener pattern reduces the chances of wood splitting
  • Stronger than angled nailing or screw fastening
  • Field-adjustable 0° to 135° (bend one time only)
  • Cut-outs along the bend line make bending easier
  • Length: 4-7/8 in.
  • Made from 18-gauge steel
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive® SD screws

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Key Features

Product Overview
Key Features
  • Reinforces 90-degree connections; stronger than nails or screws
  • Removes the guesswork for making perfectly square connections
  • Perfect for new projects or repairs
Not only do angles make joints stronger, they also provide more consistent, straight corners. Simpson Strong-Tie offers a wide variety of angles in various sizes and thicknesses to handle light-duty jobs or projects where a structural connection is needed. Some can be bent (skewed) to match the project. For outdoor projects or those where moisture is present, use our ZMAX zinc-coated connectors, which provide extra resistance against corrosion (look for a "Z" at the end of the model number).
  • Used to reinforce 90° connections
  • Staggered fastener pattern reduces the chances of wood splitting
  • Stronger than angled nailing or screw fastening
  • Field-adjustable 0° to 135° (bend one time only)
  • Cut-outs along the bend line make bending easier
  • Length: 4-7/8 in.
  • Made from 18-gauge steel
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive® SD screws

Product Overview

  • Reinforces 90-degree connections; stronger than nails or screws
  • Removes the guesswork for making perfectly square connections
  • Perfect for new projects or repairs
Model #: LS50Z
Sku #: 208397
Internet #: 100375312

Not only do angles make joints stronger, they also provide more consistent, straight corners. Simpson Strong-Tie offers a wide variety of angles in various sizes and thicknesses to handle light-duty jobs or projects where a structural connection is needed. Some can be bent (skewed) to match the project. For outdoor projects or those where moisture is present, use our ZMAX zinc-coated connectors, which provide extra resistance against corrosion (look for a "Z" at the end of the model number).

  • Used to reinforce 90° connections
  • Staggered fastener pattern reduces the chances of wood splitting
  • Stronger than angled nailing or screw fastening
  • Field-adjustable 0° to 135° (bend one time only)
  • Cut-outs along the bend line make bending easier
  • Length: 4-7/8 in.
  • Made from 18-gauge steel
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive® SD screws

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
1.25
Product Length (in.)
5
Product Width (in.)
3.25

Details

Brace type
Angle
Builders Hardware Product Type
Braces
Color
Silver
Color Family
Silver
Connector Finish
G185 Galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Material
Steel
Package Quantity
1
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Yes

Specifications

Dimensions

Product Depth (in.)
1.25
Product Length (in.)
5
Product Width (in.)
3.25

Details

Brace type
Angle
Builders Hardware Product Type
Braces
Color
Silver
Color Family
Silver
Connector Finish
G185 Galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Material
Steel
Package Quantity
1
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Yes

Questions & Answers

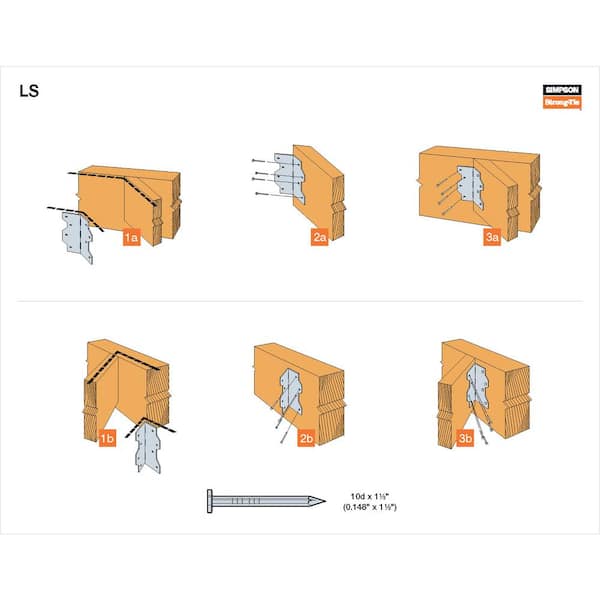

The installation guide shows parts (a) and (b) for each step. Is that an AND or is it an OR? That...

The installation guide shows parts (a) and (b) for each step. Is that an AND or is it an OR? That is, are these intended to only be installed in pairs or can you install just one on either side of the joist?
Asked by: Matt
One can be installed on one side of the joist or the other, but the joist must be constrained against rotation (for example, with solid blocking) when using a single LS per connection. It is up to the Designer/Engineer of Record to specify if one or a pair are necessary for the specific application. Thank you!
Answered by: SimpsonStrong-Tie
Date published: 2019-07-09

D0 you have this Simpson Strong-Tie Adjustable L-Angle for 2" x 4" instead of 2" x 6"

Model # LS50Z Internet # 100375312 Store SKU # 208397
Asked by: Ron
Ron, Please see the LS30Z attached, which has a height of 3 3/8". Thank you!
Answered by: SimpsonStrong-Tie
Date published: 2015-09-17
