LUS ZMAX Galvanized Face-Mount Joist Hanger for 2x4 Nominal Lumber

$1.24
Buy 30 or more $1.12 /unit
  • Global leader in structural construction products since 1956
  • Products designed and tested for strength and easy installation
  • Diverse product line trusted by Pros and DIYers alike
  • View More Details
Store
0 in stock
caret

Product Details

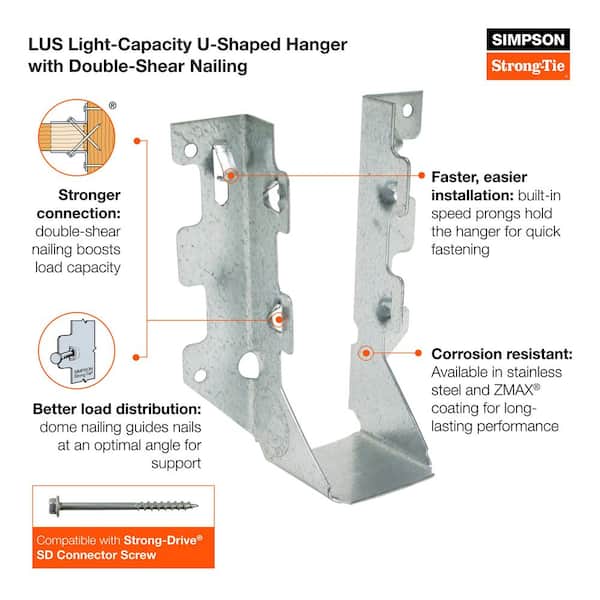

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LUS joist hangers provide a connection between a joist and header.
  • Patented double-shear nailing design provides greater strength with fewer nails
  • Speed prongs for fast and easy installation
  • Angled joist nailing easier in tight spaces
  • Do not bend or remove tabs
  • Nominal joist size: 2x4
  • Made from 18-Gauge steel
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 10d common nails or #9 x 2-1/2 in. Strong-Drive SD screws
  • Shop all Simpson Strong-Tie here.
  • Return Policy
caret

Specifications

caret

Questions & Answers

139Questions
caret
Q:Can these be attached to an LVL header, and can I use the same 10d 3" galvanized nails?
by|Sep 5, 2023
1 Answer
Answer This Question

A:  Hello KenAnd, LUS Light-Capacity U-Shaped Hanger with Double-Shear Nailing can be used with LVL headers and do use the full .148" x 3" long nails for the full loading. Shorter nails can be used with reductions if your header is not thick enough for the 3" nails. Please contact the Simpson Strong-Tie Customer Service team for more support at 800-999-5099. We look forward to hearing from you. -Stacy

by|Sep 5, 2023
    caret
    Q:How Can I remove a LUS ZMAX Galvanized Face-Mount Joist Hanger for 2�4 Nominal Lumber From a wooden ribbon that is fastened with nails
    by|Aug 22, 2023
    1 Answer
    Answer This Question

    A:  Picture, this McKenzie from Simpson Strongtie. We would like to address your question about the joist hangers. To better assist you please reach out to our Customer Service Team at 800-999-5099. Thanks.

    by|Aug 22, 2023
      caret
      Q:Why does Simpson recommend not mixing screws and nails in the same joist hanger? For example using the SD screws to mount the hanger and hot dipped galvanized nails to toe nail the joist to the header.
      by|Aug 13, 2023
      1 Answer
      Answer This Question

      A:  Hello JoeD, this is Ricardo with Simpson. Because our products are tested and contain published load values, it would not be possible to give accurate value with mixed fasteners. Nails and screws have different withdrawal and shear capacities and they bend differently when a load is applied to them. For this reason we do not recommend it. If you have any questions, please contact us at (800)999-5099.

      by|Aug 16, 2023
        caret
        Q:How many LUS ZMAX Galvanized Face-Mount Joist Hangers for 2x8 Nominal will Lumber be needed for a 15x15 ground-level deck? The total area is 225 sq. ft.
        by|Jun 12, 2023
        1 Answer
        Answer This Question

        A:  Hello, this is Stacy with Simpson Strong-Tie. We want to make sure your question is answered however we cannot tell you how many hangers you need for your deck. We do offer a free software on our website called Deck Planner Software. You may design your deck on this software to the parameters needed and then print out the materials list needed for the deck that was designed. If you wish to discuss this further please call us at (800) 999-5099. We look forward to speaking with you.

        by|Jun 12, 2023
