Internet #100375105

Model # LUS26Z

Store SKU #865827

Store SO SKU #592854

0044315734403

LUS ZMAX Galvanized Face-Mount Joist Hanger for 2x6 Nominal Lumber

  • Provides support underneath the joist, rafter or beam
  • Double-shear design ensures a strong, durable connection
  • Designed for greater strength with fewer fasteners to install
93 ¢
Buy 100 or more  84 ¢
Loading Options

Frequently Bought Together

Frequently Bought Together

Product Overview

Deck Glamour Photo

Deck It Out

Strong decks bring beauty and entertaining space to your outdoor living area

Deck Glamour Photo

Make Your Deck Beautiful and Safe

Building a safe, strong deck starts with the proper connectors and fasteners

Photo of a deck being built

Deck Building Tips and Tricks

Installing corrosion-resistant connectors and fasteners helps extend the life of your deck

SDWH Screw being installed into ledger

Ledger connections critical for deck safety

Strong-Drive® SDWH Timber-Hex HDG screw delivers high-strength, wood-to-wood connectivity, such as deck ledger applications

DTT2Z guardrail install

Guardrail Installation Tips and Tricks

Don’t take chances with guardrail connections. DTT2Z deck tension ties fasten guardrails to deck framing.

DTT1Z install

Securing the Deck to the House

Install DTT1Z as a tension tie to meet building codes and eliminate the need to access to the floor joists inside the home

LSCZ install

Take the Step to Secure Deck Stairs

LSCZ adjustable stair-stringer connector offers a concealed connection between the stair stringer and the carrying header or rim board

Tight LUS26Z install shot

Joist Hangers

Provides bearing and uplift resistance

Tight H1 install shot

Hurricane Ties

Ideal for preventing lateral movement of joists

Tight SD screw install photo

SD Connector Screw

The only screw approved with Simpson Strong-Tie connectors

Tight install shot of LCEZ4

Post Caps

LCEZ end post caps provide a post-to-beam connection in new or retrofit deck applications

Tight PBSZ install photo

Post Base

Features a 1 in. standoff to resist wood decay

Stainless-steel connector product shot

Prevent Corrosion

Deck-Drive DWP stainless-steel fasteners are recommended for higher-exposure environments or applications

  • Provides support underneath the joist, rafter or beam
  • Double-shear design ensures a strong, durable connection
  • Designed for greater strength with fewer fasteners to install

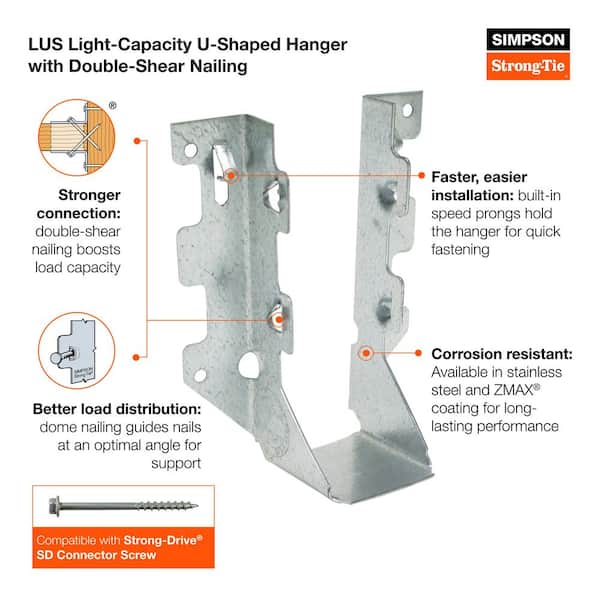

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LUS joist hangers provide a connection between a joist and header.
  • Patented double-shear nailing design provides greater strength with fewer nails
  • Speed prongs for fast and easy installation
  • Angled joist nailing easier in tight spaces
  • Do not bend or remove tabs
  • Nominal joist size: 2x6 and 2x8
  • Made from 18-Gauge steel
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 10d common nails or #9 x 2-1/2 in. Strong-Drive SD screws
  • Shop all Simpson Strong-Tie here.

Product Overview

  • Provides support underneath the joist, rafter or beam
  • Double-shear design ensures a strong, durable connection
  • Designed for greater strength with fewer fasteners to install
Model #: LUS26Z
Sku #: 865827
Internet #: 100375105

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LUS joist hangers provide a connection between a joist and header.

  • Patented double-shear nailing design provides greater strength with fewer nails
  • Speed prongs for fast and easy installation
  • Angled joist nailing easier in tight spaces
  • Do not bend or remove tabs
  • Nominal joist size: 2x6 and 2x8
  • Made from 18-Gauge steel
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 10d common nails or #9 x 2-1/2 in. Strong-Drive SD screws
  • Shop all Simpson Strong-Tie here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Joist Hanger Size
2x6
Product Depth (in.)
4.75
Product Height (in.)
2
Product Width (in.)
3.563 in

Details

Connector Finish
G185 Galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
18
Hanger Flange Type
Face Mount Flange
Hanger Modifications
None
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
0.268lb
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Yes

Specifications

Dimensions

Joist Hanger Size
2x6
Product Depth (in.)
4.75
Product Height (in.)
2
Product Width (in.)
3.563 in

Details

Connector Finish
G185 Galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
18
Hanger Flange Type
Face Mount Flange
Hanger Modifications
None
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
0.268lb
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Yes

Questions & Answers

how does it connect to the joist.

there are 2 slots on each side that angle toward the beam. what am I missing?
Asked by: WILLIAM
https://www.familyhandyman.com/decks/building-a-deck/how-to-install-joist-hangers/ has pictures and additional information
Answered by: Nick
Date published: 2020-05-17

Can these be used with treated lunber

Asked by: Rd
yes any lumber that is used for floor joists inside and outside treated lumber
Answered by: Richardklop
Date published: 2020-04-15

2 Questions 1) Will I be able to use this on old wood joists? Some of my joists are 2" or 2.25" o...

2 Questions 1) Will I be able to use this on old wood joists? Some of my joists are 2" or 2.25" or 2.5" and not the nominal 1.5" that we find in 2bys today. 2) Will 2" 10d Common nails work on these?
Asked by: Brian
Simpson makes hangers for rough sawn wood which may work for you. They are bigger.
Answered by: seawayne
Date published: 2020-09-07

do you have to use nails or can you use screws?

do you have to use nails or can you use screws?
Asked by: Mark
You can use either screws or nails. Just make sure you use 3" or longer screws for the diagonals. Check out the Simpson screws, too.
Answered by: Jeff
Date published: 2018-03-01
