LUS ZMAX Galvanized Face-Mount Joist Hanger for 2x8 Nominal Lumber

$2.07
Buy 40 or more $1.86
  • Industry leader in structural hardware engineering since 1956
  • Products designed and tested for strength and easy installation
  • Diverse product line for DIY and residential
  • View More Details
Store
0 in stock
caret

Product Details

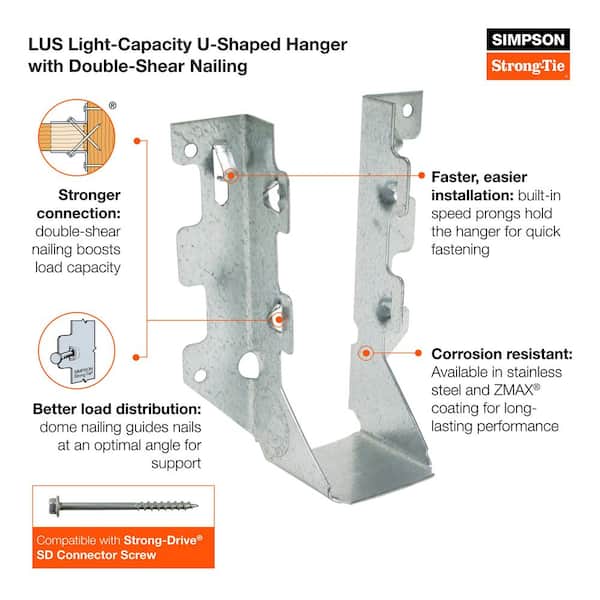

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LUS joist hangers provide a connection between a joist and header.
  • Patented double-shear nailing design provides greater strength with fewer nails
  • Speed prongs for fast and easy installation
  • Angled joist nailing easier in tight spaces
  • Do not bend or remove tabs
  • Nominal joist size: 2x8 and 2x10
  • Made from 18-Gauge steel
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
  • Install with 10d common nails or #9 x 2-1/2 in. Strong-Drive SD screws
  • Shop all Simpson Strong-Tie here.
  • Return Policy
caret

Specifications

caret

Questions & Answers

135Questions
caret
Q:What nail to use for interior roof joist.
by|May 28, 2023
0 Answer
Answer This Question
caret
Q:Can I use these for my 2x8s or do they make bigger ones
by|May 13, 2023
1 Answer
Answer This Question

A:  Hi Kimm, thank you for your message. We want to make sure we address your question regarding LUS Light-Capacity U-Shaped Hanger with Double-Shear Nailing . The LUS26 is tall enough to use for a 2x8 joist hanger, we also do do make a LUS28 which can be used. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you. -Stacy

by|May 15, 2023
    caret
    Q:What tie do I need for 5 step stringer
    by|May 11, 2023
    1 Answer
    Answer This Question

    A:  Hello Bill, my name is Colin with Simpson Strong-Tie. I suggest you review our Adjustable Stringer Connectors LSCZ or the Adjustable Face Mount Hangers LRUZ. On our website strongtie.com enter LSC or LRU in the Search Strogtie.com field to see more information including installation, fasteners, and allowable load values. I do not recommend using the LUS26Z face mount hanger to support a sloping stair stringer. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.

    by|May 11, 2023
      caret
      Q:how big are the mounting holes where the joist meets the concrete
      by|May 9, 2023
      1 Answer
      Answer This Question

      A:  Hello Marine1955, I am Colin with Simpson Strong-Tie. The holes in the out bound flanges of the LUS26Z hanger are 0.171" diameter designed to receive the tested 0.148"x3" (10d) nails. The LUS26Z should not be used to attach a wood joist to a concrete surface. If this is your application open our home page strongtie.com, scroll down to the New Wood Construction Connector Catalog. Open the electronic catalog and scroll down to pages 243-245 for face mount hangers that can be installed onto a concrete surface. You may want to review this information with a design professional. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.​​

      by|May 9, 2023
