LUS ZMAX Galvanized Face-Mount Joist Hanger for Double 2x6 Nominal Lumber

$448
  • Industry leader in structural hardware engineering since 1956
  • Products designed and tested for strength and easy installation
  • Diverse product line for DIY and residential
Store
0 in stock
Text to Me
caret

Product Details

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LUS joist hangers provide a connection between a joist and header.
  • Patented double-shear nailing design provides greater strength with fewer nails
  • Speed prongs for fast and easy installation
  • Angled joist nailing easier in tight spaces
  • Do not bend or remove tabs
  • Nominal joist size: Double 2x6 and Double 2x8
  • Made from 18-Gauge steel
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

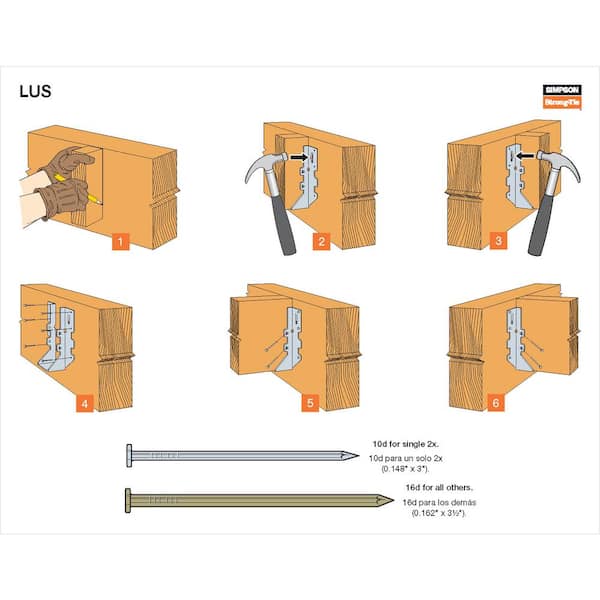

  • Install with 16d common nails or #10 x 2-1/2 in. Strong-Drive SD screws
  • Shop all Simpson Strong-Tie here.
  • Return Policy

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.
caret

Specifications

caret

Questions & Answers

128Questions
caret
Q:Im using a single 2x6 header with 2x6 joists. Are the #9x 2 1/2 screws through the toenail holes on 2x6 hangers going to be too long?
by|Feb 1, 2023
1 Answer
Answer This Question

A:  Hi Roger, this is Ricardo with Simpson Strong-Tie. We value your time and would like to look into your concerns with the #9 X 2 1/2" screws in connection to our LUS hanger. Our Customer Service team is available to talk with you directly and take you through a step-by-step solution. Please call us at 800-999-5099. We look forward to hearing from you.​

by|Feb 2, 2023
    caret
    Q:Can Simpson #9 x 1-1/2 SD Screws be used instead of 10d nails in the (4) angled 'joist to hanger' connection holes in a LUS ZMAX 2 x 10 Face-Mount Joist Hanger?
    by|Dec 30, 2022
    3 Answers
    Answer This Question

    A:  I believe it will work. #9 screws are thin enough for the 10d holes.   Depending on your building codes and if your project is inspected, I’d confirm with a local builder.  There should be several around the lumber dept at HD who will give you a straight answer.

    by|Jan 5, 2023

      A:  Hello Mike, this is Ricardo. The 1 1/2" screw does not allow for full penetration through the joist and into the header and therefore will not satisfy the requirements for the shear nailing aspects of the hanger. We would suggest to use the #9 x 2 1/2" SD screw instead. The load values that are associated with the SD Connector Screw can be found on our website at this link. https://www.strongtie.com/facemounthangersssl_solidsawnlumberconnector/lus_hanger/p/lus If you have any questions, please reach out to our Technical Support team at (800)999-5099. Hope you have a great day.

      by|Jan 5, 2023

        A:  Go to the Simpson Strong website. They publish all of the spécifications for their hardware to meet code, including choice of SS fasteners, Do not rely upon 3rd party information.

        by|Jan 3, 2023
          caret
          Q:What the difference between the Simpson ....LUS48Z vs LUS28-2Z ? Thanks in advance...
          by|Dec 7, 2022
          1 Answer
          Answer This Question

          A:  ​Hi Daniel, thank you for your message. This is Ricardo with Simpson Strong-Tie. The LUS48Z is for a nominal 4x8 lumber while the LUS28-2Z is for nominal double 2x8 joist. If you need more information or have additional questions, please contact the Simpson Strong-Tie Customer Service team at 800-999-5099. We look forward to hearing from you.

          by|Dec 8, 2022
            caret
            Q:Should 1.5 inch 10d nails installed to deck ledger be removed and replaced by 3 inch nails (or 2.5 inch SD connector screws) while keeping 3 inch nails at double shear location of LUS210Z as is? Can we mix and match nails and screws?
            by|Nov 30, 2022
            1 Answer
            Answer This Question

            A:  Hello Newbie2this, this is Stacy with Simpson Strong-Tie. We would not recommend mixing nails and screws. Generally for a 2x ledger we would recommend using 1.5" nails or screws into the ledger. For example, if you were to only use SD screws then (8) SD #9 x 1 1/2" into the ledger and (4) SD #9 x 2 1/2" screws would be used into the joist. If you have any questions please call us at (800) 999-5099. we look forward to speaking with you.

            by|Dec 1, 2022
              Showing 1-4 of 128
              caret

              Customer Reviews

              4.7 out of 5
              (822)
              • 4.7
                out of 822 reviews
              • 98%recommend this product
              Filter by:
              Showing 1-10 of 822 reviews
              Affordable and Sturdy
              Bought it while planning to buil a riser for my theater. Because of the load and type of lumber I was using, I made the right choice. They are sturdy, strong, durable and the opposite flush face has pointy shape that can stick into the wood and two other holes to permanently hold the hoizontal lumber.
              by
                • Recommended
                These hangers were used for my porch and they were very easy to use. The tabs are nice as they ar...
                These hangers were used for my porch and they were very easy to use. The tabs are nice as they are used to hold the piece into place. Just make sure to align everything and it works as intended. Its been 3 years since my deck install and it still holds steady.
                by
                  • Recommended
                  life saving hanger
                  Used these hangers last week to build a handicapp ramp for my mother n law who had a hip replacement. These are great and east to install. Mother n law happp and payment for job was my favorite meal, meatloaf
                  by
                    • Recommended
                    2 found this review helpful
                    These were easy to install and work perfect for decks.
                    These were easy to install and work perfect for decks.
                    by
                    • Verified Purchase
                    • Recommended
                    My porch broke in a section and so after inspecting i saw the problem was not just in one spot bu...
                    My porch broke in a section and so after inspecting i saw the problem was not just in one spot but growing all over. If I had not gotten this product and fixed the problem, My entire porch would have completely collapsed - it would not have made it through this summer, and definitely not the winter. A complete Porch Replacement would have cost probably 15-20k. After installing about 35 of these hangers, i predict the life of my porch just got extended to another 10 years. Thanks You Home Depot. Respectfully Steven Bonacorsi, Londonderry New Hampshire
                    by
                    • Verified Purchase
                    • Recommended
                    Works Great
                    Works Great
                    by
                    • Verified Purchase
                    • Recommended
                    Good product for the price ...
                    Good product for the price
                    by
                    • Verified Purchase
                    1 found this review helpful
                    Just finished redoing the dock deck and it needed new joist hangers. Easy to use and super strong...
                    Just finished redoing the dock deck and it needed new joist hangers. Easy to use and super strong for the job and they last a long time. We also use these for all of the Veteran Home Repair projects we do thanks to the generosity of the Home Depot Foundation.
                    by
                    • DIY
                    • Verified Purchase
                    • Recommended
                    1 found this review helpful
                    They work great! Thanks Home Depot
                    They work great! Thanks Home Depot
                    by
                    • Verified Purchase
                    • Recommended
                    Did the job look good. Will hold strong...
                    Did the job look good. Will hold strong
                    by
                    • Verified Purchase
