Model # OHT

Internet #204842402

0044315774003

Simpson Strong-Tie

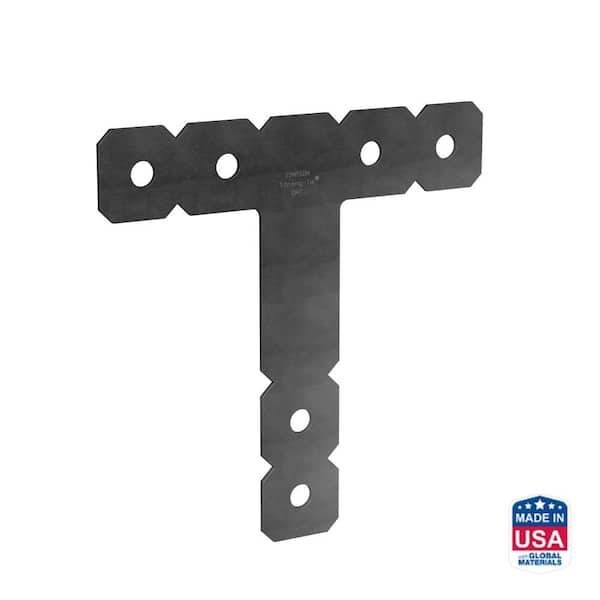

OHT 12 in. x 12 in. Black Powder-Coated Ornamental Heavy T Strap

$ 38 02

Overview

The Decorative Hardware line consists of aesthetically pleasing, pre-finished connectors and innovative concealed joist ties designed for exposed wood applications. These connectors provide structural performance and add a unique appearance feature to a project. Pre-engineered and tested, these load rated products are verified to perform to design loads, unlike custom designed and fabricated connectors. The OHT is a notched, beam-to-column tie that provides transfer tension loads.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

The Decorative Hardware line consists of aesthetically pleasing, pre-finished connectors and innovative concealed joist ties designed for exposed wood applications. These connectors provide structural performance and add a unique appearance feature to a project. Pre-engineered and tested, these load rated products are verified to perform to design loads, unlike custom designed and fabricated connectors. The OHT is a notched, beam-to-column tie that provides transfer tension loads.
  • From the "Rustic Collection"

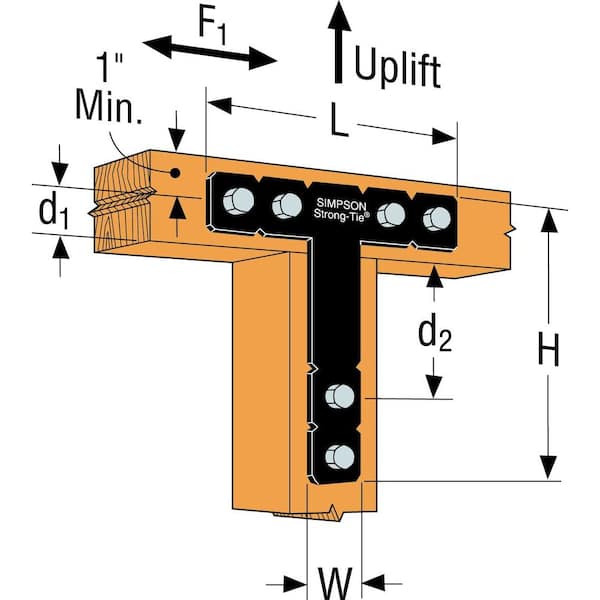

  • OHT must be installed in pairs with machine bolts in double-shear; a single part with machine bolts in single shear is not load rated
  • Size: 12 in. x 12 in.
  • Made from 7-gauge steel
  • Black powder-coat finish for a decorative look
  • Install with 5/8 in. diameter machine bolts

Product Overview

Model #: OHT
Internet #: 204842402

The Decorative Hardware line consists of aesthetically pleasing, pre-finished connectors and innovative concealed joist ties designed for exposed wood applications. These connectors provide structural performance and add a unique appearance feature to a project. Pre-engineered and tested, these load rated products are verified to perform to design loads, unlike custom designed and fabricated connectors. The OHT is a notched, beam-to-column tie that provides transfer tension loads.

  • From the "Rustic Collection"
  • OHT must be installed in pairs with machine bolts in double-shear; a single part with machine bolts in single shear is not load rated
  • Size: 12 in. x 12 in.
  • Made from 7-gauge steel
  • Black powder-coat finish for a decorative look
  • Install with 5/8 in. diameter machine bolts

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
0.171
Product Length (in.)
12
Product Width (in.)
12 in

Details

Color Family
Black
Connector Finish
Powder coated
Connector recommendation
Tie
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
7
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
2.65lb
Returnable
90-Day
Staggered Nail Pattern
Not Staggered
Strap Type
Tie

Warranty / Certifications

Manufacturer Warranty
Yes

Specifications

Dimensions

Product Depth (in.)
0.171
Product Length (in.)
12
Product Width (in.)
12 in

Details

Color Family
Black
Connector Finish
Powder coated
Connector recommendation
Tie
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
7
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
2.65lb
Returnable
90-Day
Staggered Nail Pattern
Not Staggered
Strap Type
Tie

Warranty / Certifications

Manufacturer Warranty
Yes

Questions & Answers

What is the bolt size the holes are fitted to on this product?

Perhaps 5/8" or 1/2"? It really should be in the description....
Asked by: Paul
The OHT installs with 5/8" diameter anchor bolts (please refer to the Product Overview section). Thank you!
Answered by: SimpsonStrong-Tie
Date published: 2015-09-20
