Outdoor Accents Avant Collection ZMAX, Black Powder-Coated 90-degree Angle for 4x Lumber

  • Clean, simple lines enhance the beauty of outdoor living spaces
  • Strengthen your outdoor living structure with decorative hardware
  • Installs easily for a variety of indoor or outdoor projects
  • See More Details

Frequently Bought Together

+
+
Price:
$413

Product Overview

The Simpson Strong-Tie Outdoor Accents line of decorative hardware features connectors and fasteners that bring beauty and strength to custom outdoor living structures. The Avant Collection features straight edges and chamfered corners for a clean, timeless design. The APVA angle makes structural connections between beams and posts more visually appealing. These 90° angles make connections stronger and provide consistent, straight corners for a variety of outdoor projects.
  • Avant collection features straight edges and chamfered corners for a clean, timeless design
  • Stronger than angled nailing or screw fastening alone for outdoor living or home repair projects
  • Nominal member size: 4x
  • Made from 12-Gauge steel
  • ZMAX galvanization with a black powder coat offers extra corrosion resistance for exterior and treated-wood applications
  • Install with outdoor accents structural screws and hex-head washer (sold separately) for a decorative look
  • Shop all Simpson Strong-Tie here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

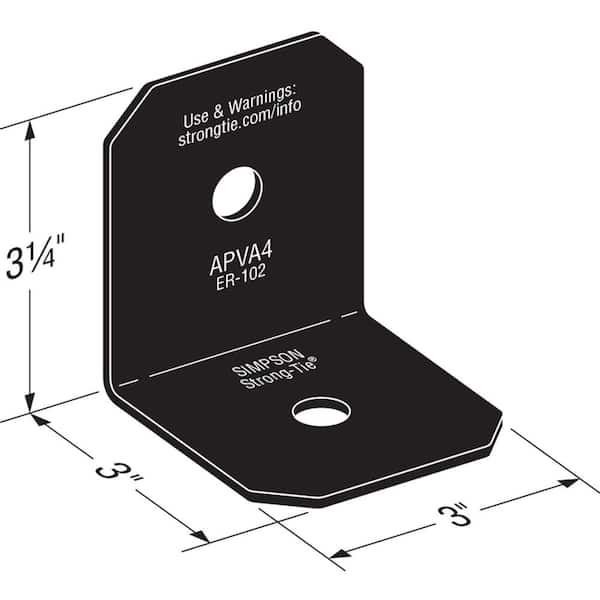

Dimensions

Product Depth (in.)
3
Product Height (in.)
3.25
Product Width (in.)
3

Details

Connector Finish
Powder coated
Fasteners Included
Fasteners Not Included
Features
Decorative
Gauge
12
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
.45
Returnable
180-Day
Type
Other

Warranty / Certifications

Manufacturer Warranty
Limited Warranty

Questions & Answers

3Questions3Answers

I want to attach a 4 by 4" cedar post 6 ft high to the tree stumps remaining in my yard. I want t...

Asked by gardenwithcritters July 3, 2020
1
Answer

We can provide information (dimensions, fasteners, allowable loads, etc.) and show the applications the products are designed for, but it would be up to the Designer to specify the connectors (which product, how many) for the specific project. I can tell you the installation described is not how these angles were designed/tested. We do not have any products evaluated for the installation into the end of stumps. Thank you!

what is the Hole diameter?

Asked by linda June 18, 2020
1
Answer

The hole diameters in the APVA4 are 0.563"; they require the Outdoor Accents® SDWS22312DBB structural wood screws inserted through STN22 washers. Fasteners sold separately. Thank you!

weight rating

Asked by diy June 16, 2020
1
Answer

The APVA4 is typically installed in pairs as shown in the installed pictures here. For this application the allowable loads are uplift (160) capacity 710 lbs. and F1 (160) capacity 1,220 lbs. These loads have been increased for wind or earthquake loading with no further increase allowed. Reduce where other loads govern. For single part installations, use half of the loads above. Thank you!
