Internet #300068626

Model #APL4

Store SKU #1002099224

Outdoor Accents Mission Collection ZMAX, Black Powder-Coated L Strap for 4x4 Lumber

  • Mission-style enhances the beauty of your outdoor living area
  • Strengthen your outdoor living structure with decorative hardware
  • Bring decorative appeal and strength to any outdoor living space
  • See More Details

Frequently Bought Together

+
+
Price:
$867

Product Overview

Outdoor Accents Large Pergola

Add Beauty and Strength to Your Outdoor Living Area

Enjoy design elegance and structural strength with Outdoor Accents decorative hardware

Outdoor Accents Pergola

Build Your Backyard Oasis

Decorative black powder-coat connectors and fasteners provide corrosion resistance

Forever Redwood Lake Pavilion

Complete hardware and fastener line to transform your backyard

From pavilions to pergolas, Outdoor Accents decorative hardware helps create strong structures and memories

Outdoor Accents Hex-Head Washer and Screw Installed

Building Pergola Tips and Tricks

Combining Outdoor Accents structural screws and hex-head washers provide a decorative appearance with easy installation

Outdoor Accents Patio Cover

Build that Patio Cover

Make your patio cover stylish and stronger from the bottom up

Outdoor Accents Pergola

Patio Covers Made Easy

Outdoor Accents fasteners and washers combine to deliver easy-to-install, decorative bolt-like connections

Outdoor Accents Trellis

Imagine Backyard Fun for Years to Come

Installing Outdoor Accents structural screws together with hex-head washers delivers a superior, code-listed connection

Typical APLH26 Outdoor Accents Decorative Light Hanger Installation

Patio Cover Construction

The APLH light joist hangers connect 2x joists to beams

Outdoor Accents Post Base Installation

Post Base Installation

APB post bases include 1 in. standoff from the concrete to help avoid post-end rot

Outdoor Accents Connector Screw Installation with APA21

Angles Add Strength

Outdoor Accents angles accommodate up to 6x or larger lumber

Outdoor Accents Decorative Washer Installed

Mission Style Decoration

APDMW56 decorative washer installs easily with the Outdoor Accents structural wood screw and hex-head washer

Outdoor Accents APT6 Installed

T Strap Ties

Tee up a decorative, Mission-style connection

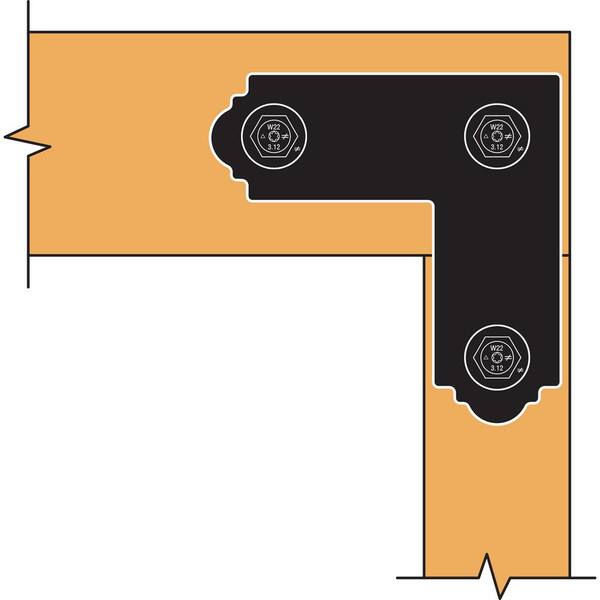

Outdoor Accents APL4 Installed

Decorative reinforcement

APL L Strap Ties offers decorative appeal and lateral strength for connecting posts and beams

Outdoor Accents Flat L Straps from Simpson Strong-Tie bring decorative appeal and lateral strength to any outdoor living space. It provides reinforcement for a connection where one lumber piece intersects another at a 90° angle. This L Strap is easily installed with Outdoor Accents Structural Screws and Hex-Head Washers. The APL4 is designed for use with nominal 4x lumber or larger.
  • Install with Outdoor Accents structural screws and hex-head washer for decorative look (sold separately)
  • Dimensions: 8-1/4 in. x 8-1/4 in.
  • ZMAX galvanized with black powder-coat offers extra corrosion resistance for exterior and treated-wood applications
  • Made from 12-Gauge steel
  • Shop all Simpson Strong-Tie here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
8.25
Product Length (in.)
8.25
Product Width (in.)
3

Details

Color Family
Black
Connector Finish
Powder coated
Connector recommendation
Powder-Coated
Fasteners Included
Fasteners Not Included
Features
Decorative
Gauge
12
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
1.05
Returnable
180-Day
Staggered Nail Pattern
Not Staggered
Strap Type
Tie

Warranty / Certifications

Manufacturer Warranty
Limited Warranty

Questions & Answers

4Questions8Answers

If I have two 4x4's solidly (to code) posted to the ground 10 feet apart with a 4x6 beam running ...

Asked by mikey April 22, 2020
1
Answer

We can provide the allowable loads of the connector, but it would be up to the Designer/Engineer of Record to specify the appropriate connector for the specific application based on demand loads, framing layout, local building codes, etc. I can tell you the part featured here is only rated for uplift/tension and lateral (F1) loads. We do not have any products evaluated for forces that may be imposed by swing motions. This part is intended to be installed in pairs; the published loads and fastener quantities are for two parts. The holes are set in the parts so that when turned back to back they slightly offset and the fasteners do not collide. Thank you!

What is the diameter of the holes in the straps? I would like to run bolts through them instead ...

Asked by Chip January 29, 2020
1
Answer

The holes are 0.563" diameter. Please note use of the Outdoor Accents connectors requires use of the hex-head washer (STN22) and structural wood screw (SDWSDBB) and we can only support the installation with the specified fasteners. Thank you!

Is the width of each leg a full 4 inches? If not, what is the width of each leg? thanks!

Asked by phil December 31, 2018
3
Answers

3 inches each leg is 8.25"inches

Is this straps avaailable in a 6x6?

Asked by Dawn July 13, 2018
3
Answers

not that I saw
