Internet #100375295

Model #SUR210Z

Store SKU #109069

Store SO SKU #592854

SUR ZMAX Galvanized Joist Hanger for 2x10 Nominal Lumber, Skewed Right

  • Provides support underneath the joist, rafter or beam
  • Easy installation of single and double I-joists
  • Positive-angle nailing saves time
  • See More Details
$1581

Frequently Bought Together

+
+
Price:
$1581

Product Overview

Deck Glamour Photo

Deck It Out

Strong decks bring beauty and entertaining space to your outdoor living area

Deck Glamour Photo

Make Your Deck Beautiful and Safe

Building a safe, strong deck starts with the proper connectors and fasteners

Photo of a deck being built

Deck Building Tips and Tricks

Installing corrosion-resistant connectors and fasteners helps extend the life of your deck

SDWH Screw being installed into ledger

Ledger connections critical for deck safety

Strong-Drive® SDWH Timber-Hex HDG screw delivers high-strength, wood-to-wood connectivity, such as deck ledger applications

DTT2Z guardrail install

Guardrail Installation Tips and Tricks

Don’t take chances with guardrail connections. DTT2Z deck tension ties fasten guardrails to deck framing.

DTT1Z install

Securing the Deck to the House

Install DTT1Z as a tension tie to meet building codes and eliminate the need to access to the floor joists inside the home

LSCZ install

Take the Step to Secure Deck Stairs

LSCZ adjustable stair-stringer connector offers a concealed connection between the stair stringer and the carrying header or rim board

Tight LUS26Z install shot

Joist Hangers

Provides bearing and uplift resistance

Tight H1 install shot

Hurricane Ties

Ideal for preventing lateral movement of joists

Tight SD screw install photo

SD Connector Screw

The only screw approved with Simpson Strong-Tie connectors

Tight install shot of LCEZ4

Post Caps

LCEZ end post caps provide a post-to-beam connection in new or retrofit deck applications

Tight PBSZ install photo

Post Base

Features a 1 in. standoff to resist wood decay

Stainless-steel connector product shot

Prevent Corrosion

Deck-Drive DWP stainless-steel fasteners are recommended for higher-exposure environments or applications

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. SUL/SUR hangers provide a 45° connection between a joist and header.
  • SUR = skewed right
  • Can accommodate joists skewed 40 to 50 degrees
  • Angled nail slots direct nails for proper installation
  • Nominal joist size: 2x10 or 2x12
  • Made from 16-gauge steel
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

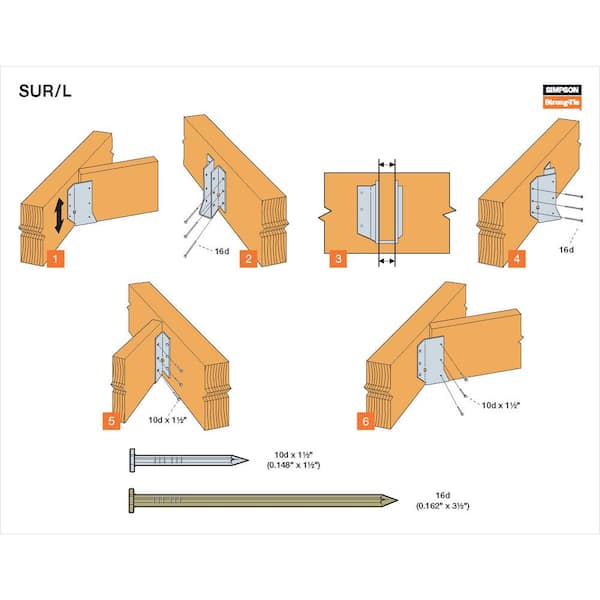

  • Install with 16d common nails in the header and 10d x 1-1/2 in. nails in the joist
  • Shop all Simpson Strong-Tie here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Joist Hanger Size
2x10
Product Depth (in.)
7.5
Product Height (in.)
2.56
Product Width (in.)
4.65 in

Details

Connector Finish
G185 Galvanized
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
16
Hanger Flange Type
Other
Hanger Modifications
Skewed
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
0.98
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
Yes

Questions & Answers

4Questions5Answers

Can you use SD screws for this application?

Asked by Doug September 15, 2020
1
Answer

Yes, the SUR210Z can be installed with can be installed with the SD9112. Please see the second table at the following link for allowable loads with the SD screws: https://www.strongtie.com/facemounthangers_engineeredwoodconnectors/sur-sul-hsur-hsul_productgroup_wcc_ijoist/p/sur.sul.hsur.hsul#LoadTables. Thank you!

I have more of a 35 degree angle. Will these still work?

Asked by eoviking October 24, 2019
1
Answer

"Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. SUL/SUR hangers provide a 45° connection between a joist and header. These hangers will normally accommodate a 40° to 50° skew." More than that may compromise the hanger metal strength.

Skewed at what angle? I'm looking for something that will work for about 30 - 35 degrees.

Asked by Eddie June 11, 2015
1
Answer

The SUR hangers are skewed at 45 degrees (can generally accomodate 40-50 degree skews). For a 30-35 degree skew, you might consider the LSSU hanger which is field adjustable (maximum 45 degrees). The hanger shown here is a single 2x10 hanger, but the description states double (we are working to get this corrected). If you indeed have a single 2x10, please see the LSSU210, or please see the LSSU210-2 if it is a double 2x10. Thank you!

Is the price for these correct??

Asked by chipp55 September 2, 2011
2
Answers

This price seems way out of line

Customer Reviews

  • 24 Customer Reviews
  • 4.5 out of 5 stars overall
100% of customers recommended.
Overall Ratings
5star-icon(13)
4star-icon(10)
3star-icon(0)
2star-icon(0)
1star-icon(1)
Attribute Ratings
Quality
5.0
Value
4.0
Sort By:
Did what it was suppose to do...
Did what it was suppose to do
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
The hangers fit well, they were the correct angle....
The hangers fit well, they were the correct angle.
Was this helpful?
0
0
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
Was this helpful?
0
0
NICE FOR FRAMING, AND FENCE SECTIONS WITH TOUGH ANGLES
NICE FOR FRAMING, AND FENCE SECTIONS WITH TOUGH ANGLES
Was this helpful?
0
0
worked perfectly for my deck...
worked perfectly for my deck
Was this helpful?
0
0
As with all Simpson Strong-Tie products, this one is of excellent quality, if somewhat expensive....
As with all Simpson Strong-Tie products, this one is of excellent quality, if somewhat expensive. It is as easy to use and as functional as any other product of this type, and elongated holes on the narrow-angle side help in positioning & fastening. My only objection to this product is that there are no holes in the wide-angle side that provide toenail access for deep attachment of the joist to the beam. Straight hangers have such holes for angle-nailing deeply into the beam in a cross pattern. Perhaps engineering has shown these to be unnecessary, but I find myself nailing the joist to the beam before installing the hanger.
Was this helpful?
0
0
5 Star Review
Rating provided by a verified purchaser
Was this helpful?
0
0
5 Star Review
Rating provided by a verified purchaser
Was this helpful?
0
0
Excellent for a high volume spot where I wanted maximum...
Excellent for a high volume spot where I wanted maximum joist strength on my deck at an angled step-down, but choose not to use them elsewhere due to high cost (around $11 each). Good toenailing still works well!
