Model #TP57

Store SO SKU #592854

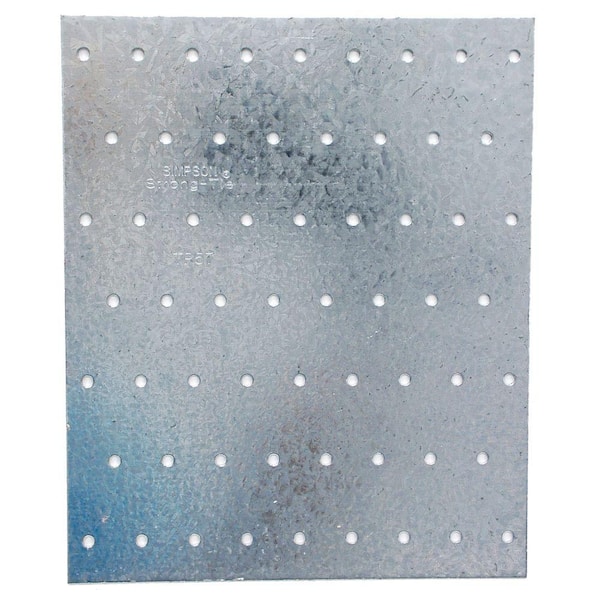

TP 5-3/4 in. x 7 in. 20-Gauge Galvanized Tie Plate

  • A simple, versatile solution for a wide range of connections
  • Staggered nail pattern reduces splitting
  • Quick and easy installation
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. Available in many lengths, widths and thicknesses, straps can be used on the wide or narrow face of lumber for light repairs or heavy-duty projects. Many straps are designed to be used back-to-back on a piece of lumber without fastener interference.

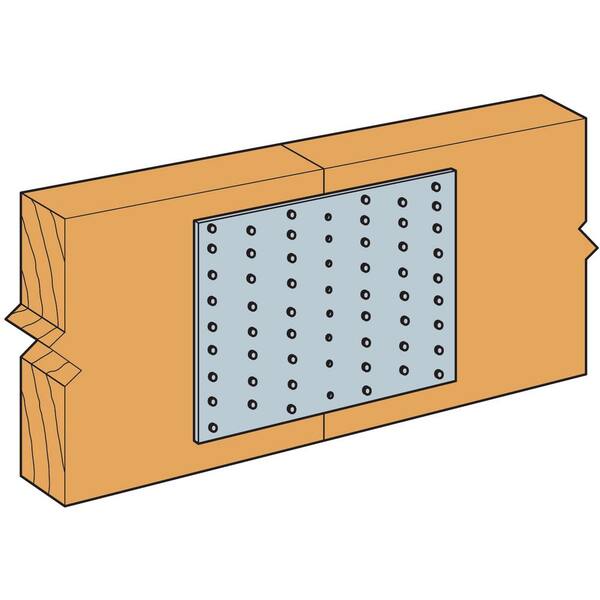

  • A versatile and easy-to-use tie plate for splicing and miscellaneous wood-to-wood connections
  • Ideal for reinforcing wood-to-wood connections on flat members
  • Staggered nail pattern for a secure connection that resists splitting
  • Available flat (TP) or with a flange (TPA) for added strength
  • Width: 5-3/4 in.
  • Length: 7 in.
  • Made from 20-gauge steel
  • Galvanized (G90) for extra corrosion resistance
  • Install with 8d common, 8d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive® SD screws
  • Shop all Simpson Strong-Tie here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
0.035
Product Length (in.)
7
Product Width (in.)
5.75 in

Details

Color Family
Silver
Connector Finish
G90 Galvanized
Connector recommendation
Tie Plate
Fasteners Included
Fasteners Not Included
Features
No Additional Features
Gauge
20
Material
Steel
Number of Pieces
1
Package Quantity
1
Product Weight (lb.)
0.4
Returnable
90-Day
Staggered Nail Pattern
Staggered
Strap Type
Tie

Warranty / Certifications

Manufacturer Warranty
Limited Warranty

Questions & Answers

3Questions5Answers

It is for a notch that someone cut out can they be used to help support that area

Asked by Danny April 22, 2019
1
Answer

The TP is a non-load rated, miscellaneous connector that can be used in a variety of applications, but it would be up to the Designer/Engineer of Record to evaluate when using for structural applications. I'm not clear on the specific application, but the RPS strap tie meets code requirements for repair of wood members notched during installation of plumbing and electrical and the CTS218 repairs wood members (top plates, studs and trusses) and handles both tension and compression loads. It would be up to the Designer/EofR to specify the appropriate solution. Thank you!

Can i use these on a support beam in the ceilimg somebody cut it and trying to put wood in that hole and use this to hold it together

Asked by Danny April 21, 2019
1
Answer

Can be used to mend together a break, crack, cut, end joint, etc. Should not be used as the primary hold for a weight bearing wall/opening. It's for additional, not primary support.

should a nail/screw be used in every hole of a TP57 tie plate when butting 2 pieces of wood together

Asked by 12334 July 14, 2014
3
Answers

No, I don’t ever use all the holes. They are there to allow a lot of options. You have to make a judgment call on how many to use. In my opinion using all of them would weaken the wood, too much. I use screws, not nails.
