Model # 11592399

Internet #204724865

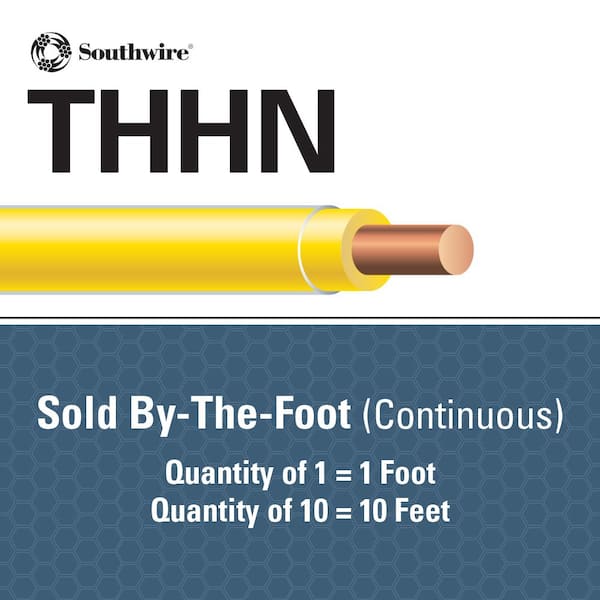

Southwire (By-the-Foot) 12 Yellow Solid CU THHN Wire
0032886921254

Southwire

(By-the-Foot) 12 Yellow Solid CU THHN Wire

  • #12 AWG commercial wiring - Sold by the Foot
  • Add the Length Desired In Feet as Your Quantity and Add To Cart
  • #12 THHN comes stranded/solid with variety of colors and lengths
$030 /feet
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • #12 AWG commercial wiring - Sold by the Foot
  • Add the Length Desired In Feet as Your Quantity and Add To Cart
  • #12 THHN comes stranded/solid with variety of colors and lengths
Southwire’s THHN and THWN-2 is a multi-purpose building wire used in conduit and cable trays for service, feeders and branch circuits in commercial and industrial applications. It is also used as a conductor in NM-B, UF-B, SER, SEU and MC. Southwire’s THHN is rated for 600-Volt and has a heat capacity of up to 90˚C.

Product Overview

  • #12 AWG commercial wiring - Sold by the Foot
  • Add the Length Desired In Feet as Your Quantity and Add To Cart
  • #12 THHN comes stranded/solid with variety of colors and lengths
Model #: 11592399
Internet #: 204724865

Southwire’s THHN and THWN-2 is a multi-purpose building wire used in conduit and cable trays for service, feeders and branch circuits in commercial and industrial applications. It is also used as a conductor in NM-B, UF-B, SER, SEU and MC. Southwire’s THHN is rated for 600-Volt and has a heat capacity of up to 90˚C.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
0.119
Product Height (in.)
0.119
Product Length (ft.)
1
Product Width (in.)
12
Wire/Cable Length (ft.)
1

Details

Allowable Ampacities
20
Cable/Wire Type
THHN
Commercial / Residential
Commercial / Residential
Conductor Gauge
12
Conductor Material
Copper
Direct Burial
No
Electrical Product Type
Single Conductor Electrical Wire
Flame Retardant
No
Grounded
No
Indoor/Outdoor
Indoor/Outdoor
Jacketed
Yes
Number of Conductors
1
Outer Color
Yellow
Returnable
90-Day
Shielded
No
Stranded or Solid
Solid
Sunlight / UV Resistant
No
Wet Location Use
Yes
Wire Cut Type
Cut By-The-Foot

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Certified
Manufacturer Warranty
N/A

Specifications

Dimensions

Product Depth (in.)
0.119
Product Height (in.)
0.119
Product Length (ft.)
1
Product Width (in.)
12
Wire/Cable Length (ft.)
1

Details

Allowable Ampacities
20
Cable/Wire Type
THHN
Commercial / Residential
Commercial / Residential
Conductor Gauge
12
Conductor Material
Copper
Direct Burial
No
Electrical Product Type
Single Conductor Electrical Wire
Flame Retardant
No
Grounded
No
Indoor/Outdoor
Indoor/Outdoor
Jacketed
Yes
Number of Conductors
1
Outer Color
Yellow
Returnable
90-Day
Shielded
No
Stranded or Solid
Solid
Sunlight / UV Resistant
No
Wet Location Use
Yes
Wire Cut Type
Cut By-The-Foot

Warranty / Certifications

Certifications and Listings
1-UL Listed,CSA Certified
Manufacturer Warranty
N/A

Questions & Answers

cant this be used for a 220 volt dryer

cant this be used for a 220 volt dryer
Asked by: Sleepy
It depends on how many amps the dryer pulls. Always look at the data plate for voltage and amps and size the wire properly. 12 for 20A. 10 guage is good for 30A and 8 is good up to 55A On a dryer go with 8 guage and you will be good.
Answered by: wondo
Date published: 2017-12-08

can these s to make pigtail ??

can these s to make pigtail ??
Asked by: spike
sure, If you need a pigtail rated for 20 A.
Answered by: wondo
Date published: 2017-12-08

THWN?

Is this just THHN or is it also THWN?
Asked by: Jordan
This wire is rated for: THHN or THWN-2
Answered by: SouthwireCustomerService
Date published: 2017-11-24

how much does a full roll of this wire weigh?

how much does a full roll of this wire weigh?
Asked by: Curious
This product weighs about 0.58 lbs.
Answered by: SouthwireCustomerService
Date published: 2017-08-04
