Model # QO70ANCP

Store SKU # 374589

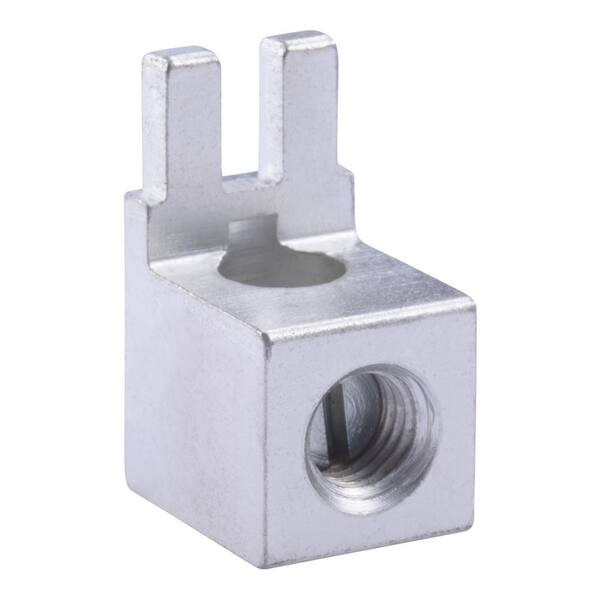

QO 70 Amp Load Center Auxiliary Neutral Lug Kit

$843
  • For use in Square D QO electrical panels
  • Accepts #12 - 2 aluminum wire or #14 - 4 copper wire
  • UL listed and ANSI Certified
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret

Product Details

70 Amp Auxiliary Neutral Lug Kit made for QO load centers. This kit is field installed for #12 - 2 Al or #14 - 4 Cu wires. QO Accessories can only be used with QO Load Centers.
  • Field installed for #12 - 2 Al or #14 - 4 Cu wire
  • Neutral/ground lugs
  • UL listed
  • ANSI certified
  • Made in the USA
  • Return Policy
  • California residents

Additional Resources

From the Manufacturer

caret

Specifications

Dimensions: H 1.22 in, W 0.56 in, D 0.69 in

Dimensions

Product Depth (in.)0.69 inProduct Height (in.)1.22 in
Product Width (in.)0.56 in

Details

Electrical Product TypeDistribution Load Center / Breaker AccessoryMounting TypeBolt On
Product Weight (lb.)0.04 lbReturnable90-Day

Warranty / Certifications

Certifications and ListingsUL ListedManufacturer Warranty3 years from the date of installation; call (888)778 2733 for further details
caret

Questions & Answers

2Questions
caret
Q:Is this the correct lug to connect to a PK ground bar in a 200 amp Square D QO panel, for a 4 gau...
by|Mar 9, 2020
2 Answers
Answer This Question

A:  Hello Bobby, Consider using an LK100AN it will accept a #6 - 2/0 AWG AL or CU wire. Regards, Schneider Electric Customer Care.

by|Mar 11, 2020

    A:  Yes, technically it will work as it is rated to accept #4 gauge wire. However, if the #4 wire is stranded, it can be difficult to get the wire into the lug because the most of the time when stranded wire is cut it becomes sort of an oval shape, and the #4 wire has to be perfectly round to fit into the #4 rated lug. So if it is stranded wire I would recommend the larger lug that Schneider customer care recommended.

    by|Apr 10, 2021
      caret
      Q:i know this says 70 amp but will it work on 100 amp
      by|Sep 25, 2016
      2 Answers
      Answer This Question

      A:  Yes. Not sure why they say 70 amp, as lugs are not rated by amperage but by the size wire they accept. It will physically fit in panels rated for more amps and as long as the wire you are terminating into the lug is within the lugs' range you are good to go. (If the wire is too large and stranded wire, no cutting some of the strands to make it fit into the lug. That is a code violation.)

      by|Apr 10, 2021

        A:  Yes. The QO70AN is a 'Fork' type neutral lug that mounts in two of the wire binding holes in a branch neutral bar or PK ground bar and uses the wire binding screws for those holes tighten the lug in place.

        by|Jul 23, 2019
          2 found this answer helpful
          Showing 1-2 of 2
          caret

          Customer Reviews

          4.9 out of 5
          (6)
          • 4.9
            out of 6 reviews
          • 100% recommend this product
          Filter by:
          Showing 1-6 of 6 reviews
          Took 17 days to get them. I saw them in...
          Took 17 days to get them. I saw them in two stores while waiting, but already paid for them.
          by
          • Verified Purchase
          Very easy to install in a Sq D Panel. I used it in a ITE panel and had to break off one of the le...
          Very easy to install in a Sq D Panel. I used it in a ITE panel and had to break off one of the legs because the holes in the bar were too far apart. This should work in a fault.
          by
          • Verified Purchase
          • Recommended
          Was well designed and easy to install...
          Was well designed and easy to install
          by
          • Verified Purchase
          5 Star Review
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          5 Star Review
          Rating provided by a verified purchaser
          by
          • Verified Purchase
          Perfect adapter for large wire
          I needed this lug kit to install a #2 gauge wire on the bus bar. Worked great!
          by
          • Verified Purchase
          • Recommended
          1 found this review helpful
          Showing 1-6 of 6 reviews
