16 ft. x 30 in. 120-Volt Radiant Floor Heating Mat (Covers 40 sq. ft.)

Apply Now
Pay $352.06 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Choose SunTouch mats for easy installation of floor warming
  • Installs under tile or stone, laminate, floating hardwood
  • SunTouch the simple, safe and efficient way to warm floors
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret
Product Details
  • Choose SunTouch mats for easy installation of floor warming
  • Installs under tile or stone, laminate, floating hardwood
  • SunTouch the simple, safe and efficient way to warm floors
About This Product

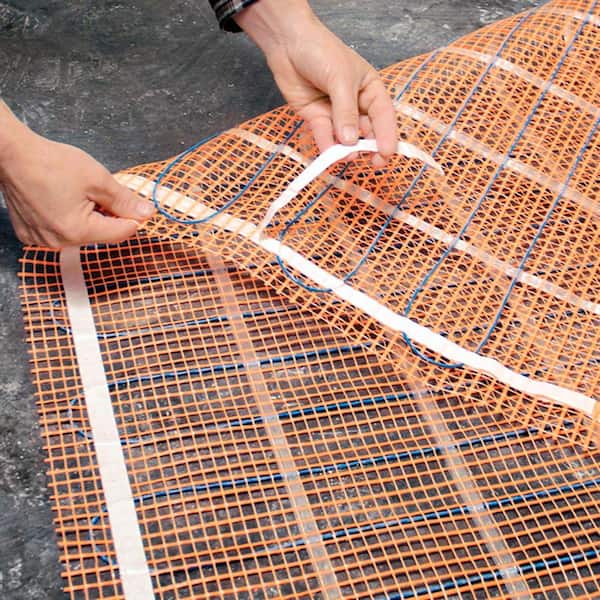

This 120 volt 16 foot x 30 inch SunTouch floor warming mat adds comfort and a touch of luxury to a home. This ultra-thin, low-profile system installs beneath tile, stone and even vinyl or laminate flooring. It's ideal for remodeling bathrooms and kitchens and offers an upscale option when designing new construction. It is energy efficient as well as inexpensive to operate. Dual wire technology reduces electromagnetic fields (EMF) to ultra-low levels and it is UL listed for safety.

Product ID #: 100607097Internet #: 840213068127Model #: 12001630R
caret

Specifications

Dimensions

Product Length (ft.)16 ftProduct Thickness (in.)0.1875 in
Product Width (in.)30 in

Details

MaterialPolypropyleneProduct Weight (lb.)4.85 lb
Returnable90-DayTotal Square Footage Covered40
Voltage (V)120 VWattage (W)12 W

Warranty / Certifications

Certifications and ListingsUL ListedManufacturer WarrantyLimited 25 year warranty
caret

Questions & Answers

479Questions
caret
Q:Can it be cut
by|Jan 31, 2024
1 Answer
Answer This Question

A:  Great question. The blue wire can not be cut, but the orange mat can be cut to conform to the shape of your room.

by|Feb 2, 2024
    caret
    Q:Can i install the suntouch meat mat on top of this mosaic tiles? If yes, do you recommed this method: put a primer>heatmat>Self level>LVP?
    by|Jan 24, 2024
    1 Answer
    Answer This Question

    A:  Thanks for the question. SunTouch TapeMats are designed to be under the tile embedded in mortar, so you can not place it on top of the tile.

    by|Jan 26, 2024
      caret
      Q:Can multiple mats be ran off of one controller? Like a hallway and bathroom next to each other. Obviously in parallel all wires ran directly to thermostat. Would I just want to hook one sensor up to each mat?
      by|Jan 23, 2024
      1 Answer
      Answer This Question

      A:  Thanks for the question. Yes multiple mats can be ran to one controller up to 15 amps in total, so depends on your mat size. If beyond 15 amps we you can look to add a relay to break up the load. As for sensors, you can only hook up 1 sensor per thermostat, so you would want to strategically place the sensor in the proper location to support both areas.

      by|Jan 26, 2024
        caret
        Q:How thick does mortar overlay need to be?
        by|Jan 18, 2024
        1 Answer
        Answer This Question

        A:  Thanks for the question, we require to fully embed the heating wire and splices so that no portion of these show. This will ensure a proper installation, usually requiring 1/4in to 1/2in of product to do so.

        by|Jan 22, 2024
          Showing 1-4 of 479
          caret

          Customer Reviews

          4.4 out of 5
          • 4.4 out of 353 reviews
          • 86% recommend this product
          Filter by:
          Showing 1-10 of 353 reviews
          It does heat the floor lol
          Pretty happy, heats the ceramic tile, not as hot as I would like but works.
          by
            • Recommended
            Install tip
            you can see in my pictures, the wire has floated to the top of the cement where it wasn't glued. You can also see that the mesh from the heat mat has floated up. HD should allow more the two lines of text for complete, honest review.
            by
              • Recommended
              3 found this review helpful
              Worth the investment and extra effort to install. It’s wonderful to step on my new warm tiles! Ea...
              Worth the investment and extra effort to install. It’s wonderful to step on my new warm tiles! Easy to install. Highly recommend!
              by
                • Recommended
                1 found this review helpful
                I felt the installation instructions could have been a bit clearer to allow a DIYer a more a bett...
                I felt the installation instructions could have been a bit clearer to allow a DIYer a more a better understanding of the installation needs and procedure.
                by
                • Verified Purchase
                • Recommended
                2 found this review helpful
                I have put this in every bathroom I ever re-do. I even put this in my apartments. I like the simp...
                I have put this in every bathroom I ever re-do. I even put this in my apartments. I like the simpler thermostat better—has less bells and whistles, and we can all do with less bells and whistles in tis modern era. People love the warm floors next to clawfoot tubs and showers and toilets! I hope they keep carrying the easy mat style. I always use a four gang box and then put in a single gang mud-ring over the top. Once I used a single gang box only at 5 feet and it worked OK, just a little crowded. I have this in a beach cottage I built too, and it is deluxe as heck!
                by
                Response from WattsWaterApr 3, 2019
                Thank you for your positive rating. We really appreciate the feedback and if there is ever anything we can assist with please feel free to contact us. Watts
                  • Recommended
                  6 found this review helpful
                  doesn't radiate out
                  Had this installed this summer and love it. My only issue is that i was told the heat would radiate to the surrounding tiles so i didn't need to install on the whole floor. Not true. The tiles adjacent to where this is installed are cold as ice (figuratively). For the cost, i would have easily place it on the whole floor instead of the areas i thought i needed.
                  by
                    • Recommended
                    13 found this review helpful
                    Worked as advertised. Contractor did not have any issues with installation. They were able to p...
                    Worked as advertised. Contractor did not have any issues with installation. They were able to pour leveler right over top and then placed the thin-set and tiles without any issue. Seemed like easy install for experience contractor. I've had the floor heat on for about two weeks with the temp set at 76 degrees with the suggested digital thermostat. Its keeping the ceramic flooring nice and warm. I will buy again when I do the second bathroom.
                    by
                    • Verified Purchase
                    • Recommended
                    7 found this review helpful
                    Very Disappointed!
                    I just purchased this item and had it professionally installed by my tile setter during my master bath renovation. Everything was installed correctly and the unit does work - but just barely! Even with the thermostat set at 90, it has barely warmed the initial coating of thin set mortar after nearly 5 hours of operation. There is NO way it will warm the floor when temperatures are actually cold. Unfortunately, this is an item that cannot be replaced once installed. DO NOT waste your money on this product - spend a little more and get a quality floor warmer.
                    by
                    • Pro
                    15 found this review helpful
                    Warm Toes all Winter!
                    Great product, works well and I love the warm toes - no regrets there! I liked that you could cut and re-arrange where the heating sat Three things to be aware of: 1. You have to be VERY careful not to damage the wires. 2. The wires can make placing the tile uneven so you need to have fairly thick grout and lay the tile without your own weight on it. Obviously if you have a large area to cover, this could be difficult if you're laying from the center of the room and work yourself into a corner. 3. The instructions specifically say that the circuit should be 15 amps where my electrician said it should be 20 amps. You might want to calculate your load and clarify before you install.
                    by
                    • DIY
                    • Recommended
                    8 found this review helpful
                    Somewhat easy to install, keeps tile warm
                    Installed this during a bathroom remodel. I laid the mat to cover the high-traffic areas and cut one section on the end and flipped it around for coverage in front of the vanity. The directions are thorough. I used just a multimeter and kept good tabs on the OHMs. To protect the mat from the trowel cutting the wire while laying, I covered the smooth ends of my trowel with duct tape. This seemed to work well. I smoothed a skim coat over the mat then used a 1/4" trowel to lay the base. For areas with no mat under the tile I used a 1/2" trowel. This helped keep the tile level whether over the mat or not. Difficulties I ran into was the mat coming up with the thinset when I was smoothing the skim coat over. I learned to keep the trowel at an angle and not pull it straight off. The double-sided tap was helpful but thinset is sticky. Also, get the mat as flat as possible so it does not bunch up while you are skimming it with thinset. The last problem I had was my 'key tile' was on the mat which had covered the mark I had on the floor. Keep this in mind and plan that key tile well. It draws only 1.5 amps but I wired a sole 20 amp circuit for the mat and a GFCI outlet. I did not wire the thermostat for the mat as a load off the GFCI as the thermostat GFCI and outlet GFCI would trip each other. The mat takes about 10-15 minutes to warm the floor. I have never been on a heated floor and it does not get too hot. It is a little warmer than a wood floor. Nonetheless, it is much better than cold tile. I can certainly feel a major difference when I step on a heated mat area versus a non-heated area.
                    by
                    • DIY
                    • Recommended
                    17 found this review helpful
