8 ft. x 30 in. 120-Volt Radiant Floor Heating Mat (Covers 20 sq. ft.)

  • Energy efficient
  • Easy to install
  • For use beneath laminate, vinyl, tile, or stone
  • See More Details
$18900

Frequently Bought Together

+
+
Price:
$18900

Product Overview

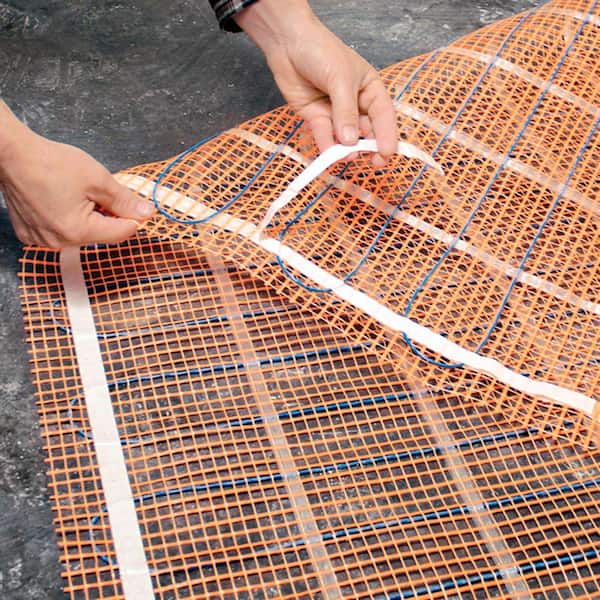

The SunTouch Floor Heating Mat measures 8 ft. x 30 in. and offers an ultra-thin, low-profile system that installs beneath tile, stone and even vinyl or laminate flooring. It's ideal for remodeling bathrooms and kitchens to add radiant floor heating and offers an upscale option when designing new construction floor warming. Dual-wire technology reduces electromagnetic fields (EMF) to ultra-low levels. The mat is an energy-efficient touch of radiant floor warming luxury for your home, is UL listed, and comes with detailed installation instructions.
  • Install the heated floor mat below ceramic or porcelain tile, stone or brick floors or in a self-leveling mortar bed below vinyl floors, floating wood- and laminate floors
  • UL listed for safety
  • Open-weave construction for easy application of thin-set and mortar without compromising the bond of your floor covering to the sub-floor
  • Dual wire technology keeps EMFs to ultra-low levels
  • Armored power lead wire straight to the electrical box, no conduit required
  • Single-point power connection to facilitate layout and wiring
  • Mats can be connected in parallel for larger floor surfaces
  • Can be combined with a thermostat control (not included)
  • CLICK HERE to learn more about SunTouch and calculate what you will need for YOUR project
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Under Floor Warming

10 ft. x 36 in. 240-Volt Radiant Floor Heating System for Laminate, Vinyl, and Floating Floors (Covers 30 sq. ft.)
current product
8 ft. x 30 in. 120-Volt Radiant Floor Heating Mat (Covers 20 sq. ft.)
10 ft. x 36 in. 120-Volt Peel and Stick Radiant Floor Heating Mat for Tile and Glue-Down Floors (Covers 30 sq. ft.)14 ft. x 30 in. 120-Volt Radiant Floor Heating Mat (Covers 35 sq. ft.)
BrandQuietWarmthSunTouch Floor WarmingQuietWarmthSunTouch Floor Warming
Name10 ft. x 36 in. 240-Volt Radiant Floor Heating System for Laminate, Vinyl, and Floating Floors (Covers 30 sq. ft.)8 ft. x 30 in. 120-Volt Radiant Floor Heating Mat (Covers 20 sq. ft.)10 ft. x 36 in. 120-Volt Peel and Stick Radiant Floor Heating Mat for Tile and Glue-Down Floors (Covers 30 sq. ft.)14 ft. x 30 in. 120-Volt Radiant Floor Heating Mat (Covers 35 sq. ft.)
Price
$15850
$18900
$26806
/roll
$37607
Ratings
(106)
(316)
(55)
(316)
Voltage (volts)240120120120
Flooring Product TypeUnderfloor HeatingUnderfloor HeatingUnderfloor HeatingUnderfloor Heating
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Length (ft.)
8
Product Thickness (in.)
.125 in
Product Width (in.)
30

Details

Flooring Product Type
Underfloor Heating
Material
Fiberglass Mesh
Product Weight (lb.)
4
Returnable
180-Day
Total Square Footage Covered
20
Voltage (volts)
120
Wattage (watts)
240

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
25 Year Limited Warranty

Questions & Answers

397Questions18Answers

What is the current draw for each mat? Would it be 3 times that for 3 mats?? At 300 watts and 1...

Asked by doug September 21, 2020
3
Answers

BUY ONE MAT FOR THE AREA YOU NEED AND TRIM TO FIT. THE MORE MATS THE MORE WATTS

Does this system use a 15 amp circuit or 20amp circuit?

Asked by Dan August 24, 2020
2
Answers

20amp

What’s the difference between the 120v and 240v mat

Asked by Devkurt August 9, 2020
0
Answers

How long does it take to warm up for the first time once installed?

Asked by Shaina July 21, 2020
1
Answer

It’s the same every time but generally 20-30 minutes depending on how cold the floor initially is. And that time is how long it will take to get to the desired temperature. You will feel some warmth within 10 minutes

Can I use mastic to place tiles instead of thin set?

Asked by Suzanne June 7, 2020
1
Answer

In the installation manual, SunTouch only recommends a polymer modified thinset mortar and discourages the use of a water-based adhesive, like mastic

Can this be installed in a large tiled shower as long as the thermostat box is outside of the shower?

Asked by Jason May 30, 2020
2
Answers

Yes this mat can

Do you have to use the thermostat?

Asked by DJR May 15, 2020
5
Answers

That would be the only way to regulate the temperature.

I am thinking of putting under a floating laminent floor how do you recomend it to be done

Asked by Johnny April 9, 2020
2
Answers

I've had mine installed for 3 years now in a bathroom and absolutely love it. I have it under a tile floor. Follow the directions for putting under the tile. It is fairly easy.

Can you install this on a wood subfloor and then place engineered hardwood over it? Do you need t...

Asked by bena April 7, 2020
1
Answer

You can, the mat just needs to be embedded in mortar

I have to cover 300 Sqf floors do I need 120 or 240 volts wire and if can put 4 mats together

Asked by mony March 31, 2020
1
Answer

For 300 sq ft, you want 240v. A 240v thermostat can heat up to 300 sq ft and a 120v can heat 150 sq ft. You can connect as many mats as needed to meet that square footage for the voltage.

8 ft. x 30 in. 120-Volt Radiant Floor Heating Mat (Covers 20 sq. ft.) - page 2

Customer Reviews

  • 316 Customer Reviews
  • 4.4 out of 5 stars overall
87% of customers recommended.
Overall Ratings
5star-icon(196)
4star-icon(77)
3star-icon(10)
2star-icon(10)
1star-icon(23)
Sort By:
I felt the installation instructions could have been a bit clearer to allow a DIYer a more a bett...
I felt the installation instructions could have been a bit clearer to allow a DIYer a more a better understanding of the installation needs and procedure.
Was this helpful?
0
0
I have put this in every bathroom I ever re-do. I even put this in my apartments. I like the simp...
Appearance :
5
Ease of installation :
5
Quality :
5
Value :
5
I have put this in every bathroom I ever re-do. I even put this in my apartments. I like the simpler thermostat better—has less bells and whistles, and we can all do with less bells and whistles in tis modern era. People love the warm floors next to clawfoot tubs and showers and toilets! I hope they keep carrying the easy mat style. I always use a four gang box and then put in a single gang mud-ring over the top. Once I used a single gang box only at 5 feet and it worked OK, just a little crowded. I have this in a beach cottage I built too, and it is deluxe as heck!
Was this helpful?
2
0
Response from WattsWaterApril 3, 2019
Thank you for your positive rating. We really appreciate the feedback and if there is ever anything we can assist with please feel free to contact us. Watts
doesn't radiate out
Had this installed this summer and love it. My only issue is that i was told the heat would radiate to the surrounding tiles so i didn't need to install on the whole floor. Not true. The tiles adjacent to where this is installed are cold as ice (figuratively). For the cost, i would have easily place it on the whole floor instead of the areas i thought i needed.
Was this helpful?
8
0
Worked as advertised. Contractor did not have any issues with installation. They were able to p...
Worked as advertised. Contractor did not have any issues with installation. They were able to pour leveler right over top and then placed the thin-set and tiles without any issue. Seemed like easy install for experience contractor. I've had the floor heat on for about two weeks with the temp set at 76 degrees with the suggested digital thermostat. Its keeping the ceramic flooring nice and warm. I will buy again when I do the second bathroom.
Was this helpful?
5
0
Very Disappointed!
Appearance :
4
Ease of installation :
4
Quality :
1
Value :
1
I just purchased this item and had it professionally installed by my tile setter during my master bath renovation. Everything was installed correctly and the unit does work - but just barely! Even with the thermostat set at 90, it has barely warmed the initial coating of thin set mortar after nearly 5 hours of operation. There is NO way it will warm the floor when temperatures are actually cold. Unfortunately, this is an item that cannot be replaced once installed. DO NOT waste your money on this product - spend a little more and get a quality floor warmer.
Was this helpful?
9
0
Sandy, utah
Warm Toes all Winter!
Appearance :
5
Ease of installation :
4
Quality :
5
Value :
5
Great product, works well and I love the warm toes - no regrets there! I liked that you could cut and re-arrange where the heating sat Three things to be aware of: 1. You have to be VERY careful not to damage the wires. 2. The wires can make placing the tile uneven so you need to have fairly thick grout and lay the tile without your own weight on it. Obviously if you have a large area to cover, this could be difficult if you're laying from the center of the room and work yourself into a corner. 3. The instructions specifically say that the circuit should be 15 amps where my electrician said it should be 20 amps. You might want to calculate your load and clarify before you install.
Was this helpful?
4
0
Somewhat easy to install, keeps tile warm
Ease of installation :
4
Quality :
5
Value :
4
Installed this during a bathroom remodel. I laid the mat to cover the high-traffic areas and cut one section on the end and flipped it around for coverage in front of the vanity. The directions are thorough. I used just a multimeter and kept good tabs on the OHMs. To protect the mat from the trowel cutting the wire while laying, I covered the smooth ends of my trowel with duct tape. This seemed to work well. I smoothed a skim coat over the mat then used a 1/4" trowel to lay the base. For areas with no mat under the tile I used a 1/2" trowel. This helped keep the tile level whether over the mat or not. Difficulties I ran into was the mat coming up with the thinset when I was smoothing the skim coat over. I learned to keep the trowel at an angle and not pull it straight off. The double-sided tap was helpful but thinset is sticky. Also, get the mat as flat as possible so it does not bunch up while you are skimming it with thinset. The last problem I had was my 'key tile' was on the mat which had covered the mark I had on the floor. Keep this in mind and plan that key tile well. It draws only 1.5 amps but I wired a sole 20 amp circuit for the mat and a GFCI outlet. I did not wire the thermostat for the mat as a load off the GFCI as the thermostat GFCI and outlet GFCI would trip each other. The mat takes about 10-15 minutes to warm the floor. I have never been on a heated floor and it does not get too hot. It is a little warmer than a wood floor. Nonetheless, it is much better than cold tile. I can certainly feel a major difference when I step on a heated mat area versus a non-heated area.
Was this helpful?
12
0
Works great
Appearance :
5
Ease of installation :
4
Quality :
5
Value :
4
Kids came home for Christmas and loved the new floor in the guest bathroom. It takes a long time to heat up over the concrete basement subfloor, but it is nice when it's ready. Keep your thinset thick. My tiles aren't perfect along the edge of the mat. You need to build up the area around the mat. Also, I didn't dig deep enough holes in the concrete subfloor. for the thermostat or the connections and they required a lot of building up thinset around them.
Was this helpful?
4
0
most comfortable room in our home!
My husband and I love our radiant floor. I wish we would have installed it throughout the rest of our home. It is so wonderful to put our feet on a warm, cozy floor. Highly recommend. We installed with the digital programmable thermostat.
Was this helpful?
1
0
Port Angeles
Bathroom floor
Appearance :
5
Ease of installation :
3
Quality :
3
Value :
2
Great product. Easy to instal. Kind of expensive for what you get. Need to buy a lot of extras.
Was this helpful?
1
0
