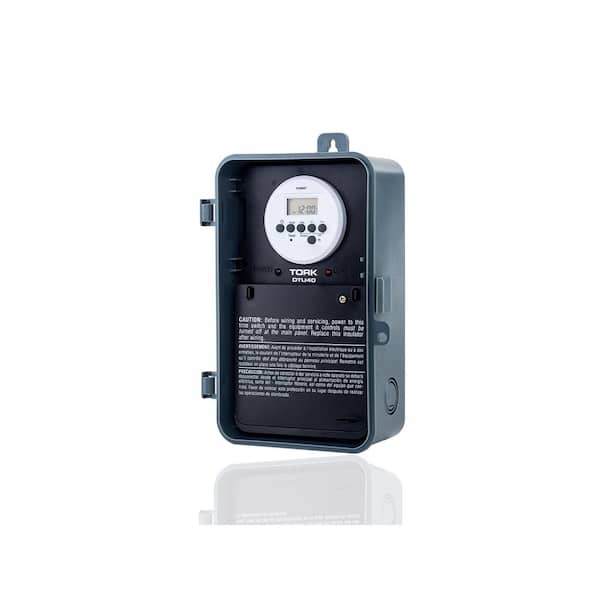

40-Amp Multi-Volt 120/208-240/277 Automatic Voltage Detection 7-Day Digital Time Switch

$7129
How to Get It

Frequently Bought Together

+
+
Price:
$7129

Product Overview

Our Universal Multi-Voltage 40-Amp, 7-day Digital Time Switch is perfect for Lighting, Pumps, Signs, Air Conditioning, Water Heaters, Fans applications. It is easy to set with manual button push for daylight savings time. The time switch is enclosed in a NEMA 3R indoor/outdoor enclosure that is heavy duty, tampered resistant metal construction to protect timer from weather and damage.
  • Timer supply is multi-voltage that has automatic input voltage detection for use with 120/208-240/277 VAC 60Hz and has DPDT Dry contacts
  • Easy-set with clock format of am/pm, scheduling is 7 on and off pairs of set points for individual programs on each day of the week, minimum setting is 1 minute, manual button push for one hour adjustment for daylight savings
  • Manual override is used until the next regularly scheduled on or off, automatic operation then resumes, the random mode varies on and off times to create "lived-in" look when away
  • Power on green and load on red and LED indicating lights, battery retains time and schedule in event of power outage
  • Polycarbonate indoor/outdoor NEMA 3R enclosure
  • Click here for more information on Electronic Recycling Programs

Additional Resources

From the Manufacturer

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Outdoor Lighting Accessories

current product
40-Amp Multi-Volt 120/208-240/277 Automatic Voltage Detection 7-Day Digital Time Switch
T100 Series 40 Amp 24-Hour Outdoor Mechanical Timer with Double Pole Single Throw switching 240 VAC, Gray40 Amp Auto-Volt Digital Industrial Timer Switch - GrayT106R 40 Amp 24-Hour Mechanical Time Switch with Outdoor Steel Enclosure - Gray
BrandTORKIntermaticIntermaticIntermatic
Name40-Amp Multi-Volt 120/208-240/277 Automatic Voltage Detection 7-Day Digital Time SwitchT100 Series 40 Amp 24-Hour Outdoor Mechanical Timer with Double Pole Single Throw switching 240 VAC, Gray40 Amp Auto-Volt Digital Industrial Timer Switch - GrayT106R 40 Amp 24-Hour Mechanical Time Switch with Outdoor Steel Enclosure - Gray
Price
$7129
$9498
$11063
$11879
Ratings
(53)
(231)
(36)
(2)
Timer TypeDigitalMechanicalDigitalMechanical
Indoor/OutdoorIndoor,OutdoorIndoor,OutdoorIndoor,OutdoorIndoor,Outdoor
Electrical FeaturesIndicator Light,ProgrammableProgrammableProgrammableProgrammable
Amperage (amps)40 A40 A40 A40 A
Wattage (watts)11080 W11080 W11080 W8320 W
Mounting TypeSurface MountWall MountedSurface Mount,Wall MountedSurface Mount,Wall Mounted
Compatible Bulb TypeIncandescent,LEDCFL,Incandescent,LEDCFL,Incandescent,LEDCFL,Incandescent,LED
Voltage277 volt208 volt,277 volt120 volt,277 volt208 volt,277 volt
RatingWeather ResistantRust ResistantRust ResistantTamper Resistant,Weather Resistant
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)4 inProduct Height (in.)6 in
Product Width (in.)9.75 in

Details

Amperage (amps)40 AColor FamilyGray
Color/FinishGrey Polycarbonate Indoor/Outdoor NEMA 3RCompatible Bulb TypeIncandescent,LED
Electrical FeaturesIndicator Light,ProgrammableElectrical Product TypeTimer
Indoor/OutdoorIndoor,OutdoorMaximum time setting (min.)1425
Mounting TypeSurface MountOutdoor Lighting FeaturesTimer,Weather Resistant
RatingWeather ResistantReturnable90-Day
Timer TypeDigitalVoltage277 volt
Wattage (watts)11080 W

Warranty / Certifications

Certifications and ListingsCSA Listed,UL ListedManufacturer Warranty1 year

Questions & Answers

Typical questions asked about products:

  • Is the product durable?
  • Is the product easy to use?
  • What are the dimensions of the product?

Customer Reviews

  • 4.3
    out of 53 reviews
  • 68%recommend this product
Filter by:
Showing 1-10 of 53 reviews
Easy to install (following old timer as reference) I would recommend electrical wiring experience...
Easy to install (following old timer as reference) I would recommend electrical wiring experience if attaching multiple items to one timer. This timer works with at least two circuits and one is 230V.
by
  • Verified Purchase
  • Recommended
2 found this review helpful
junk
Tried setting it up for 2 days ,poor instructions and difficult to set up finally brought it back to Home Depot thinking it was a defect .
by
Response from NSi IndustriesNov 9, 2021
Please contact Tech Support at 888-500-4598 for programming help. NSiIndustries
  • Verified Purchase
Awful experience, Waste of time and money. Tork people very rude.
Didnt work at all, I called the Tork support but they cant care less, talk me down and said they need me to test voltage. I hired a licensed electrician for the installation and it was good. My problem was that it starts (my pump) at random times after the last schedule time, when I tried to shutdown with the overwrite button it doesnt work the indicator shows on and off but the power is not cut, to shutdown my pump I have to cut power from the braker, turn it back on at the next day. Tork client service just didnt listen to my problem and decided to say without a voltage meter I cannot help you. I said if they dont help me I will have to return it, they said do whatever you want. Very rude people. Bad bad experience.
by
Response from NSi IndustriesOct 25, 2021
Please contact Tech Support at 888-500-4598 for warranty details. NSiIndustries
  • Verified Purchase
I installed it today and so far works great.
I installed it today and so far works great.
by
  • Verified Purchase
  • Recommended
Failed at 13 months…not worth the risk
Purchased on June 1, 2020 to replace a failed mechanical Tork timer…figured the digital would be easier to set and not have issues with set screws loosening on the on/off triggers. We live in upstate NY and use this for our pool filter motor, so power to the new digital timer was completely switched off at the breaker for more than 7 months. Came home from being away this weekend to find the timer was making a loud, odd noise when on. Switched it off, checked the filter motor to make sure there weren’t issues, then turned the timer back on manually. I saw the light of open electrical current behind the cover plate on the timer and heard a loud feedback noise. Shut it off again…will rip it out and throw it in the garbage where it deserves to live. $20 price increase in the last year to boot…no need to buy the same crap and risk burning down my house because of bad quality. I’m glad I caught it before this turned into a catastrophic issue, and am hoping it did not damage the pool filter motor. Maybe I just got a bad one, but will not be buying another.
by
Response from NSi IndustriesJul 7, 2021
Thanks for your review sounds like your unit relays where damaged by an electrical surge we do offer a limited warranty and can replace it with a different digital unit contact Tech Support at 888-500-4598 NSiIndustries
    1 found this review helpful
    It works, but that's about all I can say for it. I bought one and got it installed only to find o...
    It works, but that's about all I can say for it. I bought one and got it installed only to find out that the clock didn't work. Apparently, there is a battery of some kind that operates the clock and if it goes dead, the clock doesn't work. The second one did work and the clock was actually blinking when I opened the box, which I thought very odd. Maybe that's why the first one was dead, since the build date on it was from March of 2020, I bought it in December. The second one was from September. I just hope that the battery charges while it is powered up. The first never came on, even after leaving it powered for 48 hours, so maybe there was something else wrong. The second thing about it is that it is digital, but that's about high tech as it gets. This thing does know when dawn and dusk are, it doesn't reset to daylight savings time, it doesn't really have much in the way of programming options. It looks good, it's easy to install, but way over priced for what you get. I can get way more from a Lutron timer switch.
    by
    • Pro
    • Verified Purchase
    This was exactly what I needed to run my well...
    This was exactly what I needed to run my well pump during the dry season. When the water table is low my pump removes water faster than it can flow back into the (old) casing and the pump can run dry. With this timer I am able to run multiple short cycles with enough time between them to restore the water level. A lot cheaper than digging a new well or replacing a pump! Video was helpful with the install/wiring. Programming is simple and fairly intuitive.
    by
    • Verified Purchase
    Installed myself to replace an old mechanical unit to turn...
    Installed myself to replace an old mechanical unit to turn on and off water heater. Works really well for my intended use but I agree with the reviews the instructions are not good that came with the unit. I did find a better chart on their online instructions that helped which I might add was the opposite of the paper instructions. I like being able to program weekdays separate from weekends. Hopefully it will last over 20 years like the mechanical unit. That unit wasn’t keeping time correctly any more without adjusting the time manually.
    by
    • Verified Purchase
    Rating provided by a verified purchaser...
    Rating provided by a verified purchaser
    by
    • Verified Purchase
    Instructions clear, installed and operating in only a few minutes.
    Instructions clear, installed and operating in only a few minutes.
    by
    • Verified Purchase
    • Recommended
    Showing 1-10 of 53 reviews
