Internet #205741246

Model #007F5

Store SKU #463132

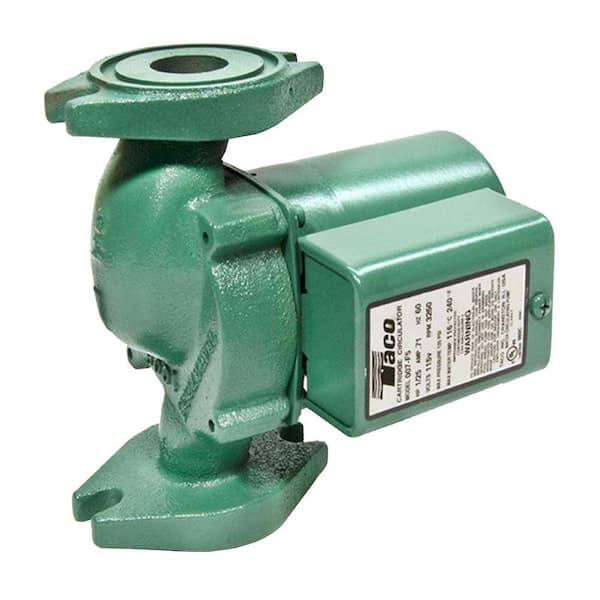

1/25 HP Cast Iron Circulator Pump

  • Most popular circulator in the US
  • Standard 63/8" Flange to Flange dimention
  • Compatable with 3/4",1",114"&11/2" standard circulator flanges
  • See More Details

Frequently Bought Together

+
+
Price:
$10060

Product Overview

The Taco Circulator Pump is designed for quiet, efficient operation. It features a self-lubricating, maintenance-free design that makes it ideal for a wide range of applications. This item is for use only in non-potable (non-human consumption) water applications.
  • California residents
  • Hydronic circulator for a heating application
  • Field-serviceable cartridge design
  • Designed for quiet, reliable, efficient operation
  • Self-lubricating, maintenance-free design and flow characteristics make it ideal for a wide range of applications
  • Note: product may vary by store

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
6.75
Product Height (in.)
5.5
Product Width (in.)
7

Details

Accessory Type
BOILER REPLACEMENT PART
Product Weight (lb.)
7
Returnable
180-Day

Warranty / Certifications

Manufacturer Warranty
1 YEAR

Questions & Answers

77Questions31Answers

How do you wire it up and does it run constantly

Asked by Tom November 28, 2020
3
Answers

Yes it will run all the time. To wire it up using a Philips screwdriver open the box on the side and you will see 3 wires. Black white green. I hooked mine to a timer so it only runs when I need it to.

Is that Adam available on route 23 North Home Depot

Asked by Radwan May 10, 2020
2
Answers

Try calling them.

For my Peerless boiler, can I replace my current Honeywell Protector Relay R8184G with a R845A?

Asked by plumbcurious April 5, 2020
1
Answer

An R8145G is a cad cell burner relay and an R845A is a circulator relay. Thus they are for completely different purposes. If you would like to talk about your system you can give me a call at 978 651 3301 Chris

Can water be pushed through a mixing valve or do I need to pull it through with a pump like this?

Asked by 31D266 April 3, 2020
2
Answers

Without seeing your installation, usually a mixing valve has pressure on the feed side and will feed into the loop as the pump pulls or pushes the water

My current heat pump runs constantly. Is there a repair or do I need to replace the pump?

Asked by Chris February 6, 2020
5
Answers

I am not a pro. But it would run constantly if the thermostat is asking for it. Is the temperature not going up in that particular zone? You may want to check and release air in the system. If the Pump gets too hot; its going to fail and you will have to replace it. If I were you I would look to see why its running all the time. Check to see the temperature and pressure of the furnace.

Is there a replacement pump for Taco 007-BF3-1w circulating pump?

Asked by Pumper January 14, 2020
3
Answers

Yes at Home Depot

doesn’t heat all baseboards in first floor. is there a stronger unit or something II can do

Asked by Abe January 12, 2020
5
Answers

Sounds like you have air in your zone

what causes pump to stop working after 1 yr old ? Can it be repaired /

Asked by James January 5, 2020
4
Answers

Pumps can be rebuilt using the repair kits, it may be easier and cost effective to just replace

will this replace the 009 F5 pump on my older classic boiler?

Asked by landj December 6, 2019
3
Answers

The best way to answer the question is YES! All you need to do is buy a replacement with the same flange size and you are good. If you can't then you need to replace the pump and flanges and then still good

I'm thinking about mounting this circulator horizontally in a run of 1" copper pipe; given that t...

Asked by MrCofDG November 27, 2019
3
Answers

If your pipes are secure, it should not be an issue. The pump is fairly light.

1/25 HP Cast Iron Circulator Pump - page 2

Customer Reviews

  • 230 Customer Reviews
  • 4.6 out of 5 stars overall
91% of customers recommended.
Overall Ratings
5star-icon(172)
4star-icon(39)
3star-icon(3)
2star-icon(5)
1star-icon(11)
Sort By:
I replaced a pump that was allowing hot water to bleed into the pipes, enough to simulate that th...
I replaced a pump that was allowing hot water to bleed into the pipes, enough to simulate that the heat was turned on. The new pump solved that problem,
Was this helpful?
1
0
Perfect fit comes with everything you need
Perfect fit comes with everything you need
Was this helpful?
0
0
I purchased the whole set but really only thought I...
I purchased the whole set but really only thought I needed the cartridge. Turns out I needed the top part as well. I took other one down and re wired the new one copying what my plumber had done 10 years ago. Easy and fast I’m a 40 year old handy female. Put it all Back together keeping the old base in place and just using the top Piece and the cartridge. Screwed it all back together and works like a charm. Back to having my hot water instant again.
Was this helpful?
0
0
Perfect fit, accurate measurements, easy installation. ...
Perfect fit, accurate measurements, easy installation.
Was this helpful?
0
0
Replacing a Taco circulator pump is an easy change out. Power off the furnace and close the ball ...
Replacing a Taco circulator pump is an easy change out. Power off the furnace and close the ball valve on the inlet side. Next depressurize the piping and loosen the four mounting bolts. Open the AC power cover and remove the wire nuts. Now you can remove the old pump and slide the new one in it's place. ALWAYS replace the gaskets since they become brittle from the heat of the adjoining piping. Tighten the bolts uniformly, reconnect the AC power and replace the access side cover. Reopen the ball valve and slowly re-pressurize the pipes watching carefully for leaks. The weak area of these pumps is the electrical terminal strip inside the access cover. They often corrode causing a loss of power to the pump. It's a low cost (<$100) repair for a do-it-yourself handymen.
Was this helpful?
13
0
I originally had a B&G little red booster LR20BF circulation pump, which went out on me as the he...
I originally had a B&G little red booster LR20BF circulation pump, which went out on me as the heating season started (note to self: always check your heating system just BEFORE it gets cold!). I was thinking of getting a newer B&G model as a replacement because I feared that if I switched brands I might encounter problems with fitting it. Fortunately Luis at Elmont helped me and suggested I try the Taco pump, citing its low cost and ease of replacement (once you put in the pump, you can replace its cartridge without having to take off its mount). The Taco cost less than 1/3rd of what the B&G pumps cost (though to be fair, the B&G lasted for around 30 years and the other two pumps I have are still working), plus they're water lubricated so no need to remember to oil it, unlike the B&G which needs a few drops of 5w 30 synthetic oil every season. I was easily able to get the Taco to fit the brackets that were used for the B&G, and the height is the same (6 3/8ths inches). The Taco runs quiet, about the same as the LR20BF, but has no fan which is why it gets hotter than the B&G. Wiring was real easy, no need to observe polarity - the pump can't run in reverse. At first when I refilled my boiler and started it up, the Taco took a bit of time before it kicked in, making me a bit nervous that something was up. However once I shut the boiler on and off once more, it began to work and so far three days in I have no complaints. I have yet to test it in sub-zero temperatures. The one minus is that the instructions could be a bit better with diagrams. However its fair to note that most people are scared to death of messing with their boilers (and not without good reason - I had several bleeding valves go on me in the process), so this is usually a job reserved for professional plumbers. But if you have isolation valves or can drain your boiler, it's totally a DIY job - just know what to do if a neighboring bleeding valve springs a leak on you (tighten the packing nut and/or cap it at the spout, I used a garden hose cap) - I've heard of plumbers charging a thousand bucks to do such a job. There are videos on youtube of people swapping out B&Gs and putting in Tacos which are helpful.
Was this helpful?
4
0
Delta Colorado
The standard pump of the industry, have used TACO pumps for 50 years.
Quality :
5
Value :
5
This pump was a complete pump that will fit many instances in my hot water system. TACO is the best because you can just replace the motor insert in most cases, not the whole pump. The "field" windings stay in the motor enclosure and the "pump - armature" are replaced separately with no wiring involved. 4 screws and you are done.
Was this helpful?
1
0
The pump was easy to install and works as it...
The pump was easy to install and works as it should Will buy again
Was this helpful?
0
0
Was this helpful?
0
0
I have four of these pumps in my heating system...
I have four of these pumps in my heating system and always try to keep an extra for backup. Thank you
Was this helpful?
0
0
Review this Product
Share your thoughts with other customers
