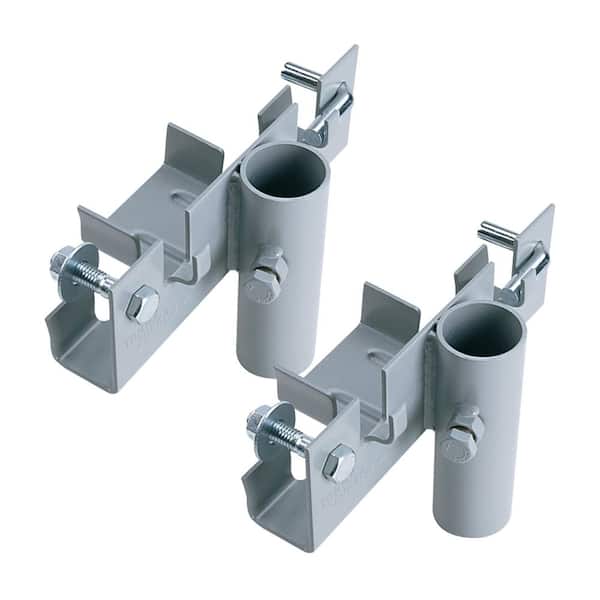

Tommy Docks Straight Connecting Brackets are utilized to connect 2 dock sections together either end to end or side to side. It stabilizes the load in a cradle design to reduce the stress on dock frame and dock post pipes. Effectively supporting your dock sections. Comes complete with mounting hardware and instructions conveniently packed inside pipe tube.
Gray polyester powder coat paint for superior rust protection
Zinc-plated mounting hardware for added corrosion resistance
Stainless steel adjusting bolt and weld nut on pipe sleeve allows for adjustment year after year without rusting and seizing
Can be used with any 2-in nominal thickness lumber
All assembly hardware included
Tommy Docks hardware isn't meant to be used in brackish or salt waters
Bracket hardware conveniently located inside pipe sleeve, remove the plastic orange cap to access
½"-13 x ¾" hex head cap full threaded screw-on pipe sleeve
½"-13 x 2-1/2" hex head cap full threaded screw for mounting
Q:What factors determine to use Normal Duty or Heavy Duty?
by|Sep 10, 2023
1 Answer
Answer This Question
A: The size of the layout, the depth throughout the dock, the body of water it is on, etc.
by|Sep 11, 2023
Q:What is the width of bracket straight out from post? Can it hold one or two 2X6's?
by|Apr 23, 2023
1 Answer
Answer This Question
A: It is 1.5". Only one 2x6 will fit inside.
by|Apr 24, 2023
Q:Are these the regular duty or the heavy duty?
by|Jun 15, 2022
2 Answers
Answer This Question
A: If you bought these as a pair, chances are they are the regular duty brackets (model # A-50000-2 accommodating pipe with an O.D. of 1.66"). The heavy-duty brackets (model # TD-1000-3) use pipe with an O.D. of 1.9" and cost about $42.95 each. We use the heavy- duty brackets when we are building boardwalks for hiking trails with spans of 10' and using 2x10" PT dimensional lumber for stringers.
by|Jun 19, 2022
A: Normal duty, ID 1.66".
by|Jun 15, 2022
Q:are these the correct brackets for connecting 2 sections of aluminum tommy dock ?
by|Jul 30, 2018
8 Answers
Answer This Question
A: Yes, you can use this with aluminum.
by|May 5, 2023
A: Yes, have three sections of Tommy dock , so I have two sets of them. You will need the corner peices for the end of the dock. They are very heavy duty and will last for a long time to come. Made a great dock!
by|May 5, 2023
A: I used these to join two wood sections can’t speak to the aluminum. If it were me I would look for a like material bracket. Steel and aluminum will corrode over time.
by|May 5, 2023
A: Yes, these are the correct in-line connectors for either wood or aluminum dock sections
by|May 5, 2023
A: Yes they are very simple to do.
by|May 5, 2023
A: Yes!
by|May 5, 2023
A: Yes. They will work perfectly with the aluminum sections or the cedar sections. Don’t forget to get the corner brackets, both “inside” and “outside” if you plan to add a right angle to the end of the straight walk out section.
by|May 5, 2023
A: Yes.
by|Jun 4, 2020
Showing 1-4 of 8
Customer Reviews
4.6 out of 5
(53)
4.6
out of 53 reviews
90% recommend this product
5
38
4
9
3
3
2
2
1
1
Filter by:
Showing 1-10 of 53 reviews
Jun 6, 2017
All Tommy Dock brackets and hardware are top of the line. Excellent quality and super easy to us...
All Tommy Dock brackets and hardware are top of the line. Excellent quality and super easy to use. Used these with the outside corner bracket, poles, and mud plates to build a 4'x10' dock on my lake in Iowa. Very solid dock, legs hold well and doesn't wobble at all. I'm already planning out my add ons for next year! And with these brackets, adding on and reconfiguring will be really easy too! Love this product, glad I ended up choosing these after doing a lot of research.
by
Verified Purchase
Recommended
Jul 29, 2023
Bolt stripped out
first use bolt hole stripped out. Now I have to get a tap to fix it. Expensive
by
Jul 6, 2023
Worked as expected, perfect
by
Verified Purchase
Aug 27, 2022
connecting two dock pieces
these connectors work well and were easy to install
by
Verified Purchase
Jul 7, 2022
by
Verified Purchase
Jul 1, 2022
The parts we ordered are great. However, the issue was...
The parts we ordered are great. However, the issue was with Home Depot. I The website says 2 pack and we only received one. After a few phone calls we placed another order and again only received one. A few more calls later a credit was issued and we were charged the appropriate amount for the two we ended up receiving.Hopefully they have cleared up the issue in the warehouse so the customer gets the correct quantity.
by
Verified Purchase
Jun 15, 2022
by
Verified Purchase
Jun 2, 2022
The brackets were great but I had issues with other...
The brackets were great but I had issues with other dock components. Mainly, the drilled holes in the aluminum frames were not made well. They had to be be drilled slightly larger, if not the bolts/nuts would become bound and strip. Extra hardware was included though. Also, some of the cedar planks were of poor quality (ie... too knotty, soft, or cracked). Customer service was great, replacing planks very quickly but they were too long and had to be cut on site. All in all nice dock.
by
Verified Purchase
May 19, 2022
by
Verified Purchase
Apr 11, 2022
Strait connectors work great
Haven't been able to use it yet. Getting ready to build docks in another couple weeks yet.
