Internet #205026227

Model # 20339

Store SKU #1000042923

0021038203393

Toro

Recycler 22 in. SmartStow High Wheel Variable Speed Walk Behind Gas Self Propelled Mower

$ 339 99
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

+
+

Product Overview

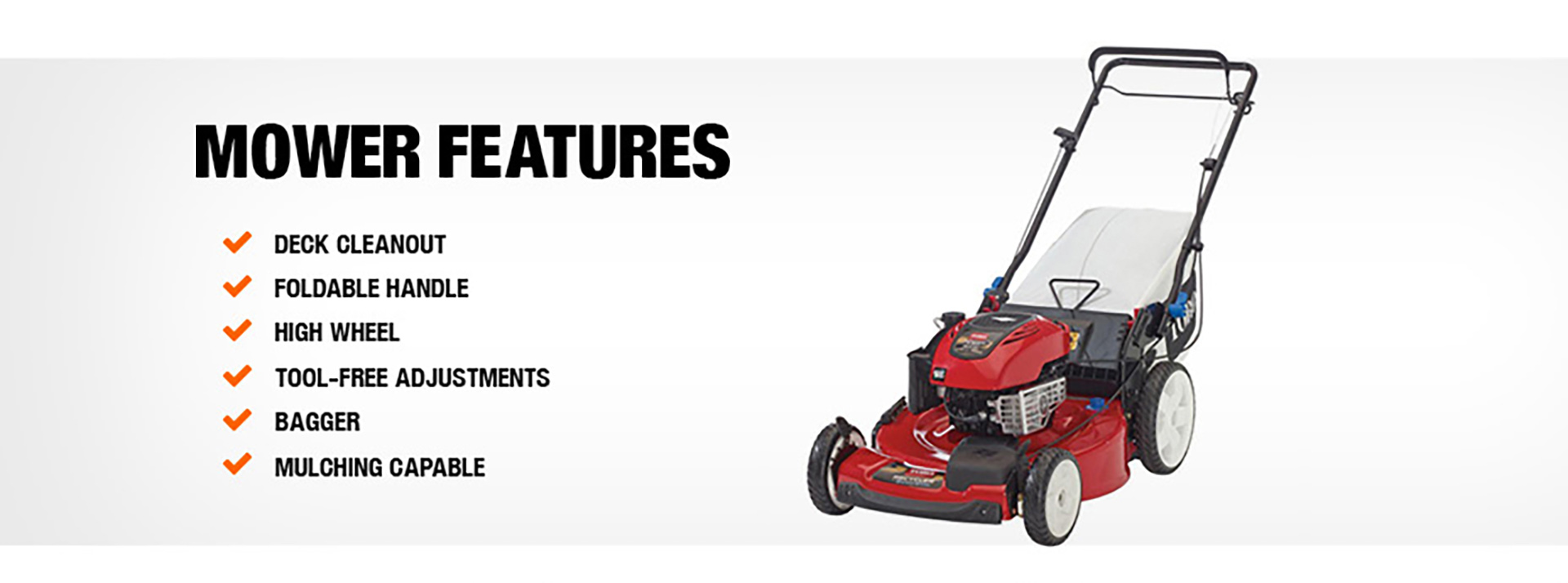

Mower Features
Gas-Powered
Terrain - Uneven with obstacles
2 Year Warranty
15in Cutting Width
1 Blade
cutting options: bag, mulch, side-discharge
Easily cut your yard with the Toro Recycler 22 in. High Wheel Front Wheel Drive Variable Speed Self-Propelled Gas Lawn Mower with a Briggs & Stratton Engine. Able to mow and mulch, this lawn mower has high-quality smart features and proven dependability. It also conveniently stores upright to save space in your garage.
  • Save storage space; takes up 70% less space in your garage by storing upright. simply fold, lock and store with smartstow
  • Powered by a Briggs & Stratton 7.25 ft. lb. gross torque 163cc OHV EXi engine with ready start - no need to prime or choke the engine
  • No oil changes for the life of the engine with Just check and add oil, check the oil tank level and add oil as needed
  • Reduce your mowing effort, the self-propel front-wheel drive system makes mowing easy by moving the mower forward for you, variable-speed provides better maneuverability when mowing in tight spaces
  • get a healthy-looking lawn by returning nutrient-rich clippings to the soil with the recycler cutting technology and strong steel 22 in. cutting deck
  • Lightweight and maneuverable, 11 in. rear wheels provide good traction for normal mowing conditions or rough and uneven terrain
  • Exceptional versatility with mulch, bag, and side-discharge; reduce clumps and add nutrients with the mulching option, get that perfectly manicured look with bagging, or use side discharge when cutting tall, thick grass
  • Bagging to mulching made easy with the quick connect bagging system
  • Easily clean the underside of the deck with the washout port; just attach a hose to the mower deck; it is a convenient way to clean the bottom of the deck - maintaining optimum airflow for high performance
  • Manicure lawn to your specifications with 9 cutting positions with 1-4 in. cutting height range
  • Space savings are in relation to the space consumed by a Toro 22 in. walk power mower that is stored with the handle in the standard operating position
  • follow the blue; this model has the following blue smart features from Toro: smartstow
  • Protect your mower's engine by adding Toro Top-it-Off SAE 30 4-Cycle Premium Lawn Mower Engine Oil. Just Top-it-Off as needed.
  • Gross torque of this engine was laboratory rated at 2600 RPM per SAE J1940 by the engine manufacturer, as configured to meet safety, emission and operating requirements; the actual engine torque on this class of mower will be significantly lower
  • Create your perfect Toro Recycler lawn mower online with the Click here to view Toro Builder Construct your mower by choosing the deck, engine, drive system and many more options, including accessories. Build yours now!
  • Use Toro fuel stabilizer to maintain your engine and increase the longevity of your mower.



  • Looking for the legendary Toro mower performance with the convenience of battery? Check out the 22 in. Recycler 60V Mowers
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Product Overview

Model #: 20339
Sku #: 1000042923
Internet #: 205026227

Easily cut your yard with the Toro Recycler 22 in. High Wheel Front Wheel Drive Variable Speed Self-Propelled Gas Lawn Mower with a Briggs & Stratton Engine. Able to mow and mulch, this lawn mower has high-quality smart features and proven dependability. It also conveniently stores upright to save space in your garage.

  • Save storage space; takes up 70% less space in your garage by storing upright. simply fold, lock and store with smartstow
  • Powered by a Briggs & Stratton 7.25 ft. lb. gross torque 163cc OHV EXi engine with ready start - no need to prime or choke the engine
  • No oil changes for the life of the engine with Just check and add oil, check the oil tank level and add oil as needed
  • Reduce your mowing effort, the self-propel front-wheel drive system makes mowing easy by moving the mower forward for you, variable-speed provides better maneuverability when mowing in tight spaces
  • get a healthy-looking lawn by returning nutrient-rich clippings to the soil with the recycler cutting technology and strong steel 22 in. cutting deck
  • Lightweight and maneuverable, 11 in. rear wheels provide good traction for normal mowing conditions or rough and uneven terrain
  • Exceptional versatility with mulch, bag, and side-discharge; reduce clumps and add nutrients with the mulching option, get that perfectly manicured look with bagging, or use side discharge when cutting tall, thick grass
  • Bagging to mulching made easy with the quick connect bagging system
  • Easily clean the underside of the deck with the washout port; just attach a hose to the mower deck; it is a convenient way to clean the bottom of the deck - maintaining optimum airflow for high performance
  • Manicure lawn to your specifications with 9 cutting positions with 1-4 in. cutting height range
  • Space savings are in relation to the space consumed by a Toro 22 in. walk power mower that is stored with the handle in the standard operating position
  • follow the blue; this model has the following blue smart features from Toro: smartstow
  • Protect your mower's engine by adding Toro Top-it-Off SAE 30 4-Cycle Premium Lawn Mower Engine Oil. Just Top-it-Off as needed.
  • Gross torque of this engine was laboratory rated at 2600 RPM per SAE J1940 by the engine manufacturer, as configured to meet safety, emission and operating requirements; the actual engine torque on this class of mower will be significantly lower
  • Create your perfect Toro Recycler lawn mower online with the Click here to view Toro Builder Construct your mower by choosing the deck, engine, drive system and many more options, including accessories. Build yours now!
  • Use Toro fuel stabilizer to maintain your engine and increase the longevity of your mower.



  • Looking for the legendary Toro mower performance with the convenience of battery? Check out the 22 in. Recycler 60V Mowers
  • Click here for more information on Electronic Recycling Programs
  • California residents see Prop 65 WARNINGS

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Customers Also Compared These

Compare Similar Products
Brand Toro Toro Toro Toro
Name 22 in. Kohler High Wheel Variable Speed Gas Walk Behind Self Propelled Lawn Mower Recycler 22 in. SmartStow High Wheel Variable Speed Walk Behind Gas Self Propelled Mower Recycler 22 in. SmartStow Personal Pace Variable Speed High-Wheel Drive Gas Walk Behind Self Propelled Lawn Mower Recycler 22 in. Briggs and Stratton Personal Pace Self Propelled Gas Walk-Behind Lawn Mower with Electric Start
Price
Was $329.00
$309.00
Save $20.00 (6%)
$339.99
$399.00
$399.00
Ratings (4640) (3011) (1304) (3566)
Power Type Gas Gas Gas Gas
Drive Type Front-wheel Drive Front-wheel Drive Rear-wheel Drive Rear-wheel Drive
Features Bagger,Deck cleanout,Foldable handle,Mulching Lawn Mower,Tool-free adjustments Bagger,Deck cleanout,Foldable handle,Mulching Lawn Mower,No Oil Change Required,Tool-free adjustments Bagger,Deck cleanout,Foldable handle,Mulching Lawn Mower,No Oil Change Required,Tool-free adjustments Bagger,Deck cleanout,Foldable handle,Mulching Lawn Mower,No Oil Change Required,Tool-free adjustments
Refurbished No No No No
Size of Yard 1/4 - 1/2 Acre 1/4 - 1/2 Acre 1/4 - 1/2 Acre 1/4 - 1/2 Acre
View Product View Product View Product View Product

Specifications

Dimensions

Assembled Depth (in.)
58.9 in
Assembled Height (in.)
38.9 in
Assembled Width (in.)
23.6 in
Blade Length (in.)
22
Cutting Width
22 inches
Front Wheel Size (in.)
8
Mower Deck Width
22
Rear Wheel Size (in.)
11

Details

Assembly Required
Yes
CA (CARB) Compliant
CARB Compliant
Cutting Height Options
9-position
Cutting Options
Bag,Mulch,Side-Discharge
Deck Material
14 Gauge Steel
Deck Type
Stamped
Drive Type
Front-wheel Drive
Engine Displacement (cc)
163
Engine Make
Briggs and Stratton
Engine Torque (ft.-lb.)
7.25
Features
Bagger,Deck cleanout,Foldable handle,Mulching Lawn Mower,No Oil Change Required,Tool-free adjustments
Fuel Tank Capacity (gallons)
.25
Included
Engine oil
Lawn Mower Type
Self-Propelled Lawn Mower
Maximum Cutting Height (in.)
4
Minimum Cutting Height (in.)
1
Mower Size Type
Standard
Number of Blades
1
Number of Handlebar Positions
1
Oil Capacity (oz.)
20
Power Type
Gas
Product Weight (lb.)
78lb
Rear Wheel Height
High Wheel
Recommended Oil Type
SAE 30
Recommended Terrain
Flat,Uneven
Refurbished
No
Returnable
30-Day
Size of Yard
1/4 - 1/2 Acre
Start Type
Pull Cord
Walk Behind Mower Type
Self Propelled

Warranty / Certifications

Manufacturer Warranty
2-Year Full Warranty, 3-Year Guaranteed to Start

Specifications

Dimensions

Assembled Depth (in.)
58.9 in
Assembled Height (in.)
38.9 in
Assembled Width (in.)
23.6 in
Blade Length (in.)
22
Cutting Width
22 inches
Front Wheel Size (in.)
8
Mower Deck Width
22
Rear Wheel Size (in.)
11

Details

Assembly Required
Yes
CA (CARB) Compliant
CARB Compliant
Cutting Height Options
9-position
Cutting Options
Bag,Mulch,Side-Discharge
Deck Material
14 Gauge Steel
Deck Type
Stamped
Drive Type
Front-wheel Drive
Engine Displacement (cc)
163
Engine Make
Briggs and Stratton
Engine Torque (ft.-lb.)
7.25
Features
Bagger,Deck cleanout,Foldable handle,Mulching Lawn Mower,No Oil Change Required,Tool-free adjustments
Fuel Tank Capacity (gallons)
.25
Included
Engine oil
Lawn Mower Type
Self-Propelled Lawn Mower
Maximum Cutting Height (in.)
4
Minimum Cutting Height (in.)
1
Mower Size Type
Standard
Number of Blades
1
Number of Handlebar Positions
1
Oil Capacity (oz.)
20
Power Type
Gas
Product Weight (lb.)
78lb
Rear Wheel Height
High Wheel
Recommended Oil Type
SAE 30
Recommended Terrain
Flat,Uneven
Refurbished
No
Returnable
30-Day
Size of Yard
1/4 - 1/2 Acre
Start Type
Pull Cord
Walk Behind Mower Type
Self Propelled

Warranty / Certifications

Manufacturer Warranty
2-Year Full Warranty, 3-Year Guaranteed to Start

Questions & Answers

How is traction with the front wheel drive versus the rear wheel drive recyclers?

It would seem with a bag it would start to lose traction with all the weight to the rear.
Asked by: Mainecoon
I just bought mine yesterday and I hate it. It's very hard to mow a straight line with this thing. The front-wheel drive makes it really squirrely because of how it pulls. Also, the run bar is very difficult to grab while compressing the drive bar as well. It's a thin bar and when trying to use less than full power it gets tedious holding it.
Answered by: Michael
Date published: 2019-04-12

Does this model need a periodic oil change? Do you have to run the engine till all the gas is used up after each cut? Can it go backwards?

Asked by: gean
I would change the oil at least yearly at the minimum even though it says no oil change needed but just to top it off. I don't care what they recommend a cleaner running engine will last longer than a dirty one. These engines are usually made to fail around 100 to 125 hours of use however. It is built into the plastic parts of the engine such as the camshaft and gears. Yes they are plastic so I would definitely change the engine oil yearly no matter what is recommended. We ......well at least I do......as consumers want longevity out of our mowers but they are a profit making businesses and want you to buy a new mower every 5 years. These are considered throw away mowers and usually when they are ready for major repairs they are not worth fixing when the bill hits 150 to 200 dollars or sometimes even more than a new mower. Think about it. Plastic internal engine parts. GM has used plastic timing gears since the 80s yet they were considered reliable. When I rebuilt my engines I always replaced the plastic that sometimes showed broken teeth and wear I replaced the plastic gears with Cloyes true roller and sometimes double roller timing chain and gears. Why......? Because they were a heck of a lot better in performance and more reliable. Not as quiet as plastic but definitely more reliable in my opinion as a mechanic. Plastic generates less heat and noise which is why they use them in the car and the lawn mower. It is a phenolic resin type plastic usually made to last around 5 years or 100 to 125 hours of use in the lawn mower. The reason they say just add the oil and not to change it is because they say less heat is generated by the engine because of the plastic overhead cam and gears, therefore the oil doesn't break down from the heat.......well.......I am sure that is true but you still have blow by from the piston rings I would think but I think they claim to have closer machined tolerances between the piston and the cylinder wall too, but for me I am changing the oil I have my own recommendations for longevity and the number one major recommendation is clean oil and a Pennzoil sae 30 weight in the summer months. But most people throw stuff away anyway after a few years and they are off to buy new........a small engine mechanic a retired veteran who has a lawn mower repair business in my county Has people who bring him mowers free that many times are usually only 2 to 3 years old but quit running. The people who drop them off don't even want them repaired because they want to go out and buy new. He usually changes the destroyed carburetor due to the ethanol in fuel and has it running like new or checks the internals like the plastic cam and gears etc. and has them running like new. So do I blame Briggs and Stratton for building a 5 year throw away mower.......? Not in any way. They know that most people don't want to change oil and they don't want a mower more than 5 years old so why make one that will last any longer anyway......? On their end it's .....smart .......very smart, but for the customer who wants longevity......MAN....... THAT SUCKS
Answered by: Mechanic
Date published: 2019-02-17

Does this mower come assembled, I am recently widowed and need now before I purchase this mower

Does this mower come assembled, I am recently widowed and need now before I purchase this mower
Asked by: ktel
is it necessary to add a stabilizer to the gas?
Answered by: bingo
Date published: 2019-06-07

Can you store it folded up with gas and oil in it ?

Asked by: bryzzer
Yes- no leaks. And much smaller footprint
Answered by: LeeB
Date published: 2019-05-02
  • y_2019, m_6, d_16, h_18CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_229
  • loc_, sid_205026227, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 58ms
  • QUESTIONS, PRODUCT

Customer Reviews

Recycler 22 in. SmartStow High Wheel Variable Speed Walk Behind Gas Self Propelled Mower is rated 4.2 out of 5 by 3009.
Rated 5 out of 5 by from I have owned many different lawnmowers over the past 55 years, but nothing compares to the ease o... I have owned many different lawnmowers over the past 55 years, but nothing compares to the ease of use, easy start, maneuverability, minimal storage space, and cutting quality of this lawnmower! Hands down the best mower on the market in my opinion! The large wheels on the rear, and the “touch control” of the front wheel drive (drive bar underneath the handle bar) make this mower unbelieveably easy to maneuver around landscaping in any condition. The only improvement I could suggest would be to add a larger “sealing” strip where the lawn clippings bag meets the discharge chute cover to reduce the amount of grass blow-by into the face of the operator. But this issue is reasily remedied by buying a 6’ piece of 1/2” or 3/4” foam pipe insulation (used on copper water pipe in basements and attics) from HD, cut it to the width of the bag frame, and split apart to cover the top of the bag frame (where it meets the chute lid). This will eliminate any grass clippings blow-by. Use the remainder of the foam pipe insulation to seal the gap between your car’s front seats and the center console to catch dropped items like french fries, etc. Enjoy!
Date published: 2019-03-28
Rated 4 out of 5 by from I like the fact that the belt is enclosed were no grass clippings can accumulate under the belt/t... I like the fact that the belt is enclosed were no grass clippings can accumulate under the belt/transmission assembly cover. I like the fact that I can set it up to give the under deck a really good cleaning rather then use the deck wash all of the time. This mower has plenty of power which I really like and there were spots in my yard that was really tall. That is a real plus. After looking everything over and checking everything out this mower looks like it is made quite well and has an attractive look. I'm not sure if I like the "Starts Every Time" feature, but maybe after a few times starting my new mower I will get to liking it after using a manual choke for so many years. It will take some getting use to using the variable speed too since this is a totally different experience for me. It would be nice if this mower had a quick connect connector for the deck wash so we don't have to screw the hose in place each time.
Date published: 2019-04-17
Rated 1 out of 5 by from DO NOT waste your money on this lawnmower. My husband & I purchased it in August last summer. We ... DO NOT waste your money on this lawnmower. My husband & I purchased it in August last summer. We previously had a Toro that lasted us 12 years, it was great. We thought we couldn't go wrong with the Toro. We used the new mower maybe 5-6 times before winterizing & storing it through the winter months. Now 9 months later, it will not start. He checked the oil, replaced the spark plug, tried sea foam. It started briefly & a puff of white smoke blew & the engine shut off again. We cannot take it back to Home Depot as we did not purchase the extended warranty & we are past the 30 day return policy. Toro wants us to take it to a certified dealer to look at it. We haven't even owned this mower for a full year & already we're having to take it in for repairs. After looking online it sounds like this is a common problem with the Briggs & Stratton engine. Please read the reviews on this web site: https://www.consumeraffairs.com/homeowners/briggs-and-stratton.html?page=3 So disappointing that a Home Depot would even sell such garbage product. Save yourself the time & money, don't buy anything with a Briggs & Stratton engine.
Date published: 2019-05-10
Rated 4 out of 5 by from Worth it just for the storage I really wanted to give it 5-stars because I LOVE this mower, but I'm going to 4 because after using it a few times, there is one thing that I wish was different and need to highlight: the front wheel drive. It would be perfect if it had rear wheel drive. The front wheel drive does have a weak grip, and it's kind of annoying, but by no means a deal breaker for me. I would buy this again in a heartbeat. I only highlight this for someone that might rely more on the self-propelled feature, as this does weaken it. Now that that's been said, I do love this lawn mower and highly recommend it. Odds are you're buying this for the storage feature, and yes it's everything you dreamed. Folds up for storage, and it's wicked easy to do. Just pull two pins, swing the handle, and tilt her up. The bag works well, as does the mulching. Haven't tried the side shoot but I'm sure that would be fine too. All-in-all, this was a great mower that is perfect for anyone that has limited storage or has to move a lot (IE military).
Date published: 2014-04-30
Rated 2 out of 5 by from Had now over thirty days used 5 times. Nothing like my other Toro’s'. Too light bounces around. P... Had now over thirty days used 5 times. Nothing like my other Toro’s'. Too light bounces around. Paint coming off already. Turn to quick and makes stalling out sounds. Cheap foam around back door. Very cheap air filter, miss the older type. Definitely not the same Quality or concept. This will be my last Toro Purchase, time to find a new company with American craftsmanship and quality. My old one still runs and has original paint years later. Also old one still starts on first pull. However, the front transmission broke just like my other ones before it. I will see how long this front transmission last.
Date published: 2019-05-22
Rated 5 out of 5 by from I named mine 'Tank' Ive been holding off on buying a new mower because they are so expensive, after six months i broke down and bought this one and i love it. out of the box it was pretty much ready to go- just add gas and oil--which it came with a bottle of oil. My grass was 16" at places and it was very wet. I set the wheels to the highest setting n let tank do its job,, effortlessly it went right through the mess and left a pretty nice looking yard in its wake. It started on the first pull, Ive mowed four times on the same tank of fuel and still have more gas to go. I really like how the handle locks into place, it is very solid, Ive never experienced that before. I like the large wheels in the back, it makes lifting the front of the mower n turning it around very easy. Also, the speed of the mower was nice and matched my pace perfectly, i like that too. The added option of side or rear discharge is nice, i haven't used the bag yet for its winter here n the grass is soaked. Overall i am very pleased.
Date published: 2019-02-28
Rated 5 out of 5 by from I bought this one after seeing my son-in-laws Self Pace Toro. My grass was rather long and think... I bought this one after seeing my son-in-laws Self Pace Toro. My grass was rather long and think. For the first cut, I put it on the highest setting and it handled cutting perfectly. This is the first lawn mower I've had that didn't bog down when cutting my grass, like I said, it's thick. I've lowered the cutting height just a bit and have cut twice more, again, it handled it great. The last time, I bagged the grass in my back yard and was pleasantly surprised. I only had to empty the bad twice, I would have had to empty the bag on my last lawn mower at least 3 times. It has started on the first or second pull each time. The SmartStow is awesome! Gives me so much more room than having to leave the handle down and the mower flat. This is also my first Self Propelled mower, will never go without it again. I highly recommend this mower, well worth the price.
Date published: 2019-05-14
Rated 4 out of 5 by from 2 minor issues. 1st the documentation does not mention how much oil need to be put in. An additio... 2 minor issues. 1st the documentation does not mention how much oil need to be put in. An additional 1/2 second to document that almost all of the oil bottle that came with the unit would be required. 2nd issue - I wish it had a handle adjustment. only one angle and that angle is a little low. I have to bend over a little when operating it. That hurts my lower back and I am fairly short only 5'8". A taller guy is going to need to stoop.A speed adjustment on the self propel would be nice as well. Taller grass require a slower speed.These are all Troy issues and out of your hands. The upright storing is so nice. Now I have room to work in my shed. :) R.
Date published: 2019-06-01
