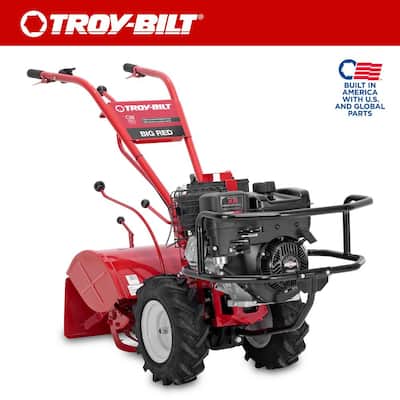

Big Red 20 in. 306 cc OHV Electric Start Briggs & Stratton Engine Rear Tine Forward Rotating Gas Garden Tiller

$269900
Apply Now
$undefined.00 /mo* suggested payments with months* financingApply Now
  • Powerful 306cc Electric Start Briggs & Stratton OHV Engine
  • 4 forward speeds, 1 neutral and 2 reverse speed options
  • Limited-Lifetime Warranty on the Transmission
  • View More Details
Store
0 in stock
Text to Me

Product Overview

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, gardening

Cultivators vs. Tillers

Cultivators are smaller and lightweight, working best in small, established beds. Tillers are powerful and ideal for breaking new ground

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, gardening, power, engine

Power

Powerful engines help quickly turn soil for easier planting in the spring and turning under vegetation in the fall

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, gardening, transmission, warranty

Durability

Troy-Bilt has a limited lifetime transmission warranty on the cast iron gear casting and precision cut bronze gears (select models)

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, tine positions

Rear Tine vs Front Tine

Rear tines push through challenging soil faster and deeper. Front tines work best in established gardens for prepping and maintenance

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, forward rotation tines

Forward Rotating Tines

Forward rotating tines move in the same direction as the wheels and are best used in previously tilled areas.

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, counter-rotating tines

Counter-Rotating Tines

Counter-rotating tines move in opposite direction of the wheels and are best for breaking new ground and hard, challenging soils

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, dual-direction tines

Dual-Direction Tines

Dual direction tines allow you to switch between counter-rotating and forward rotating tines to optimize performance in soil conditions

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, bolo tine design

Bolo Tine Design

3 uniquely shaped tines work together to create finely textured, well-aerated soil (rear tine only)

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, power reverse

Maneuverability

Power reverse allows for flexible handling around rocks and other obstacles

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, warranty

Peace of Mind

2-year limited warranty (Transmission warranty may vary by model)

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, manufacturing location

Pride

Built in America with US and Global Parts since 1937 (excludes cultivators)

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, just one hand operation

Balance and Control

Well-balanced, easy to control design allows guidance with JustOne Hand operation on rear tine tillers

Troy-Bilt, tiller, cultivator, gas cultivator, gas tiller, seasonal use

Seasonal Garden Maintenance

Seasonal Garden Maintenance

The Big Red is the flagship of the Troy-Bilt fleet of rototillers and is fully equipped for the heaviest-duty jobs in gardens over 2,500 sq. ft. Perfect for soil preparation and groundbreaking. The Big Red tiller has the power and durability to tackle all of your garden challenges.
  • All Troy-Bilt rear-tine tillers feature patented bolo tines, which are 3 uniquely shaped tines, each tine is designed to do a separate task, yet work together to create finely tilled soil, ready for planting
  • Just 1-hand operation lets you guide your Troy-Bilt tiller with literally 1-hand, because the machine is engineered to be well-balanced and easy to control, it does the work not you
  • Our rear-tine tillers use a patented cast-iron encased transmission with bronze gear drive that provides so much extra strength and durability, we cover it with a limited lifetime warranty
  • 306 cc 1450 series Briggs & Stratton OHV engine
  • Troy-Bilt big red 20-in rear-tine tiller features an extra-wide tilling path to till large areas faster, and aids in seeding preparation and mixing compost in the pile or into your soil
  • Larger front bumper provides extra protection from accidental damage to landscaping or the engine
  • 16 in. agricultural tires enhance traction and maneuverability in all soil conditions
  • Full-sided tine shields for operator protection
  • Forward-rotating tines perform well in existing flower beds for cultivating, weeding and working in compost or end-of-the-season vegetation
  • 4 forward, 1 neutral, and 2 reverse speeds
  • Adjustable tilling depth up to 7 in.
  • Addition to gardening, tillers can also aid in prepping areas for seeding, mixing compost in the pile or mixing compost into your soil
  • 2-year limited warranty
  • Limited-lifetime warranty on the transmission, including all gears, shafts and housings, against defects in material and workmanship for the life of the tiller (to the original purchaser only)
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Assembled Depth (in.)
62.5 in
Assembled Height (in.)
39 in
Assembled Width (in.)
27 in
Handle Length (in.)
50
Product Depth (in.)
62.5 in
Product Height (in.)
39 in
Product Width (in.)
27 in
Tine length (in.)
12

Details

Adjustable Forward Speed
Yes
Adjustable Handle
Yes
Assembly Required
Yes
CA (CARB) Compliant
CARB Compliant
Commercial
No
Commercial/Residential
Residential
Condition
New
Engine Cycles
4 Cycle
Engine Displacement (cc)
306
Engine Make
Briggs and Stratton Engine
Engine Type
4 Cycle
Features
Adjustable Forward Speed,Assembly Required,Power Reverse,Self-Propelled
Foldable handle
No
Fuel Tank Capacity (gallons)
.8
Maximum Till Depth (in.)
7
Maximum Till Width (in.)
20
Number of tines
4
Number of Tines
4 Tines
Power Type
Gas
Product Weight (lb.)
390 lb
Reconditioned
No
Returnable
30-Day
Reverse
Yes
Start Type
Electric
Tine Material
Metal
Tine Position
Rear Tine
Translucent fuel tank
No

Warranty / Certifications

Certifications and Listings
No Certifications or Listings
Manufacturer Warranty
2-Year Limited Warranty, Limited Lifetime Warranty on the Transmission
