Compact Series 5.4 in. W x 3.2 in. D x 39.4 in. L Trench and Channel Drain Kit with Black Grate (3-Pack : 9.8 ft)

(429)Questions & Answers (107)
$6499
Apply Now
Pay $39.99 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Channel drain snaps together in seconds
  • Anti-float design eliminates the need for rebar anchoring
  • Removeable grate for easy cleaning and maintenance
  • View More Details
caret

Product Details

Because of their low-profile design, the Compact Series Modular Trench Drain systems are perfect for low water flow areas in landscape water drainage projects. Optimal for deviating rainfall water and flowing or stagnant water on property where water tends to collect and pool. Adjacent to homes or at the bottom of sloped areas; Trench Drains provide flexible drainage solutions. Residential uses include yard water drainage for small-grassed suburban properties or large acres of land and farm areas. Easily collect and disperse water from patio areas or pool sides. Commercial water drainage systems allow safe and efficient drainage for office buildings, property, or factory interiors. The flat grates are designed to distribute weight to the drain edges, and the smaller slats are ideal for walking on without worrying about high-heeled shoes getting caught. The bottom of the system contains cut-out section for 3 in., 3.5 in. or 4 in. drainage pipes. The compact Trench Drain is visually appealing due to its sleek, yet sturdy, construction and adds an aesthetic touch it its surroundings. Available accessories include end caps, adaptor pieces, convertor pieces, leaf domes, 90 degree corner pieces, tee pieces, catch basins, slim pits, storm water pits, and alternative grates.
  • Easily removable grate that allows for easy cleaning
  • Anti-flotation design prevents floating and doesn't require staking when setting in concrete
  • Easy clip together design
  • Easy-cut sections every 8 in. and join using our convertors to perfectly fit to any location

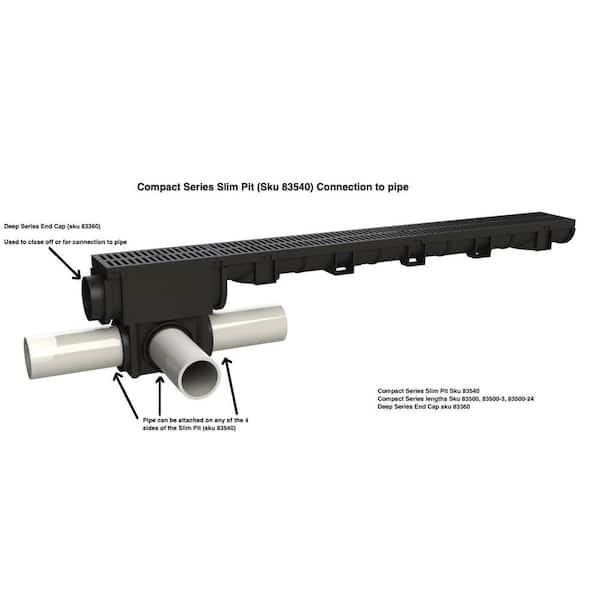

  • Built in bottom outlets at both ends of the trench drain to easily connect 3 in. and 4 in. sewer and drain pipe
  • Manufactured from lightweight, recycled UV stabilized poly propylene polymer
  • Grate manufactured from heavy-duty polymer
  • Meets ADA requirements
  • Heel proof grate
  • Includes 3 lengths of channel and grate, 2 end caps and 1 convertor
  • Dimensions: 3 lengths x 39.37 in. x 5.43 in. x 3.15 in.
  • Click Here to view Features & Benefits of this product
  • Compact series trenches & accessories are not compatible with deep series items
  • Return Policy
caret

Specifications

caret

Questions & Answers

107Questions
caret
Q:Does it come in wider width
by|Feb 11, 2023
1 Answer
Answer This Question

A:  Sorry no. We do have a 5.4" x 5.4" which is our Deep Series

by|Feb 12, 2023
    caret
    Q:Can I use this in a driveway
    by|Feb 3, 2023
    1 Answer
    Answer This Question

    A:  Yes, providing you set in concrete, per the instructions. You can drive a car or pickup truck up to 3300lbs per axle. Not rated for plant or equipment traffic

    by|Feb 4, 2023
      caret
      Q:Does the drain need to be anchored within the concrete or can it be used as a transitional piece between concrete/tile and soil/lawn? If it doesn?t have to be anchored, is it best to put down a layer of drain rock to prevent settling?
      by|Nov 10, 2022
      3 Answers
      Answer This Question

      A:  Not sure it would do much in your lawn...French drain is better for that. I put it in concrete with rebar stakes in front of the garage. You could use it in your concrete or tile and transition to French drain.

      by|Nov 13, 2022

        A:  The drain doesn't need to be anchored if using concrete. The concrete will anchor the drain when it flows between the gaps at the feet of the channel preventing floating. IF no concrete is used, it is okay to rebar and tie to the gaps of the feet of the channel.

        by|Nov 16, 2022

          A:  It would seem that compacted gravel would work if you don’t expect any side pressure on the trench. In my case the trench was U shaped (two 90 degree pieces) and since the straight sections can only be cut at certain places there was a gap between my concrete patio and the trench, so I needed concrete filler anyway.

          by|Nov 12, 2022
            caret
            Q:How much weight can it withstand when flush to a gravel driveway?
            by|Sep 23, 2022
            1 Answer
            Answer This Question

            A:  If not correctly set in concrete, then the drain could have the ability to move within the gravel, losing its load rating.

            by|May 1, 2023
              Showing 1-4 of 107
              caret

              Customer Reviews

              4.6 out of 5
              (429)
              • 4.6
                out of 429 reviews
              • 96% recommend this product
              Filter by:
              Showing 1-10 of 429 reviews
              Apr 13, 2022
              US Trench
              Trench is sturdy, snaps together with ease, quality material.
              by
              • Verified Purchase
              • Recommended
              Oct 23, 2020
              Great! Appreciate that is is made in USA also. Very sturdy. Used for a paver drain to channel wat...
              Great! Appreciate that is is made in USA also. Very sturdy. Used for a paver drain to channel water away from my driveway.
              by
              • Verified Purchase
              • Recommended
              1 found this review helpful
              Jul 16, 2020
              I used the Grates on my deck where my eaves drip to allow the water to pass through instead of sp...
              I used the Grates on my deck where my eaves drip to allow the water to pass through instead of splashing up on the side of the house. Perfect fit, replaced the first row of deck boards. Wish I would have had these when I put the deck in. Should eliminate replacing clapboards every few years.
              by
              • Verified Purchase
              • Recommended
              3 found this review helpful
              Jun 3, 2020
              Good for walkways but not stout enough for automobile traffic. It only has provisions for being c...
              Good for walkways but not stout enough for automobile traffic. It only has provisions for being cut at eight inch intervals. Turning a corner when not being able to cut on the eight inch provision molded into the drain trench to be connected with the provided snap half ring means that the two pieces float rather than connect together. Good for straight line drain usage.
              by
              • Verified Purchase
              • Recommended
              4 found this review helpful
              May 15, 2020
              First let me say I do lots of research, and read tons of reviews when determining a cost effectiv...
              First let me say I do lots of research, and read tons of reviews when determining a cost effective solution for a project. However I ONLY write reviews on EXCEPTIONAL products..... Value for price of this product was excellent. I could not find a cheaper solution anywhere other than Home Depot. I was concerned with quality since the cost was low, but these drains were strong, robust, and fit together tight and easy. No additional hardware was required. I was adding the drain for surface water collection under my deck, where years of settling had pitched the ground towards the house. These worked perfect, and allowed me to lay sheet plastic into them and snap the covers on to maximize water collection. Excellent low cost solution for my problem! I have already recommended these to others in my mountainous area with the same problem.
              by
                • Recommended
                9 found this review helpful
                May 5, 2020
                Quick shipping. Straight-forward installation. 'Extras' / 'Accessories' expensive (and some, such...
                Quick shipping. Straight-forward installation. 'Extras' / 'Accessories' expensive (and some, such as the foam tape for expansion , along the sides, 'required' for installation, should be included... Time will tell if it lasts.
                by
                • Verified Purchase
                • Recommended
                2 found this review helpful
                Aug 13, 2019
                Installation was easy. I used a crushed granite base instead of concrete. It looks good and works...
                Installation was easy. I used a crushed granite base instead of concrete. It looks good and works good. I only wonder how long it will last since it is plastic, but only time will tell.
                by
                • Verified Purchase
                • Recommended
                4 found this review helpful
                Jun 29, 2019
                Excellent product, Use as the drain between the Garage and the newly installed pavers in the dri...
                Excellent product, Use as the drain between the Garage and the newly installed pavers in the driveway. Product was easy to install. It does need solid support under the channel.
                by
                • Verified Purchase
                6 found this review helpful
                Oct 17, 2018
                I needed a shallow channel drain and this fit my needs. The price is very good and it was easy to...
                I needed a shallow channel drain and this fit my needs. The price is very good and it was easy to install. I used it in a patio to divert the water runoff from the basement.
                by
                • Verified Purchase
                • Recommended
                7 found this review helpful
                Jun 26, 2018
                This shallow trench drain worked well for an entrance walkway that had a problem with "ponding" w...
                This shallow trench drain worked well for an entrance walkway that had a problem with "ponding" water. I connected it to a 3" 90° PVC elbow straight into a 4" corrugated drain pipe. It's able to keep up with the heaviest downpours in Florida. ;) No more trudging through ankle deep water, or the silt that remained after the fact!
                by
                • Verified Purchase
                • Recommended
                3 found this review helpful
