#1 Home Improvement Retailer

Internet #302782454

Model #83500

Store SKU #1002667765

Compact Series 5.4 in. W x 3.2 in. D x 39.4 in. L Trench and Channel Drain with Black Grate

$3387
  • Modular "snap-together" system - customizes to any project layout
  • Anti-float design eliminates the need for rebar anchoring
  • Removeable grate for easy cleaning and maintenance
  • View More Details
Store
0 in stock
Text to Me

Frequently Bought Together

+
+
Price:
$3387

Product Overview

Because of their low-profile design, the Compact Series Modular Trench Drain systems are perfect for low water flow areas in landscape water drainage projects. Optimal for deviating rainfall water and flowing or stagnant water on property where water tends to collect and pool. Adjacent to homes or at the bottom of sloped areas; Trench Drains provide flexible drainage solutions. Residential uses include yard water drainage for small-grassed suburban properties or large acres of land and farm areas. Easily collect and disperse water from patio areas or pool sides. Commercial water drainage systems allow safe and efficient drainage for office buildings, property, or factory interiors. The flat grates are designed to distribute weight to the drain edges, and the smaller slats are ideal for walking on without worrying about high-heeled shoes being caught. The bottom of the system contains cut-out section for 3 in., 3.5 in, or 4 in. drainage pipes. The compact Trench Drain is visually appealing due to its sleek, yet sturdy, construction and adds an aesthetic touch it its surroundings. Available accessories include end caps, adaptor pieces, convertor pieces, leaf domes, 90° corner pieces, tee pieces, catch basins, slim pits, storm water pits, and alternative grates.
  • Easily removable grate that allows for easy cleaning
  • Anti-flotation design prevents floating and doesn't require staking when setting in concrete
  • Easy clip together design
  • Easy cut sections every 8 in. and join using our convertors to perfectly fit to any location
  • Built in bottom outlets at both ends of the trench drain to easily connect 3 in. and 4 in. sewer and drain pipe
  • Manufactured from lightweight, recycled UV stabilized poly propylene polymer
  • Grate manufactured from heavy-duty polymer
  • Meets ADA requirements
  • Heel proof grate
  • Includes 1 length of channel and grate
  • Dimensions: 39.37 in. x 5.43 in. x 3.15 in.

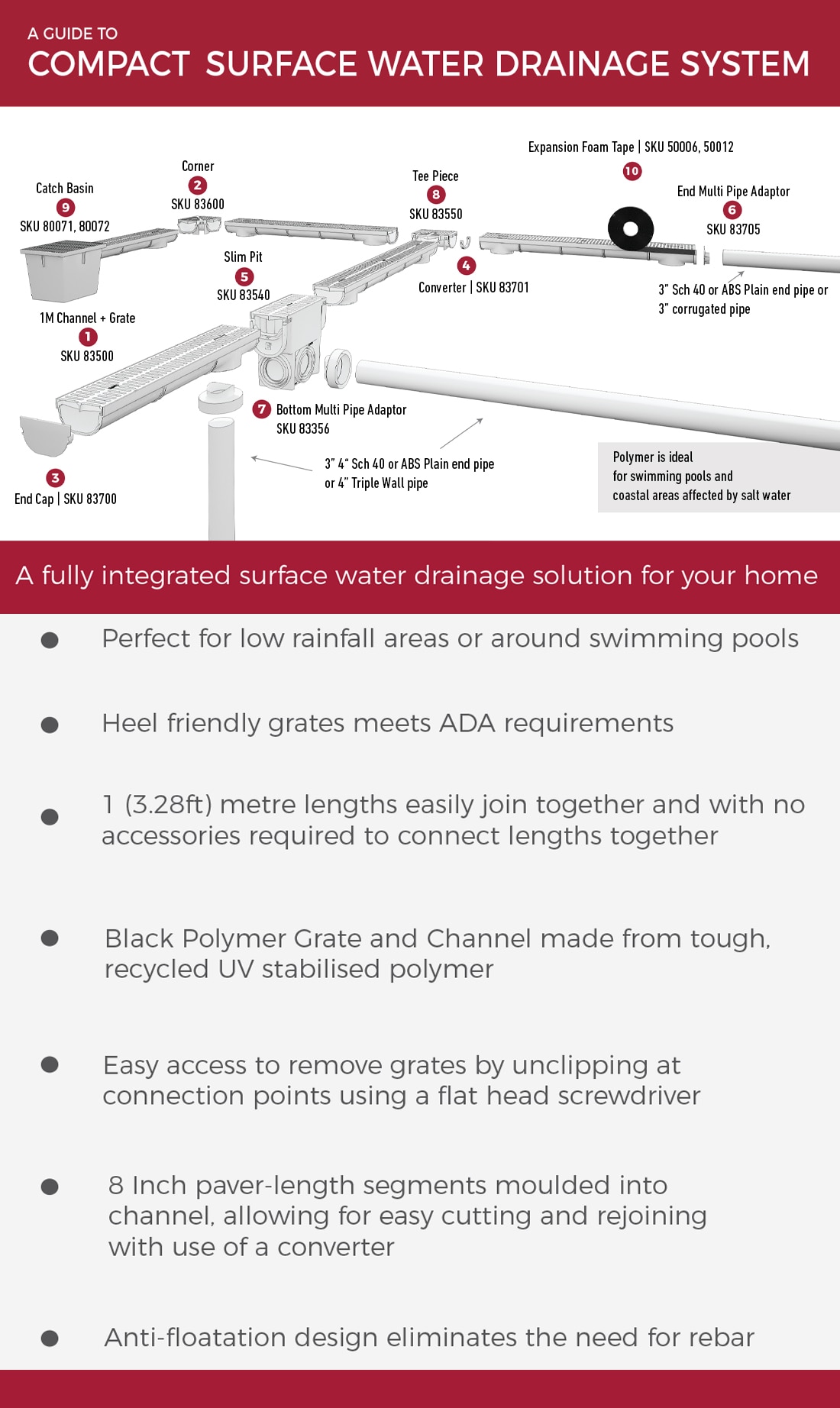

  • Click Here to view Features & Benefits of this product
  • Compact series trenches & accessories are not compatible with deep series items



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Channel Drains

Deep Series Black Replacement Grate to suit 5.4 in. W x 5.4 in. D x 39.4 in. L Trench and Channel Drain
current product
Compact Series 5.4 in. W x 3.2 in. D x 39.4 in. L Trench and Channel Drain with Black Grate
Top RatedDeep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Channel and Grate with Bottom Outlet with Black Grate2-1/4 in. x 6 ft. Slim Channel Drain Kit Gray Grates, End Caps, Outlets, Coupling and Anchor Clips
BrandU.S. TRENCH DRAINU.S. TRENCH DRAINU.S. TRENCH DRAINNDS
NameDeep Series Black Replacement Grate to suit 5.4 in. W x 5.4 in. D x 39.4 in. L Trench and Channel DrainCompact Series 5.4 in. W x 3.2 in. D x 39.4 in. L Trench and Channel Drain with Black GrateDeep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Channel and Grate with Bottom Outlet with Black Grate2-1/4 in. x 6 ft. Slim Channel Drain Kit Gray Grates, End Caps, Outlets, Coupling and Anchor Clips
Price
$1797
$3387
$3588
$3925
Ratings
(268)
(372)
(268)
(12)
Product Length (in.)39.3739.37 in39.37 in6 ft
MaterialPlasticPlasticPlasticPlastic
Pack Size1111
Package Quantity1111
Product Depth (in.)39.25 in3.15 in5.39 in3.125 in
View ProductView ProductView ProductView Product

Specifications

Dimensions

Max. Compatible Pipe Size (In.)
4"
Min. Compatible Pipe Size (In.)
3"
Product Depth (in.)
3.15 in
Product Length (in.)
39.37 in
Product Width (in.)
5.43 in

Details

Color Family
Black
Color/Finish
Black
Compatible Area of Use
Downspout Runoff,Driveway,Neighbor Runoff,Patio,Planter Areas,Pool Deck,Walkways,Yard
Material
Plastic
Maximum Working Temperature (F)
180
Minimum working temperature (F)
-20
Pack Size
1
Package Quantity
1
Pipe or Fitting Product Type
Accessory
Product Weight (lb.)
3.6 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
2-Year Warranty
