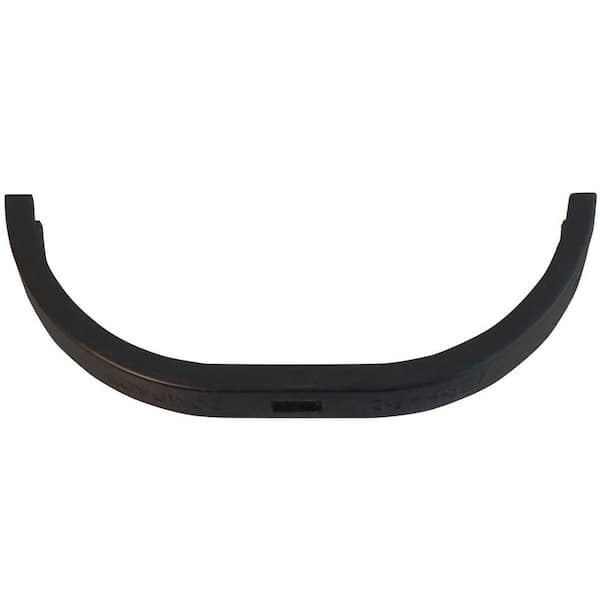

Compact Series Black Coupling Converter for Modular Trench and Channel Drain Systems (Male to Male connector)
- Channel drain snaps together in seconds
- Anti-float design eliminates the need for rebar anchoring
- Removeable grate for easy cleaning and maintenance
- View More Details
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase.
Ask about this product
Get an answer now with AI
AI-generated from the text of manufacturer documentation. To verify or get additional information, please contact The Home Depot customer service.
Product Details
About This Product
Compact Series Coupling Converter is an important addition to any custom modular compact trench drain system. The Polymer converter can be used with the Compact Series trench drains or grates: the converter piece is not visible from the surface, so color matching isn't a problem. When cutting trench drain lengths along any of the grooved sections at 8 in. intervals, the converter piece can be used to reattach the remaining cut pieces of trench drain lengths: simply clip the two lengths into the converter. The coupling can also be used to attach the End Cap/Adaptor to the Male End of your trench drain section. Note: a converter piece is not needed to attach uncut pieces of trench drain, but when cutting or trimming our modular trach drain section down to get the perfect fit; the Compact Series Coupling Converter makes your installation quick and easy.
Highlights
- Cut your trench drains along any one of the 8 in. intervals of the trench drain length, then use the convertor to join lengths together, making a perfect fit
- Only used for our Compact Series trench drains; not suitable for the Deep Series trench drains
- Not required to join lengths together
- Dimensions 0.56 in. L x 5.125 in. W x 1.75 in. H
- Includes: 1 converter piece
- Covered by a 2-year limited warranty
- Click Here to view Features & Benefits of this product
- Compact Series Trenches & Accessories are not Compatible with Deep Series items
- Return Policy
Product Information
Specifications
Dimensions
Max. Compatible Pipe Size (In.) | 5" |
|---|---|
Min. Compatible Pipe Size (In.) | 5" |
Product Depth (in.) | 0.56 in |
Product Length (in.) | 0.56 in |
Product Width (in.) | 5.12 in |
Details
Color/Finish | Black |
|---|---|
Compatible Area of Use | Downspout Runoff, Driveway, Neighbor Runoff, Patio, Planter Areas, Pool Deck, Walkways, Yard |
Material | Plastic |
Maximum Working Temperature (F) | 180 |
Minimum working temperature (F) | -20 |
Pack Size | 1 |
Pipe or Fitting Product Type | Accessory |
Product Weight (lb.) | 0.1 lb |
Returnable | 90-Day |
Warranty / Certifications
Manufacturer Warranty | 2-Year Warranty |
|---|
Questions & Answers
I want to cut the tabs so that I can remove the grates more easy.
Can you drive over them?
Yes, If correctly set in concrete, you can drive a car or pickup truck up to 3300 Lbs per axle over the channel at speeds of less than 15mph
Can the grates be remove for cleaning
can the drain be cut shorter
Yes, they can be cut between any of the 8" ribbed sections at the base of the channel
Is this drain sloped already? Or does it needs to be set on a sloped to drain to one end?
Are they vehicle gray can I drive on them?
Yes, if correctly set in concrete, they can withstand a car or pickup truck on to 3300lbs per axle.
Are they vehicle gray can I drive on them?
Are they vehicle gray can I drive on them?
Are they vehicle gray can I drive on them?
Viewing 1-8 of 136
