Model #83540

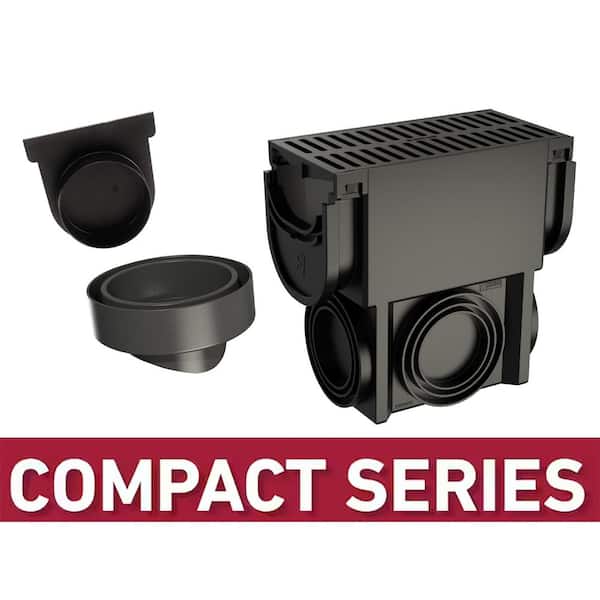

Compact Series Black Slim Drainage Pit and Catch Basin for 3.2 in. Modular Trench and Channel Drain Systems

  • Modular "snap-together" system - customizes to any project layout
  • Anti-float design eliminates the need for rebar anchoring
  • Removeable grate for easy cleaning and maintenance
  • See More Details

Frequently Bought Together

+
+
Price:

Product Overview

The Compact Series Slim Drainage Pit can be installed in your trench drain system for a small underground catch basin with outlets on all 4 sides for direct connection to a 3 in. or 4 in. PVC drainage pipe. Designed for residential and commercial drainage systems. Because of their low-profile design, the Compact Series Modular Trench Drain systems are perfect for low water flow areas in landscape water drainage projects. Optimal for deviating rainfall water and flowing or stagnant water on property where water tends to collect and pool. Adjacent to homes or at the bottom of sloped areas; Trench Drains provide flexible drainage solutions. Residential uses include yard water drainage for small-grassed suburban properties or large acres of land and farm areas. Easily collect and disperse water from patio areas or pool sides. Commercial water drainage systems allow safe and efficient drainage for office buildings, property, or factory interiors. The flat grates are designed to distribute weight to the drain edges, and the smaller slats are ideal for walking on without worrying about high-heeled shoes getting caught. The compact Trench Drain is visually appealing due to its sleek, yet sturdy, construction and adds an aesthetic touch it its surroundings.
  • Drainage pit allows seamless connection to sewer and drain water system
  • Built in bottom outlets on all 4 sides to allow for any direction and for joining to 3 in., 3.5 in. and 4 in. sewer and drain pipe
  • Easy clip together design
  • Easily removable grate for cleaning
  • Made from lightweight UV stabilized poly polypropylene polymer
  • Great for low rainfall areas
  • Includes 1 slim pit channel and grate
  • Click Here to view Features & Benefits of this product
  • Compact Series Trenches & Accessories are not Compatible with Deep Series items



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Channel Drains

7 in. Spee-D Channel Drain with Grate and 3 in. and 4 in. Bottom Outlet
current product
Compact Series Black Slim Drainage Pit and Catch Basin for 3.2 in. Modular Trench and Channel Drain Systems
Compact Series Tee for 3.2 in. Trench and Channel Drain Systems with Black GrateDeep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Channel and Grate with Bottom Outlet with Black Grate
BrandNDSU.S. TRENCH DRAINU.S. TRENCH DRAINU.S. TRENCH DRAIN
Name7 in. Spee-D Channel Drain with Grate and 3 in. and 4 in. Bottom OutletCompact Series Black Slim Drainage Pit and Catch Basin for 3.2 in. Modular Trench and Channel Drain SystemsCompact Series Tee for 3.2 in. Trench and Channel Drain Systems with Black GrateDeep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Channel and Grate with Bottom Outlet with Black Grate
Price
Ratings
(20)
(308)
(308)
(247)
Product Length (in.)7 in10.43 in7.99 in39.37
MaterialPolyPlasticPlasticPlastic
Pack Size1111
View ProductView ProductView ProductView Product

Specifications

Dimensions

Max. Compatiible Pipe Size (In.)
4"
Min. Compatible Pipe Size (In.)
3"
Product Depth (in.)
10.43 in
Product Length (in.)
10.43 in
Product Width (in.)
5.43 in

Details

Color Family
Black
Color/Finish
Black
Compatible Area of Use
Downspout Runoff,Driveway,Neighbor Runoff,Patio,Planter Areas,Pool Deck,Walkways,Yard
Material
Plastic
Maximum Working Temperature (F)
180
Minimum working temperature (F)
-20
Pack Size
1
Package Quantity
1
Pipe or Fitting Product Type
Accessory
Product Weight (lb.)
2.51 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
2 Year Warranty

Questions & Answers

89Questions8Answers

Does the 90 degree corner have a knockout on the bottom to connect a drain.

Asked by Milbs April 17, 2021
0
Answers

Can you cut it to length? I need sections of less than 39in

Asked by Nicolas April 2, 2021
0
Answers

WIIL THIS FIT 5 1/4 WIDE AND 3 1/2 DEEP BY 39 IN MODLE 83600

Asked by RICKY March 22, 2021
1
Answer

YES

Is it difficult to remove the grate for cleaning out any debris that may find its way into the dr...

Asked by Steamboat March 6, 2021
0
Answers

Is anything available with more depth?

Asked by Ernesto January 25, 2021
1
Answer

Hello Ernesto, thank you for your recent inquiry with The Home Depot. Check out some options for the 'Deep Series' here: https://www.homedepot.com/s/trench%2520and%2520channel%2520drain?NCNI-5 We appreciate your business and look forward to serving you in the future.

I need to place this next to my house and then a grass border on the other side. How do I anchor...

Asked by WarNPeace January 25, 2021
1
Answer

IMO it will....mine isn’t cemented in place but I did kinda buttress it with drainage rock.

I am looking for a linear drain to put under a 3-foot wide gate at the edge of some concrete to c...

Asked by RobH January 11, 2021
2
Answers

Yes you can cut and cap

Says to suit 5.4 inch channel, but how wide is the grate itself?

Asked by Width January 6, 2021
1
Answer

5 1/4" including the little wings that stick out. Excluding those, the width of the grate is 5 1/16".

I want to use it across my driveway to prevent rain water from seeping into the garage. The seepa...

Asked by Jay December 14, 2020
2
Answers

I'd say as long as you have one end drained from the bottom, you don't need a drain pipe under the entire width of the driveway.

Examples: How do I install this? What is the battery life? Does this come in black? Is this heavy...

Asked by Red August 29, 2020
0
Answers

Compact Series Black Slim Drainage Pit and Catch Basin for 3.2 in. Modular Trench and Channel Drain Systems - page 2

Customer Reviews

  • 4.6
    out of 308 reviews
  • 96% recommend this product
Filter by:
Showing 1-10 of 308 reviews
Great! Appreciate that is is made in USA also. Very sturdy. Used for a paver drain to channel wat...
Great! Appreciate that is is made in USA also. Very sturdy. Used for a paver drain to channel water away from my driveway.
by Edgewater
1 person found this helpful
I used the Grates on my deck where my eaves drip to allow the water to pass through instead of sp...
I used the Grates on my deck where my eaves drip to allow the water to pass through instead of splashing up on the side of the house. Perfect fit, replaced the first row of deck boards. Wish I would have had these when I put the deck in. Should eliminate replacing clapboards every few years.
by sharkie
3 people found this helpful
Good for walkways but not stout enough for automobile traffic. It only has provisions for being c...
Good for walkways but not stout enough for automobile traffic. It only has provisions for being cut at eight inch intervals. Turning a corner when not being able to cut on the eight inch provision molded into the drain trench to be connected with the provided snap half ring means that the two pieces float rather than connect together. Good for straight line drain usage.
by TB
3 people found this helpful
First let me say I do lots of research, and read tons of reviews when determining a cost effectiv...
First let me say I do lots of research, and read tons of reviews when determining a cost effective solution for a project. However I ONLY write reviews on EXCEPTIONAL products..... Value for price of this product was excellent. I could not find a cheaper solution anywhere other than Home Depot. I was concerned with quality since the cost was low, but these drains were strong, robust, and fit together tight and easy. No additional hardware was required. I was adding the drain for surface water collection under my deck, where years of settling had pitched the ground towards the house. These worked perfect, and allowed me to lay sheet plastic into them and snap the covers on to maximize water collection. Excellent low cost solution for my problem! I have already recommended these to others in my mountainous area with the same problem.
by Chapmad1
7 people found this helpful
Quick shipping. Straight-forward installation. 'Extras' / 'Accessories' expensive (and some, such...
Quick shipping. Straight-forward installation. 'Extras' / 'Accessories' expensive (and some, such as the foam tape for expansion , along the sides, 'required' for installation, should be included... Time will tell if it lasts.
by mch
2 people found this helpful
Installation was easy. I used a crushed granite base instead of concrete. It looks good and works...
Installation was easy. I used a crushed granite base instead of concrete. It looks good and works good. I only wonder how long it will last since it is plastic, but only time will tell.
by Rockman
4 people found this helpful
Excellent product, Use as the drain between the Garage and the newly installed pavers in the dri...
Excellent product, Use as the drain between the Garage and the newly installed pavers in the driveway. Product was easy to install. It does need solid support under the channel.
by rma
6 people found this helpful
I needed a shallow channel drain and this fit my needs. The price is very good and it was easy to...
I needed a shallow channel drain and this fit my needs. The price is very good and it was easy to install. I used it in a patio to divert the water runoff from the basement.
by PETER
7 people found this helpful
This shallow trench drain worked well for an entrance walkway that had a problem with "ponding" w...
This shallow trench drain worked well for an entrance walkway that had a problem with "ponding" water. I connected it to a 3" 90° PVC elbow straight into a 4" corrugated drain pipe. It's able to keep up with the heaviest downpours in Florida. ;) No more trudging through ankle deep water, or the silt that remained after the fact!
by Jemm
3 people found this helpful
As a supplement to a French Drain project, I installed this trench drain outside in front of a lo...
As a supplement to a French Drain project, I installed this trench drain outside in front of a lower level, low sitting door. I cut a 2-inch diameter hole in the bottom of the drain at one end and inserted a 4 inch long piece of 2 inch PVC and sealed it with adhesive caulk. Attached a 90 degree elbow to the PVC and connected a foot long piece of 2-inch PVC to the elbow and ran it into a foot long piece of 3-inch corrugated pipe (using a 2 inch to 3 inch rubber connector). The 3-inch corrugated pipe joins w/ my 3-inch corrugated pipe from my downspout into a Y-connector and it all flows 30 feet out to the street. Before permanently installing the trench drain, I tested it w/ a bucket of water dumped into the top of the drain. Both end caps on the trench drain and my 2-inch cut hole on the bottom of the drain leaked. I sealed everything up w/ more caulk and after that cured I painted on BlackJack 57 roofing/foundation rubberized sealant; and no more leakage.
by Roberto
8 people found this helpful
