Deep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Channel and Grate with Bottom Outlet with Black Grate
- Modular "snap-together" system - customizes to any project layout
- Anti-float design eliminates the need for rebar anchoring
- Removeable grate for easy cleaning and maintenance
- See More Details
Frequently Bought Together
Price:
$2799
$29.74
Save $1.75 (6%)
Product Overview

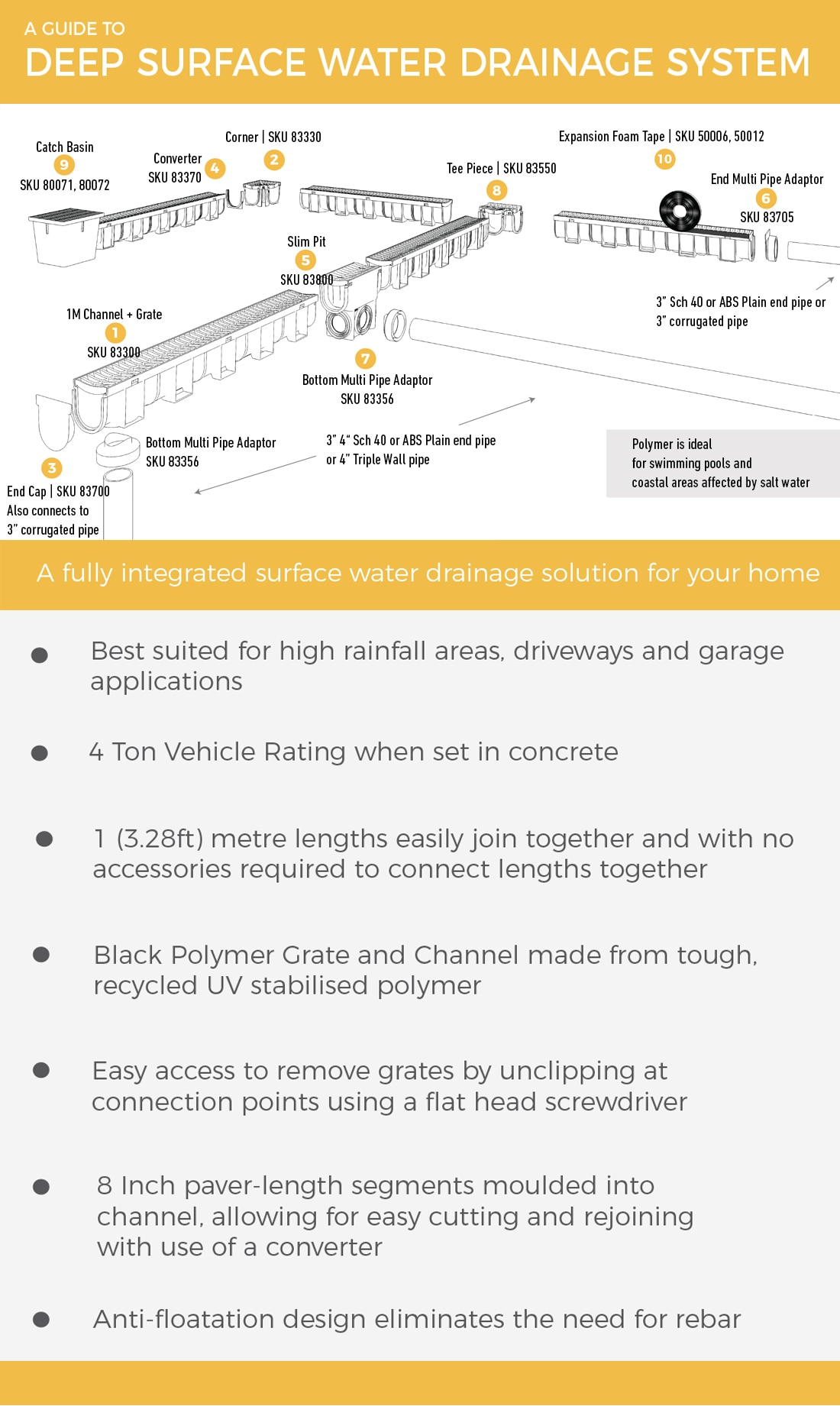

Because of its high-profile design, the Deep Series Black Trench Drain is perfect for high water flow areas, landscape water drainage projects, or for deviating rainfall water and other flowing and stagnant water on a property where lots of water collects. It can also be used for pools adjacent to homes or at the bottom of sloped areas. This drain can also be used for commercial water drainage in everything from outside of office buildings to inside of factories. The concave grates ideally distribute weight to the edges while driving across and the larger slats accept the largest quantities of water. Trench drain is visually appealing due to its sturdy, sleek construction and will add to the aesthetic of any surroundings. The accessories included are: end caps, adapter pieces, converter pieces, leaf domes; 90° corner pieces, tee pieces, catch basins, slim pits, and storm water pits.
- Easily removable grate that allows for easy cleaning
- Anti-flotation design prevents floating and doesn’t require staking when setting in concrete
- Easy clip together design
- Easy cut sections every 8 in. and join using our converters to perfectly fit to any location
- Built in bottom outlets at one end of the trench drain to easily connect 3 in. sewer and drain pipe, or, installing end cap adapter in reverse and honing out the internal section to connect to 3 in. pipe
- 4-ton vehicle rating when set in concrete
- Great for high rainfall areas
- Manufactured from lightweight, recycled UV stabilized poly polypropylene polymer
- Includes 1 length of channel and grate
- Dimensions: 39.37 in. x 5.43 in. x 5.39 in.
- Click Here to view Features & Benefits of this product
- Deep series trenches & accessories are not compatible with compact series items
Info & Guides
Product Overview
- Modular "snap-together" system - customizes to any project layout
- Anti-float design eliminates the need for rebar anchoring
- Removeable grate for easy cleaning and maintenance
Compare Similar Channel Drains
 | |  |  | |
| Brand | U.S. TRENCH DRAIN | U.S. TRENCH DRAIN | NDS | U.S. TRENCH DRAIN |
| Name | Deep Series 90° Corner for 5.4 in. Trench and Channel Drain Systems w/ Black Grate | Deep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Channel and Grate with Bottom Outlet with Black Grate | Pro Series 5 in. x 40 in. Channel Drain and Grate Kit with End Outlet | Deep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Trench and Channel Drain Kit w/ Stainless Steel Grate |
| Price | $1956 | $2799 $29.74 Save $1.75 (6%) | $4999 | $5794 |
| Ratings | (229) | (227) | (109) | (234) |
| Product Length (in.) | 6.73 | 39.37 | 40 | 39.37 |
| Material | Plastic | Plastic | Polypropylene | Plastic |
| Pack Size | 1 | 1 | 1 | 1 |
| View Product | View Product | View Product | View Product |
Compare Similar Channel Drains
| | | | |
| Brand | U.S. TRENCH DRAIN | U.S. TRENCH DRAIN | NDS | U.S. TRENCH DRAIN |
| Name | Deep Series 90° Corner for 5.4 in. Trench and Channel Drain Systems w/ Black Grate | Deep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Channel and Grate with Bottom Outlet with Black Grate | Pro Series 5 in. x 40 in. Channel Drain and Grate Kit with End Outlet | Deep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Trench and Channel Drain Kit w/ Stainless Steel Grate |
| Price | $1956 | $2799 $29.74 Save $1.75 (6%) | $4999 | $5794 |
| Ratings | (229) | (227) | (109) | (234) |
| Product Length (in.) | ||||
| Material | ||||
| Pack Size | ||||
| View Product | View Product | View Product | View Product |
Specifications
Dimensions
Max. Compatiible Pipe Size (In.)
3"
Min. Compatible Pipe Size (In.)
3"
Product Depth (in.)
39.37
Product Length (in.)
39.37
Product Width (in.)
5.43 in
Details
Color Family
Black
Color/Finish
Black
Compatible Area of Use
Downspout Runoff,Driveway,Neighbor Runoff,Patio,Planter Areas,Pool Deck,Walkways,Yard
Material
Plastic
Maximum Working Temperature (F)
180
Minimum working temperature (F)
-20
Pack Size
1
Package Quantity
1
Pipe or Fitting Product Type
Accessory
Product Weight (lb.)
6
Returnable
180-Day
Warranty / Certifications
Manufacturer Warranty
2-Year Warranty
Questions & Answers
88Questions2Answers
Can just the replacement grate be used in place of a deckboard? I have no need to catch the wate...
Asked by Michael November 19, 20200
Answerswhere are the made?
Asked by Leon October 9, 20200
AnswersI'd like to put these along a sidewalk with grass on the other side. Will this work or must it have cement on both side
Asked by Iwasiam September 19, 20200
Answerswhat is included with this Deep series ?
Asked by Mks September 11, 20200
AnswersCuantas libras pesa esta canaleta?
Asked by Luis July 29, 20201
AnswerLo siento amigo, no me acuerdo
I have a 24 degree and a 22 degree angles. Can this be cut and cemented together with PVC cement?
Asked by Craig June 20, 20200
AnswersAm I the only person with a curving driveway? How would USTRENCHDRAIN handle this? It's a downard...
Asked by Sasquatch May 20, 20200
Answersdo these match up to Everhard Easydrain. They look very similar to the ones I have and need more ...
Asked by Brook May 18, 20200
AnswersThe method of attaching a pipe (e.g., 3" sch 40) to enable actual drainage, is vague at best. Is ...
Asked by TigerSpace May 11, 20200
AnswersThe method of attaching a pipe (e.g., 3" sch 40) to enable actual drainage, is vague at best. Is ...
Asked by TigerSpace May 11, 20201
AnswerNot really; it is a snug fit (designed to fit a 3" Sch 40 pipe as per Sch 40 specs), but certainly not difficult or awkward
Customer Reviews
Overall Ratings
I used it next to a side walk with dirt on the other side and a little gravel on top so the dirt ...
October 15, 2020
I used it next to a side walk with dirt on the other side and a little gravel on top so the dirt would stay put. I had to have a slight turn and had to cut it. Wish I knew that nothing will bond or seal to these drain systems because their made of polypropylene ploymer. Only thing I found was DP-8005 from 3M and it aint cheap that's why I gave it only 4 stars. After heavy rains from hurricane Delta the system performed very well. The grates are easy to pop off with two flathead screwdrivers.
I bought this and 18ft of drain. It worked out well, except for the connectors to add end caps an...
May 5, 2020
I bought this and 18ft of drain. It worked out well, except for the connectors to add end caps and join the 90° corner to the drain.
The connector is too flexible and doesnt hold well, but with a little determination and concrete to hold everything in place, we are very happy with the finished product.
At first I was a little skeptic, but to my surprise the product exceded my expectations. No more ...
August 2, 2019
At first I was a little skeptic, but to my surprise the product exceded my expectations.
No more flooding issues and the best part of it is that The black channel grate looks amazing under my new pergola.:)
The product is very good, the only thing I had a problem with was the using the coupling. It doe...
October 9, 2018
The product is very good, the only thing I had a problem with was the using the coupling. It does not make a good connection.
The sections for this drain kit slide together but they don't snap in place which makes it hard t...
September 15, 2018
The sections for this drain kit slide together but they don't snap in place which makes it hard to keep them to stay put. One section somehow mysteriously separated from the other while the cement was curing. I doubt they would’ve separated had there been a snap that held them together. I could’ve glued them but the ‘tongue and grove’ is so small that I doubt it would’ve helped. The product is made of rigid plastic and looks good, but the design behind connecting them together failed miserably. If the pitch of your base isn’t perfectly even there will be a good chance that the sections will not stay fully seated and they will pop up. I would’ve given the product 4 or 5 stars had they snapped together and had some way of keeping them from popping out of the ground or moving around while the cement cures. Maybe some tabs with a hole on the bottom so you could drive a stake through or something. I’ll probably end up ripping it out next year and redo it using another product or keep looking for a contractor to do it.
Durable, easy to assemble and install. Connected easily to flex drain tube. Had a washout area in...
August 21, 2018
Durable, easy to assemble and install. Connected easily to flex drain tube. Had a washout area in our flowerbed that was being caused by the run-off of our neighbor's driveway. Installed this along the fence line and ran a flex tube into our yard with a pop-up. Problem solved.
Two pieces “click” together nicely, but the third piece uses...
December 5, 2020
Two pieces “click” together nicely, but the third piece uses a coupling. It’s too large so these ends don’t click together, it’s very loose and essentially worthless. It was like wresting and alligator, trying to keep it all together and stable when we sunk it in concrete. Otherwise appears sturdy, although the grate is very difficult to remove.
Poor design. Doesn't connect well....
December 5, 2020
Poor design. Doesn't connect well.
I've hard time getting it to stay connected......
November 27, 2020
I've hard time getting it to stay connected...
I used many of these as the floor to my...
November 26, 2020
I used many of these as the floor to my pigeon loft, they are strong enough to stand on, and I can clean and basically leave a dryer floor for the birds
