Model # 83300-3

Store SKU # 1002667781

Deep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Trench and Channel Drain Kit with Black Grate (3-Pack : 9.8 ft)

$79.99
Apply Now
Pay $54.99 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card

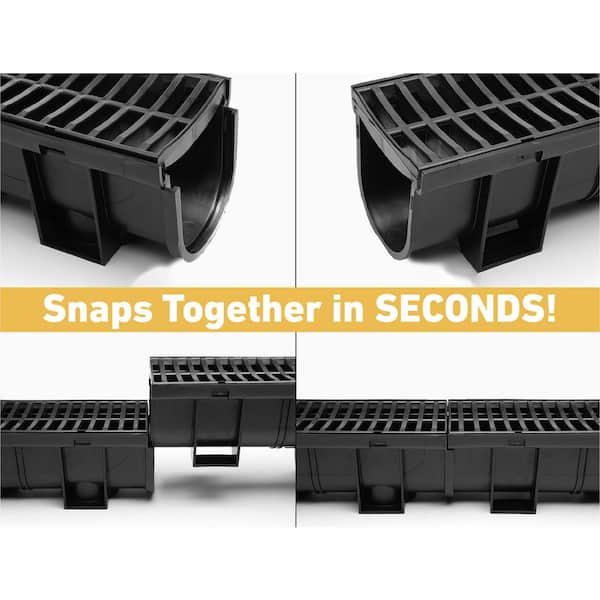

  • Channel drain snaps together in seconds
  • Anti-float design eliminates the need for rebar anchoring
  • Removeable grate for easy cleaning and maintenance
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

Because of their high-profile design, the Deep Series Trench Drains are perfect for high water flow areas in landscape water drainage projects. Optimal for deviating rainfall water and flowing or stagnant water on property where lots of water collects and pools. Adjacent to homes or at the bottom of sloped areas; Trench Drains provide flexible drainage solutions. Residential uses include yard water drainage for small-grassed suburban properties or large acres of land and farm areas. Easily collect and disperse water from patio areas or pool sides. Commercial water drainage systems allow safe and efficient drainage for office buildings, property, or factory interiors. The concave grates are ideally designed to distribute weight to the drain edges and the larger slats increase water flow while still providing protection from debris or traffic. The Trench Drain is visually appealing due to its sleek, yet sturdy, construction and adds an aesthetic touch it its surroundings. Available accessories include end caps, adaptor pieces, convertor pieces, leaf domes, 90 degree corner pieces, tee pieces, catch basins, slim pits, storm water pits, and alternative grates.

Highlights

  • Easily removable grate that allows for easy cleaning
  • Anti-flotation design doesn't require staking when setting in concrete
  • Easy clip-together design
  • Easy-cut sections every 8 in.; join sections using our convertors to efficiently fit any layout
  • Built-in bottom outlets at one end of the trench drain to easily connect 3 in. sewer and drain pipes
  • Install an end cap adaptor in reverse and drill out the internal section to connect to 3 in. pipes
  • 4-ton vehicle rating when set in concrete
  • Great for high rainfall areas
  • Manufactured from lightweight, recycled UV stabilized poly propylene polymer
  • Individual section dimensions: 39.37 in. x 5.43 in. x 5.39 in.
  • Includes 3 lengths of channel and grate, 2 end caps and 1 convertor
  • Click Here to view Features & Benefits of this product

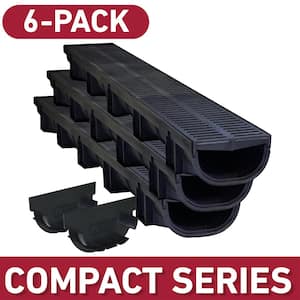

  • Deep series trenches & accessories are not compatible with compact series items
  • Return Policy

Product Information

Internet # 302782501

Model # 83300-3

Store SKU # 1002667781

Specifications

Dimensions

Max. Compatible Pipe Size (In.)

3"

Min. Compatible Pipe Size (In.)

3"

Product Depth (in.)

5.39 in

Product Length (in.)

118.11 in

Product Width (in.)

5.43 in

Details

Color Family

Black

Color/Finish

Black

Compatible Area of Use

Downspout Runoff, Driveway, Neighbor Runoff, Patio, Planter Areas, Pool Deck, Walkways, Yard

Material

Plastic

Maximum Working Temperature (F)

180

Minimum working temperature (F)

-20

Pack Size

3

Package Quantity

3

Pipe or Fitting Product Type

Accessory

Product Weight (lb.)

18.2 lb

Returnable

90-Day

Warranty / Certifications

Manufacturer Warranty

2-Year Warranty

Questions & Answers

108Questions
caret
Q:3 pack channel drains state anti floating no need for rebar but your answers say use rebar or concrete to stop floating. They will be hooked together sitting in gravel next to patio,will they float without rebar? Thanks
by|May 4, 2024
1 Answer
Answer This Question

A:  If concrete or rebar isn't used to pin down the drains and water gets under the channel, then they could float.

by|May 4, 2024
    caret
    Q:How do you install this trench drain system without setting it in cement? I am planning to use it for yard rain runoff draining. Thank you in advance.
    by|Apr 25, 2024
    1 Answer
    Answer This Question

    A:  To drive over it, it must be set in concrete. Otherwise you can either use a shovel load of concrete per section or use rebar and tie that to the feet of the channel to pin it in place and avoid the trench drain floating, should water get under the system.

    by|Apr 26, 2024
      caret
      Q:Can I connect the deep series and standard series together?
      by|Apr 6, 2024
      1 Answer
      Answer This Question

      A:  By standard series, if you are referring to the Compact series, then yes, if you purchase the compact slim pit sku 83540.

      by|Apr 6, 2024
        caret
        Q:Will this work with Storm Drain Series 5 in. W x 5.25 in. D x 39.4 in. L Channel Drain Kit with Black Grate (6-Pack) to make a corner? If not, which corner fits the 5.25" drain?
        by|Sep 5, 2023
        1 Answer
        Answer This Question

        A:  This will only fit US Trench Drain’s Deep series 5.4” x 5.4” channel drains

        by|Sep 6, 2023
          Showing 1-4 of 108

          Customer Reviews

          4.1 out of 5

          • 4.1 out of 324 reviews
          • 72% recommend this product
          Filter by:
          Showing 1-10 of 324 reviews
          Did the trick
          I have a monster hill with a small flat part that was trying to wash out. I have never done anything like this before, but watching YouTube I was able to create a solution with this drain to capture the runoff into this drain and divert it to the road. The drain was placed below the dirt line and I put concrete around it (peat gravel on top) so I could walk on it and direct water into the drain. I had to call the company for another adapter and I must say they were pretty awesome to work with too.
          by
            I used it next to a side walk with dirt on the other side and a little gravel on top so the dirt ...
            I used it next to a side walk with dirt on the other side and a little gravel on top so the dirt would stay put. I had to have a slight turn and had to cut it. Wish I knew that nothing will bond or seal to these drain systems because their made of polypropylene ploymer. Only thing I found was DP-8005 from 3M and it aint cheap that's why I gave it only 4 stars. After heavy rains from hurricane Delta the system performed very well. The grates are easy to pop off with two flathead screwdrivers.
            by
            • Verified Purchase
            • Recommended
            5 found this review helpful
            I bought this and 18ft of drain. It worked out well, except for the connectors to add end caps an...
            I bought this and 18ft of drain. It worked out well, except for the connectors to add end caps and join the 90° corner to the drain. The connector is too flexible and doesnt hold well, but with a little determination and concrete to hold everything in place, we are very happy with the finished product.
            by
            • Verified Purchase
            • Recommended
            1 found this review helpful
            At first I was a little skeptic, but to my surprise the product exceded my expectations. No more ...
            At first I was a little skeptic, but to my surprise the product exceded my expectations. No more flooding issues and the best part of it is that The black channel grate looks amazing under my new pergola.:)
            by
            • Verified Purchase
            • Recommended
            1 found this review helpful
            The product is very good, the only thing I had a problem with was the using the coupling. It doe...
            The product is very good, the only thing I had a problem with was the using the coupling. It does not make a good connection.
            by
            • Verified Purchase
            • Recommended
            5 found this review helpful
            The sections for this drain kit slide together but they don't snap in place which makes it hard t...
            The sections for this drain kit slide together but they don't snap in place which makes it hard to keep them to stay put. One section somehow mysteriously separated from the other while the cement was curing. I doubt they would’ve separated had there been a snap that held them together. I could’ve glued them but the ‘tongue and grove’ is so small that I doubt it would’ve helped. The product is made of rigid plastic and looks good, but the design behind connecting them together failed miserably. If the pitch of your base isn’t perfectly even there will be a good chance that the sections will not stay fully seated and they will pop up. I would’ve given the product 4 or 5 stars had they snapped together and had some way of keeping them from popping out of the ground or moving around while the cement cures. Maybe some tabs with a hole on the bottom so you could drive a stake through or something. I’ll probably end up ripping it out next year and redo it using another product or keep looking for a contractor to do it.
            by
              8 found this review helpful
              Durable, easy to assemble and install. Connected easily to flex drain tube. Had a washout area in...
              Durable, easy to assemble and install. Connected easily to flex drain tube. Had a washout area in our flowerbed that was being caused by the run-off of our neighbor's driveway. Installed this along the fence line and ran a flex tube into our yard with a pop-up. Problem solved.
              by
              • Verified Purchase
              • Recommended
              7 found this review helpful
              Just what I needed. Should of came with side covers.
              by
              • Verified Purchase
              • Verified Purchase
              • Verified Purchase
