#1 Home Improvement Retailer

Internet #202566450

Model #6041I

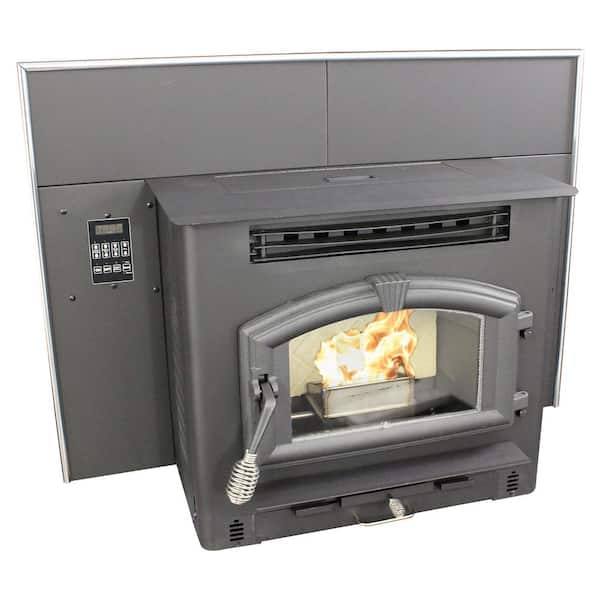

44.25 in. 2000 sq. ft. Multi-Fuel Fireplace Insert

  • Burns corn, soy beans, olive pits, bio mass fuel grains and more
  • Heats up to 2,000 sq. ft. ensuring cozy comfort
  • Digital control board for easy testing, startup and operation
  • See More Details

Frequently Bought Together

+
Price:

Product Overview

Diagram of the front width and height for product.
Diagram of the front width and height for product.
Insert Dimension Title
Front width dimensions
Front height dimensions
Rear width dimensions
Rear height dimensions
Product Depth
Fuel Type
Product Warranty
Link to Buying Guide
First introduced in 2001 as our first multi fuel stove, the 6041 American Harvest stove has evolved into one of the most sophisticated heating appliances on the market. Not only is it capable of burning compressed wood pellets, it can also burn corn, soy beans, cherry pits, olive pits, bio mass fuel grains, and processed pelletized silage with just a few simple adjustments. The American Harvest 6041 is mobile home approved (with use of fresh air kit) and is extremely easy to install. The 6041I is the elegant fireplace insert of our popular 6041 pedestal stove. Pellet heaters work by using a software driven control board to precisely deliver a pre-determined amount of fuel from the hopper into a burn chamber. An electric heating element, used only in startup, heats the pellets until they ignite. The combustion blower forces air through the burn chamber and once ignited, it provides an active combustion of the pellets resulting in very little ash. The exhaust and heat pass through one side of air chambers where on the other side, the variable speed room blower gathers the heat and distributes this through the room. This entire process results in a very clean burning, efficient heating machine for your home.
  • 5 heat settings allow the ability to adjust to your heating needs for up to 52,000 BTUs
  • 5 blower speed settings allow easy adjustment to fit your home
  • Digital control board with built-in diagnostics and LED readouts make testing, startup, and operation a breeze with just a touch of a button
  • Burns wood pellets, corn, soy beans, cherry pits, olive pits and other compressed biomass fuels
  • Burn pot agitator to prevent clinker buildup and provide a more complete burn
  • Large ceramic glass window with integrated air wash
  • New fuel feed system eliminates burn back and allows the use of non-premium fuels
  • Front controlled manual damper allows for fine tuning your alternative fuels
  • Air wash glass
  • Large viewing window
  • Approved for mobile or modular homes with optional fresh air kit (sold separately)
  • Click to learn more about wood and wood pellet stoves in our buying guide
  • Click here for more information on Electronic Recycling Programs
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Front Product Height (in.)
23.75
Front Product Width (in.)
27.75
Product Depth (in.)
31
Rear Product Height (in.)
23.75
Rear Product Width (in.)
27.75

Details

Area Heated (Sq. Ft.)
2000
Features
Adjustable feed rate,Air Wash System,Mobile home approved,Zero Clearance
Heat Output (BTU/hour)
52000
Hopper Capacity (lb.)
40
Included
Door,Firebox,Hopper,Plug-In Kit,Trim Kit
Product Weight (lb.)
320
Returnable
90-Day
Style
Farmhouse,Mission,Rustic,Southwestern
Total BTU
52000 Btu

Warranty / Certifications

Certifications and Listings
EPA Approved
Manufacturer Warranty
3 yrs on Firebox, Door and Heat Exchanger. 1 Yr on remainder

Questions & Answers

25Questions10Answers

does there need to be any additional access to the back or the side of the unit?

Asked by Tammi October 8, 2020
1
Answer

Hi Tammi! Thank you for your interest in our Multi-Fuel Insert! No, although it would be convenient you do not need constant access to the back or sides of the unit. However, the unit does need to be pulled out and maintained at the end of every burn season!

You said it can burn 18" logs. Does that mean I can alsi burn woid in this insert?

Asked by Elizabeth July 9, 2020
1
Answer

This is a wood pellet burner only, the 18" logs would have been the fake logs we use for decoration.

My fireplace depth 18 at the top and 26 at the bottom, width and height are okay. Can we make it ...

Asked by Ccary November 7, 2019
1
Answer

NO this will not work

what is the total diameter of the face plate of the stove including the insert

Asked by Derick October 21, 2019
1
Answer

This measures 32.5 tall x 44.5 wide

How many inches does pellet stove protrude from faceplate

Asked by Kris October 13, 2019
1
Answer

About 10 inches not including the handle.

can I burn pellets

Asked by Gregg December 30, 2018
1
Answer

Sure. this stove can burn pellets as well as corn.

What size stainless steel liner does it need

Asked by Travis October 24, 2018
1
Answer

This requires 4” Pell vent “PL” piping for a chimney liner.

Will it vent directly up the fireplace flue if used as a fireplace insert?

Asked by Gene September 21, 2018
1
Answer

Yes it will. You must run the 3-4 inch pellet pipe the length of the chimney.

with a 40lb hopper capacity how long will a full hopper last on low setting

Asked by homer September 19, 2018
1
Answer

On the lowest setting around 30 hours.

How big of a opening will the trim kit cover

Asked by Ross June 16, 2018
1
Answer

it should cover a 31" x 44" area

44.25 in. 2000 sq. ft. Multi-Fuel Fireplace Insert - page 2

Customer Reviews

  • 3.7
    out of 14 reviews
  • 67% recommend this product
Filter by:
Showing 1-10 of 14 reviews
Great! One issue that I fixed!
So I bought this a couple months ago and immediately we had a loud high pitch whistling when it would blow heat into the room. Well after many calls and messing with the darn thing, we figured it out. We literally has to take a Sawzaw and cut "bridges" between each hole where the heat blows out. It's an air movement problem. Just cut the bridges and it was 95% better! At full blast there is barely a whistle! If you wanted to cut all the holes out, by all means go for it but we just cut till it sounded better. Other than that it's perfect! We love our pellet stove! The reason I am writing this review is to inform because I was spending hours looking up this issue with no answers online so I am really hoping this helps!
by Kgaunt1
7 people found this helpful
Good overall stove, great for the price
I purchased this and installed it October 2014. This thing ran 24/7 (except when off for maintenance) as I did not hook it up to a thermostat. Kept the entire upstairs of our house at 75 degrees (running on automatic at lowest setting) and only burned 2.5 tons for the whole winter. Never had a problem with it unless someone for got to fill it and it ran out (happened twice while I was out of town). The amount of ash in the tray and build up really depends on the brand of pellet - I ran 2 different brands (2 tons of one and 1/2 of another). The 1/2 ton was a brand from Home Depot - it burned ok, but I had more ash in tray, on the inside, and more build up (caking) in the pot. The other brand (New England Wood Pellet) was better (in my experience). For anyone that says that it goes on it's lowest setting, I will say that getting the dampener set right was key - I got mine set that it didn't burn too hot/fast, and not too slow (should be a lot of yellow flame, but not just yellow and roaring). Once this is set, I cut a small block of wood that keeps the dampener exactly where it needs to be. See pictures. The bad - filling is a bit of a pain. Small opening and you need to push them back. I do not fill using the bag, I keep a metal trash can with the pellets in it and scoop out what I need - not a perfect solution, but it works.
by Chris
Response from USStoveExpertAug 21, 2015
Thank you for your review. We would like to hear more from you! USSC
15 people found this helpful
It is not as powerful as our other pellet stove, however it keeps the house warm. My husband thi...
It is not as powerful as our other pellet stove, however it keeps the house warm. My husband thinks that it doesn't have as many BTU's as the other stove. Easy to put in, took a bit to get it dialed in to work correctly.
by KimB
Rating provided by a verified purchaser...
Rating provided by a verified purchaser
by HomeDepotCustomer
It's been in now for a week and I love it. I must get a thermostat it was 80 degrees when I got...
It's been in now for a week and I love it. I must get a thermostat it was 80 degrees when I got up this morning. I was looking for one in the box.
by Mrcoolbreeze
A real nice furnace. ...
A real nice furnace.
by James
The stove works well keeps the house at 70 on setting 2 with little or no wind put it a little hi...
The stove works well keeps the house at 70 on setting 2 with little or no wind put it a little higher if it is windy. The nice thing it runs all the time no thermostat that shuts it down and then has to play catch up.
by Dave
We’ve had to replace the circuit board already.....died after two...
We’ve had to replace the circuit board already.....died after two days.
by Nancy
Response from USStoveExpertOct 24, 2019
Call our customer service there may be a different error or possibly just a bad part call us Monday to Friday 8:00 – 4:00pm CST at 1-423-837-2100. USSC
1 person found this helpful
Make sure to use the Dura vent pellet venting system...
Make sure to use the Dura vent pellet venting system as your aplacation instructions exhaust venting is extremely important in the proper operation of this stove .
by HomeDepotCustomer
1 person found this helpful
Takes to lone to start up ...
Takes to lone to start up
by Bob
Showing 1-10 of 14 reviews
