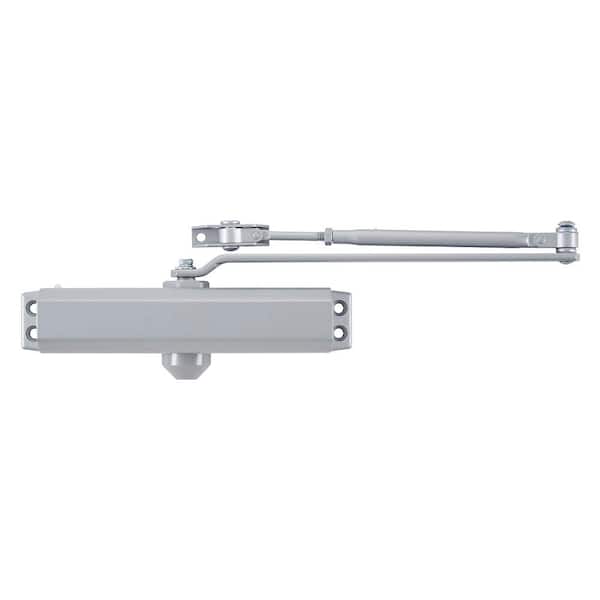

Medium-Duty Aluminum Commercial Door Closer

  • Comes with parallel arm bracket for Tri-Pack installation
  • Works with interior commercial doors from 44 to 188 lbs.
  • Lifetime warranty for your satisfaction
  • See More Details

Frequently Bought Together

+
+
Price:
$5498

Product Overview

The Universal Hardware Aluminum Medium-Duty Commercial Door Closer is designed for many different commercial door applications. This Medium-Duty Commercial Door Closer is suitable for interior commercial doors ranging from 44 lbs. to 188 lbs. The closer is packaged with a parallel arm bracket to allow for Tri-Pack installation.
  • California residents
  • Ideal for 44 - 188 lb. exterior commercial doors
  • Size 3 closer
  • Aluminum construction
  • Non-hold-open
  • Includes a parallel arm bracket for TRI pack installation
  • UL listed

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
12
Product Height (in.)
4.5
Product Width (in.)
10

Details

Adjustable closing speed
Yes
Brand Compatibility
All Standard
Builders Hardware Product Type
Door Closer
Color
Aluminum
Color Family
Metallics
Commercial / Residential
Commercial
Door Closer Features
Adjustable Closing Speed
Door Closer Operation
Hydraulic
Hardware Finish Family
Gray
Interior/Exterior
Exterior
Material
Aluminum
Returnable
180-Day
Weight load (lb.)
188

Warranty / Certifications

Certifications and Listings
UL Listed
Manufacturer Warranty
Lifetime

Questions & Answers

15Questions36Answers

What is the difference between this closer and the one that is exactly like it but labeled "Heavy...

Asked by David40 September 15, 2019
5
Answers

Look at the PDFs of "Installation Instructions" for both units.

can this be used to close a door that opens internally?

Asked by confusion November 23, 2015
5
Answers

Yes, see PDFs at bottom of closer's web page.

Is this water resistant?

Asked by Abraham March 23, 2019
4
Answers

I don't recommend submerging in water :p But it is tough build closer

Heavy door I need to close slowly. Will this work?

Asked by Ethan December 1, 2015
4
Answers

Yes. I installed it on a very heavy wooden door

Can we stop it’s Moving Action when need to move large stuff into the house?

Asked by RL March 6, 2019
4
Answers

Only by removing unit or removing small bolts that hold arm joints together. But no designed Hold Open mechanism.

Is this hydraulic

Asked by Jenny February 5, 2017
4
Answers

They have "adjuster valves", so I assume that implies a hydraulic mechanism.

Is this reversal ? Both ways to install at the door

Asked by Ana June 8, 2019
3
Answers

Yes.

This shows a separate bracket, how does this work?

Asked by Rodney August 8, 2017
3
Answers

Allows for "parallel arm" installation. See PDF instructions for closers of interest. Access PDFs at bottom of closer's web page.

How do we adjust the opening resistance on this model door closer?

Asked by Chris July 27, 2020
2
Answers

there's a screw for speed resistance and ond for opening and closing resistance Very simple to do

What is the spacing on the mounting bolts?

Asked by GS May 12, 2016
2
Answers

Look under the heading "Product Overview" on the right you will see a link for "instructions". The instruction page gives you the exact measurements and bolt pattern.

Medium-Duty Aluminum Commercial Door Closer - page 2

Customer Reviews

  • 103 Customer Reviews
  • 4.2 out of 5 stars overall
89% of customers recommended.
Overall Ratings
5star-icon(51)
4star-icon(36)
3star-icon(7)
2star-icon(2)
1star-icon(7)
Sort By:
Installation was easy thanks to easy to follow instructions
Installation was easy thanks to easy to follow instructions
Was this helpful?
0
0
Easy to install. Clear details on the manual.you can use it for left or right.
Easy to install. Clear details on the manual.you can use it for left or right.
Was this helpful?
1
0
Mesa, AZ
Worked great on my garage entry door
Quality :
5
Value :
4
I just installed this on the solid core door leading from my house to the garage to eliminate the constant slamming caused by those (code required) spring loaded hinges. It worked very well. I 'unwound' the two spring hinges (using a suitable allen wrench inserted into the top of the hinge, slightly increase tension, pull the small locking pin, then carefully unwind the internal spring until tension is fully released). Once those were loose I set the closing and latching speed on the new closer. I had to slightly modify the instructions and mount the forearm foot about 3/4 of an inch higher than specified, because I needed the screws to hit the 2X4 header behind the upper trim moulding. Following the instructions exactly (regular arm installation) would result in the screws entering the cavity above the door frame and below the header, meaning only the trim moulding would be supporting the arm. That would soon fail. The forearm unit pivots at both ends, though, so no problem doing that. Took roughly 30 minutes and no more slamming door...
Was this helpful?
2
0
Redding, CA
Decent Product
Quality :
4
Value :
4
Got this for my garage-to-house door. Wanted one to mount inside the garage and swing wide. This does the job. Pros: - Heavy duty. Feels like it will last a long time. - Accurate adjustments for swing speed and latch speed. Easy to adjust. - Versatile mounting hardware for wood or metal frames, and interior or exterior (my application) use. - Smooth action - Lifetime warranty on exterior package, but nothing inside except phone number and email address. Cons: - Plastic packaging is super heavy duty. Had to use a razor knife and it was very hard to cut. Dangerous. - Very poor instructions. I kept looking for another sheet. No chart of included parts or which parts are used for the various installations. But the measurements for screw placement were accurate and made sense after a few read-throughs. Pictures were okay, but not great. Could have really used an intro "Overview" section on how the product can be used (should be on exterior of packaging, too). - Paint flaked off my "bronze" unit even through careful handling. But I think it will be fine now that it's up on the door. - Model number was referenced on instructions (which applied to more than one model) and here at homedepot.com, but model number is in tiny gray text on package--hard to find. - Made in China.
