Model # QPF 2246 2005

Internet #202038767

Store SKU #475253

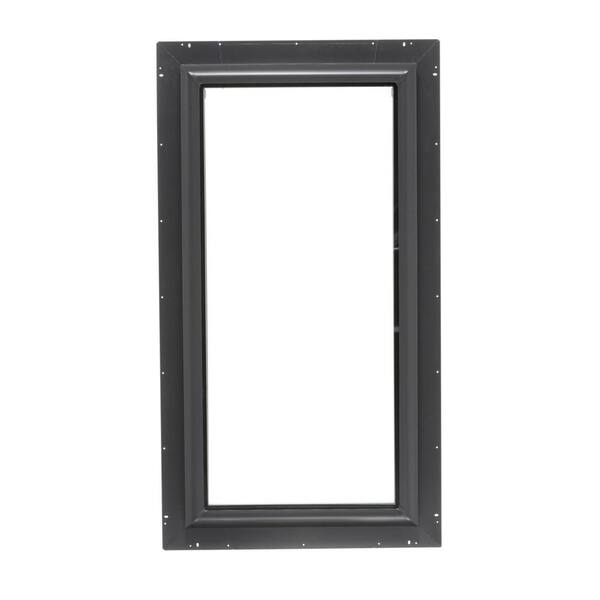

VELUX 22-1/2 in. x 46-1/2 in. Fixed Pan-Flashed Skylight with Tempered Low-E3 Glass

VELUX

22-1/2 in. x 46-1/2 in. Fixed Pan-Flashed Skylight with Tempered Low-E3 Glass

$28900 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

VELUX skylights are an energy-efficient way to bring sunlight into a home and make dark rooms come to life. Bringing natural light into a home through a skylight decreases the need for electricity while maintaining privacy. Installing a skylight is one of the most impactful ways to enhance both the brightness and beauty of a room.
  • Features pre-installed metal pan-flashing, welded and painted flashing joints, and protective aluminum cladding - a combination which adds strength and durability
  • Designed for use with roofing sealant based installation with thin roofing materials, like asphalt shingles
  • Consider adding a VELUX solar powered blind (sold and shipped separately) which is eligible for a 30% federal solar tax credit and allows you to control the light
  • Consider upgrading to a solar powered fresh air skylight (model VSS) to bring both natural sunlight and fresh air into your home using only the power of the sun, plus it is eligible for a 30% federal solar tax credit, making it very affordable
  • Features tempered energy efficient, Low-E3, argon-filled, dual glass panes
  • Please note: We recommend and most building codes require laminated glass for out of reach applications
  • VELUX QPF 2246 dimensions for rough opening are 22-1/2 in. wide x 46-1/2 in. tall

Product Overview

Model #: QPF 2246 2005
Sku #: 475253
Internet #: 202038767

VELUX skylights are an energy-efficient way to bring sunlight into a home and make dark rooms come to life. Bringing natural light into a home through a skylight decreases the need for electricity while maintaining privacy. Installing a skylight is one of the most impactful ways to enhance both the brightness and beauty of a room.

  • Features pre-installed metal pan-flashing, welded and painted flashing joints, and protective aluminum cladding - a combination which adds strength and durability
  • Designed for use with roofing sealant based installation with thin roofing materials, like asphalt shingles
  • Consider adding a VELUX solar powered blind (sold and shipped separately) which is eligible for a 30% federal solar tax credit and allows you to control the light
  • Consider upgrading to a solar powered fresh air skylight (model VSS) to bring both natural sunlight and fresh air into your home using only the power of the sun, plus it is eligible for a 30% federal solar tax credit, making it very affordable
  • Features tempered energy efficient, Low-E3, argon-filled, dual glass panes
  • Please note: We recommend and most building codes require laminated glass for out of reach applications
  • VELUX QPF 2246 dimensions for rough opening are 22-1/2 in. wide x 46-1/2 in. tall

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Daylight area (sq. ft.)
5.87
Product Depth (in.)
3.5
Product Height (in.)
48.19
Product Width (in.)
24.19
Rough Opening Height (In.)
46.5 in
Rough Opening Width (In.)
22.5 in

Details

Cladding Type
Aluminum
Color Family
Gray
Color Family
Grays
Flashing Included
Yes
Frame Material
Wood
Glazing type
Tempered glass
Hardware Included
Yes
Low-E (Y,N)
Yes
Material
Glass
Maximum roof pitch (degrees)
60
Minimum roof pitch (degrees)
14
Product Weight (lb.)
52.0lb
Returnable
90-Day
Severe weather ready
Yes
Skylight Mounting Type
Self Flashed
Skylight material
Glass
U-Factor
0.44
UV protection (%)
95.2

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern

Specifications

Dimensions

Daylight area (sq. ft.)
5.87
Product Depth (in.)
3.5
Product Height (in.)
48.19
Product Width (in.)
24.19
Rough Opening Height (In.)
46.5 in
Rough Opening Width (In.)
22.5 in

Details

Cladding Type
Aluminum
Color Family
Gray
Color Family
Grays
Flashing Included
Yes
Frame Material
Wood
Glazing type
Tempered glass
Hardware Included
Yes
Low-E (Y,N)
Yes
Material
Glass
Maximum roof pitch (degrees)
60
Minimum roof pitch (degrees)
14
Product Weight (lb.)
52.0lb
Returnable
90-Day
Severe weather ready
Yes
Skylight Mounting Type
Self Flashed
Skylight material
Glass
U-Factor
0.44
UV protection (%)
95.2

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern

Questions & Answers

Do I need a "flashing kit"?

Do I need a "Flashing kit" for this skylight?
Asked by: King
No, you do not need to purchase a flashing kit for the QPF Pan-Flashed unit, as the flashing is already integrated onto the skylight. Please be aware that this unit is compatible with an asphalt shingled roof that has at least a 3/12 pitch. Thank you for choosing VELUX!
Answered by: BrandAnswers
Date published: 2017-04-21

Is this a Deck mounted or curb mounted window

Asked by: flash
This is a self flash mounted Skylight.
Answered by: CommunityAnswer
Date published: 2016-03-11

Can these be flashed with a flashing kit?

It looks like there is no way to add a flashing kit to the exterior of the 24 x 24 skylight..
Asked by: Raingard
There is no need to use an additional flashing kit with the QPF Skylight. The flashing system is already integrated onto the unit, which makes for a quicker and easier installation.
Answered by: CommunityAnswer
Date published: 2017-09-29

Can this product be installed on a flat roof?

Asked by: Ric
No, the QPF pan-flashed skylight has a minimum pitch requirement of 14 degrees (3/12).
Answered by: CommunityAnswer
Date published: 2016-02-16
  • y_2017, m_11, d_17, h_21CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_34
  • loc_, sid_202038767, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 151ms
  • QUESTIONS, PRODUCT

Customer Reviews

22-1/2 in. x 46-1/2 in. Fixed Pan-Flashed Skylight with Tempered Low-E3 Glass is rated 4.9 out of 5 by 19.
Rated 5 out of 5 by from order was delivered fast, installing window quick and easy... order was delivered fast, installing window quick and easy
Date published: 2017-06-20
Rated 5 out of 5 by from This product arrived in one day!!! . Great light fixed pan flashed great. built well. Made ... This product arrived in one day!!! . Great light fixed pan flashed great. built well. Made a cave room in a great place to spend time. 2nd story attic conversion. What a difference. I put in 3.
Date published: 2017-10-17
Rated 5 out of 5 by from Good to excellent quality, easy to install. Does everything... Good to excellent quality, easy to install. Does everything a skylight's supposed to do.
Date published: 2017-06-20
Rated 5 out of 5 by from Is constructed good and was very easy to install... Is constructed good and was very easy to install
Date published: 2017-08-30
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-07-13
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-08-23
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-11-15
Rated 5 out of 5 by from Great Skylights, Great value! These were purchased as replacements for the "OEM" skylights originally installed on our home. The roof was due for replacement, and one of the original skylights had started leaking. Our roofer had no problem installing the Veluxe lights, and they look infinitely better from the inside. Although they have a slightly smaller window area, they let in far more light, and are much quieter during the rain. Note: Some "experts" will tell you that pan-flashed skylights are significantly inferior to other mounting techniques. It is all down to the quality of the lights themselves, and your installer. the Veluxe skylights are clearly excellent, and there is no way they could leak if properly installed and sealed.
Date published: 2011-12-21
