Model # VCS 2246 2004

Internet #204463795

VELUX 22-1/2 in. x 46-1/2 in. Solar Powered Fresh Air Venting Curb-Mount Skylight with Laminated Low-E3 Glass

VELUX

22-1/2 in. x 46-1/2 in. Solar Powered Fresh Air Venting Curb-Mount Skylight with Laminated Low-E3 Glass

  • Glass stays cleaner longer with Neat glass coating
  • Laminated glass meets building codes in out of reach applications
  • Eligible for a 30% federal tax credit
$130387 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Glass stays cleaner longer with Neat glass coating
  • Laminated glass meets building codes in out of reach applications
  • Eligible for a 30% federal tax credit
The new solar powered Fresh Air skylight lights up your home and provides proper ventilation using only the power of the sun. It features a solar panel that captures any available daylight and uses it to recharge a highly efficient battery powered operator and control system. The solar panel does not have to be exposed to direct sunlight to function, so it will work on cloudy days and with indirect light.

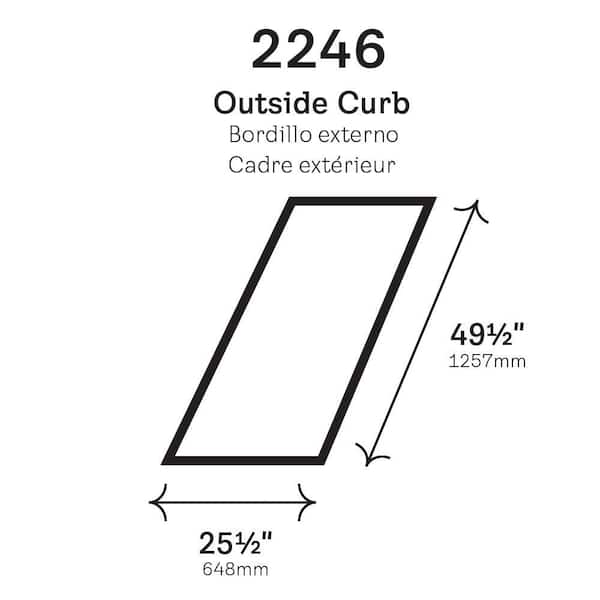

  • Inside curb dimensions for VELUX VCS 2246 models are 22-1/2 in. x 46-1/2 in. and outside curb dimensions are 25-1/2 in. x 49-1/2 in.
  • Eligible for up to a 30% federal tax credit on both product and installation costs, making this product very affordable
  • Qualifies for a 10-year "no leak" installation warranty when installed with VELUX ECL flashing on a shingle roof with a pitch between 10° and 60° or VELUX ECW flashing on a tile roof with a pitch between 14° and 60° (flashing kits are sold separately)
  • Features laminated clean, quiet and safe glass with a neat glass coating that keeps your skylight cleaner, reduces unwanted outside noise, is energy efficient and has an extra glass pane for added safety
  • Operated by a VELUX integra control pad (included) with easy touch screen control
  • An integrated rain sensor will close the skylight automatically, in case of inclement weather
  • Consider adding a VELUX solar powered blind (sold and shipped separately) which is eligible for up to a 30% federal tax credit and allows you to control the light
  • Click below to view and purchase compatible VELUX flashing models
  • Click here to view/purchase VELUX shingle, shake and slate roof flashing model ECL 2246 0000
  • Click here to view/purchase VELUX tile roof flashing model ECW 2246 0000



  • Click here for more information on Electronic Recycling Programs

Product Overview

  • Glass stays cleaner longer with Neat glass coating
  • Laminated glass meets building codes in out of reach applications
  • Eligible for a 30% federal tax credit
Model #: VCS 2246 2004
Internet #: 204463795

The new solar powered Fresh Air skylight lights up your home and provides proper ventilation using only the power of the sun. It features a solar panel that captures any available daylight and uses it to recharge a highly efficient battery powered operator and control system. The solar panel does not have to be exposed to direct sunlight to function, so it will work on cloudy days and with indirect light.

  • Inside curb dimensions for VELUX VCS 2246 models are 22-1/2 in. x 46-1/2 in. and outside curb dimensions are 25-1/2 in. x 49-1/2 in.
  • Eligible for up to a 30% federal tax credit on both product and installation costs, making this product very affordable
  • Qualifies for a 10-year "no leak" installation warranty when installed with VELUX ECL flashing on a shingle roof with a pitch between 10° and 60° or VELUX ECW flashing on a tile roof with a pitch between 14° and 60° (flashing kits are sold separately)
  • Features laminated clean, quiet and safe glass with a neat glass coating that keeps your skylight cleaner, reduces unwanted outside noise, is energy efficient and has an extra glass pane for added safety
  • Operated by a VELUX integra control pad (included) with easy touch screen control
  • An integrated rain sensor will close the skylight automatically, in case of inclement weather
  • Consider adding a VELUX solar powered blind (sold and shipped separately) which is eligible for up to a 30% federal tax credit and allows you to control the light
  • Click below to view and purchase compatible VELUX flashing models
  • Click here to view/purchase VELUX shingle, shake and slate roof flashing model ECL 2246 0000
  • Click here to view/purchase VELUX tile roof flashing model ECW 2246 0000



  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Daylight area (sq. ft.)
5.87
Product Depth (in.)
5.625
Product Height (in.)
51.375
Product Width (in.)
27.375
Rough Opening Height (In.)
46.5
Rough Opening Width (In.)
22.5

Details

Cladding Type
Aluminum
Color
Neutral Gray
Color Family
Gray
Color Family
Grays
Flashing Included
No
Frame Material
Wood
Glazing type
Laminated glass
Hardware Included
Yes
Insect screen
Yes
Low-E (Y,N)
Yes
Material
Glass
Maximum roof pitch (degrees)
60
Minimum roof pitch (degrees)
0
Operation
Push button
Operation Type
Solar
Product Weight (lb.)
79lb
Remote Control
Yes
Returnable
90-Day
Rotates for Cleaning
No
Severe weather ready
Yes
Skylight Mounting Type
Curb Mount
Skylight material
Glass
Telescoping control rod
No
U-Factor
.53
UV protection (%)
99.9

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern

Specifications

Dimensions

Daylight area (sq. ft.)
5.87
Product Depth (in.)
5.625
Product Height (in.)
51.375
Product Width (in.)
27.375
Rough Opening Height (In.)
46.5
Rough Opening Width (In.)
22.5

Details

Cladding Type
Aluminum
Color
Neutral Gray
Color Family
Gray
Color Family
Grays
Flashing Included
No
Frame Material
Wood
Glazing type
Laminated glass
Hardware Included
Yes
Insect screen
Yes
Low-E (Y,N)
Yes
Material
Glass
Maximum roof pitch (degrees)
60
Minimum roof pitch (degrees)
0
Operation
Push button
Operation Type
Solar
Product Weight (lb.)
79lb
Remote Control
Yes
Returnable
90-Day
Rotates for Cleaning
No
Severe weather ready
Yes
Skylight Mounting Type
Curb Mount
Skylight material
Glass
Telescoping control rod
No
U-Factor
.53
UV protection (%)
99.9

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern

Questions & Answers

Open past the venting position

If the powered actuator arm is disconnected, can the skylight be manually opened past the venting position to allow a person to climb through? Does the hinge open that far?
Asked by: JB
Thank you for the replies! The roof is fairly flat So I am not worried about it sliding off. I think 45 degrees is enough to get through if needed. Just curious, is there terminology for an "accessible skylight" that is designed to allow someone to climb through. I think this product will work for me
Answered by: JB
Date published: 2016-09-13

Does it come with blinds

Asked by: Louis
This does not automatically come with blinds, however, you can order a blind for it and have it pre-installed. Thank you for choosing VELUX!
Answered by: VELUXCustomerServiceTeam
Date published: 2017-10-05

does this come with a screen

does this come with a screen
Asked by: Molly
Yes, our Venting Skylights come with an Insect Screen. Thank you for choosing VELUX!
Answered by: VELUXCustomerServiceTeam
Date published: 2017-11-13

Does "curb mounted" mean a curb must be built on-site to accommodate the skylight, or is the "cu...

Does "curb mounted" mean a curb must be built on-site to accommodate the skylight, or is the "curb" already part of the skylight?
Asked by: Mark
The curb is not included.
Answered by: CommunityAnswer
Date published: 2017-06-09
  • y_2017, m_12, d_14, h_20CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_35
  • loc_, sid_204463795, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 101ms
  • QUESTIONS, PRODUCT

Customer Reviews

22-1/2 in. x 46-1/2 in. Solar Powered Fresh Air Venting Curb-Mount Skylight with Laminated Low-E3 Glass is rated 4.7 out of 5 by 16.
Rated 5 out of 5 by from I love my new skylight! I didn't think I wanted a skylight that vented, but now that I have one,... I love my new skylight! I didn't think I wanted a skylight that vented, but now that I have one, I so happy with it! Opening the window allows all the hot air to escape and the temperature inside is immediately cooler. It allows my air conditioner to do a better job without having to work so hard. The blinds are a great addition and the remote is programmable so I can set it and forget it. I can't wait for the next rain so I can stand inside and watch the rain drops fall on the glass! The only issue I had with it involved the installation. It wasn't clear how to open the window until we called customer service. It is necessary to open the window prior to installation, since the manual and clips were inside under the glass but on top of the screen. Clearer written instructions should have been provided or the manual shouldn't have been placed inside prior to packaging.
Date published: 2017-10-17
Rated 5 out of 5 by from We replaced an acrylic skylight that had developed a leak... We replaced an acrylic skylight that had developed a leak between the layers of the dome. The Velux skylight fit perfectly and was simple to install. The skylight is in the kitchen and that room has limited venting options, mainly a sliding door to outside. The venting skylight is very effective. The control is easy to use and intuitive. Does exactly what we wanted. The 30% tax credit helps.
Date published: 2017-07-25
Rated 5 out of 5 by from This was the easiest install ever! I'm a DYIer ,most important use the flashing kit for the extra... This was the easiest install ever! I'm a DYIer ,most important use the flashing kit for the extra $95.00,built the curb and wrap in waterproof membrane.The skylight sets on top and attaches with 12 screws.Control set up was simple,and I'm an old guy not computer savvy .Tested rain sensor,works great.Highly recommend Velux products,Remember you get what you pay for!
Date published: 2017-10-10
Rated 5 out of 5 by from So far so good.No need to power line the device... So far so good.No need to power line the device and the skylight is controlled by a wireless remote that can control multiple skylights! Makes we want 5 more skylights. VELUX said rechargeable battery can be replaced, so no concern about long term functioning. Also, I believe 30% fed tax credit.
Date published: 2017-10-24
Rated 5 out of 5 by from Well built, installed very easily in our shower alcove and... Well built, installed very easily in our shower alcove and really transformed the room. The solar-powered operation works well and was perfect for our application in a vaulted ceiling where running power would have been extremely difficult (and expensive).
Date published: 2017-11-14
Rated 4 out of 5 by from It is partially installed and not in use yet... It is partially installed and not in use yet
Date published: 2017-11-01
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-10-04
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-10-25
