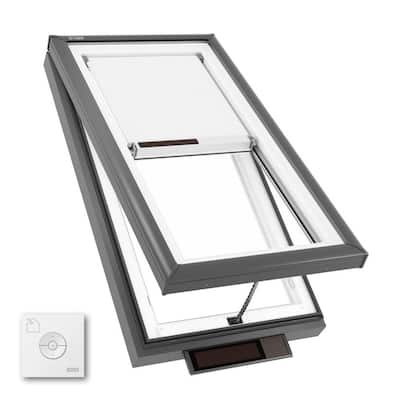

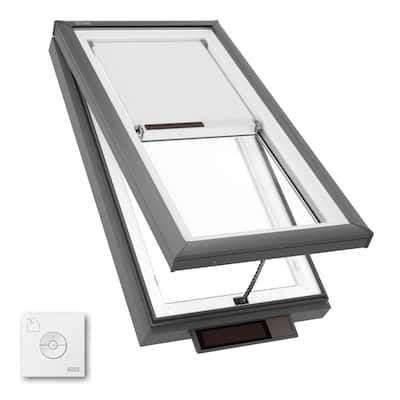

22-1/2 in. x 46-1/2 in. Solar Powered Venting Curb Mount Skylight w/ Laminated Low-E3 Glass, White Room Darkening Shade

$1935.87
Apply Now
$undefined.00 /mo** suggested payments with months** financingApply Now
  • 10-year hail warranty against glass breakage
  • Includes solar powered pre-installed shade and remote
  • Remote control allows for convenient operation
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

VELUX VCS solar powered Fresh Airskylights light up your home and provide ventilation using only the power of the sun. They feature a solar panel that captures any available daylight and uses it to recharge a highly efficient battery powered operator and control system. In addition, this model includes a factory-installed solar powered room darkening shade that utilizes a double-pleated honeycomb structure with an interior aluminum coating to block even the brightest sunlight, making it ideal for bedrooms, entertainment rooms or any other space where light control is important. These skylights are ideal for replacing existing curb mount skylights, including old plastic bubble skylights and can be opened to create a chimney effect, drawing air upward to improve air quality within your home. This model can be installed on a site-built curb on a flat roof or up to a 60° roof pitch.

Highlights

  • Solar powered skylight and shade have built-in solar panels and rechargeable battery-operated control systems so no electrical wiring or electrician is needed for installation
  • VCS 2246 models are designed to fit a site-built curb (not included) with outside dimensions 25-1/2 in. width x 49-1/2 in. length
  • Qualifies for a 10-year "no leak" installation warranty when installed with ECL flashing on a shingle roof with a pitch between 10° - 60° or ECW flashing on a tile roof with a pitch between 14° - 60° (flashing kits are sold separately)
  • Features clean, quiet and safe Low-E3 laminated glass with a neat glass coating that keeps your skylight cleaner, reduces unwanted outside noise and comes with a 10-year hail warranty against glass breakage
  • Consists of double paned argon gas filled Low-E3 glass that provides excellent energy performance for year round comfort, plus the added safety of laminated glass, which building codes require for out of reach applications
  • Easy to use remote controls and insect screen are included
  • Integrated rain sensor will close the skylight automatically, in case of inclement weather
  • Factory-installed shade color: white
  • Click below to view and purchase compatible VELUX flashing models
  • Click here to view/purchase VELUX shingle, shake and slate roof flashing model ECL 2246 0000
  • Click here to view/purchase VELUX tile roof flashing model ECW 2246 0000
  • ENERGY STAR
  • Florida product approval FL13560.1 (VCS skylights with 04 laminated glass, size 4646 and smaller: SKG-PG55, approved for use outside HVHZ, not impact resistant, design pressure +230/-55)
  • Texas Department of Insurance TDI SK03: VELUX VCS skylights with non-impact resistant glass are compliant with wind load criteria in Chapter 3 of the IRC and Section 1609 of the IBC
  • Click here to learn more about Eco Options and Energy Efficiency
  • Click here for more information on Electronic Recycling Programs
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 315974251

Model # VCS 2246 2004CS00W

Store SKU # 1006105716

Specifications

Dimensions: H 51.38 in, W 27.38 in, D 5.625 in

Dimensions

Product Depth (in.)

5.625 in

Product Height (in.)

51.38 in

Product Width (in.)

27.38 in

Rough Opening Height (in.)

46.5 in

Rough Opening Width (in.)

22.5 in

Details

Cladding Type

Aluminum

Features

Adjustable, Argon Gas Filled, Insect Screen, Light Transmittal, Pre-installed Blind, Remote Controlled, Severe Weather Ready, Venting

Frame Material

Aluminum

Glass Type

Energy Efficient Glass, Insulated Glass, Laminated Glass, Low-E Glass, Tinted Glass

Included

Blind, Hardware, Remote Control, Screen

Maximum Roof Pitch (degrees)

60

Minimum Roof Pitch (degrees)

0

Operation

Push button

Operation Type

Solar Powered

Product Weight (lb.)

83.8 lb

Returnable

90-Day

Skylight Mounting Type

Curb Mount

U-Factor

.53

UV Protection (%)

99.9

Warranty / Certifications

Energy Star Qualified

North-Central, Northern, South-Central, Southern

Manufacturer Warranty

10-year limited

Questions & Answers

9Questions
caret
Q:what is the difference between a curb mount and a deck mount?
by|Jul 7, 2024
1 Answer
Answer This Question

A:  It is the way the skylight attaches to the roof. VELUX deck mounted skylights attach directly to the roof deck and has a lower profile. It has a minimum pitch requirement of 3:12 pitch and can be used on a maximum roof pitch of 137:12. VELUX curb mounted skylights are installed on a 2x4 or 2x6 wood frame or "curb" that is secured to the roof deck. Similar to how the lid on a shoebox appears. This type of skylight can be used on a flat roof as well as a sloped roof up to a 20:12 roof pitch maximum.

by|Jul 8, 2024
    caret
    Q:What's the maximum opening angle of the skylight?
    by|Jun 10, 2024
    1 Answer
    Answer This Question

    A:  Hi Zack, the drive chain can open this skylight sash a maximum of 12 inches or 28 degrees.

    by|Jun 11, 2024
      caret
      Q:Is there a screen to keep bugs out?
      by|Aug 17, 2023
      1 Answer
      Answer This Question

      A:  This VELUX skylight will include an insect screen.

      by|Feb 2, 2024
        3 found this answer helpful
        caret
        Q:Can this Window be installed on a flat roof?
        by|Mar 3, 2023
        1 Answer
        Answer This Question

        A:  Yes, VELUX Curb Mounted Skylights can be used on a flat roof. This includes our FCM (fixed) VCM (manually venting) VCE (electric venting) and our VCS (solar powered, venting) models..

        by|Feb 2, 2024
          1 found this answer helpful
