#1 Home Improvement Retailer

Internet # 202842939

Model # FCM 2234 0004

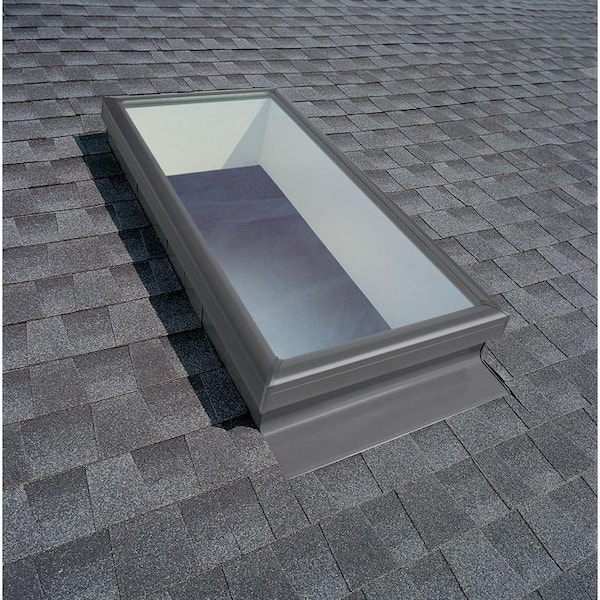

22.5 in. x 34.5 in. Fixed Curb-Mount Skylight with Laminated Low-E3 Glass

$285.00
Apply Now
Pay $260.00 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Glass stays cleaner longer with Neat glass coating
  • Laminated glass meets building codes in out of reach applications
  • Curb mount design ideal for flat or low-slope roof applications
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

VELUX FCM fixed curb mount skylights are ideal for replacing existing curb mount skylights, including old plastic bubble skylights. It can be installed on a flat roof at 0° up to a 60° roof pitch on a site-built curb. VELUX skylights are an energy-efficient way to bring sunlight into a home and make dark rooms come to life, all while maintaining privacy. Installing a skylight is one of the most impactful ways to enhance the brightness and beauty of a room.

Highlights

  • FCM 2234 models are designed to fit a site-built curb (not included) with outside dimensions 25-1/2 in. x 37-1/2 in.
  • Qualifies for a 10-year "No Leak" installation warranty when installed with ECL 2246 flashing on a shingle roof with a pitch between 10° and 60° or ECW 2246 flashing on a tile roof with a pitch between 14° and 60° (flashing kits are sold separately)
  • Features clean, quiet and safe Low-E3 laminated glass with a Neat glass coating that keeps your skylight cleaner, reduces unwanted outside noise and comes warranty with a 10-year hail warranty against glass breakage
  • Consists of double paned argon gas filled low-E3 glass that provides excellent energy performance for year round comfort, plus the added safety of laminated glass, which building codes require for out of reach applications
  • Click below to view and purchase compatible VELUX flashing models
  • Click here to view/purchase VELUX shingle, shake and slate roof flashing model ECL 2246 0000
  • Click here to view/purchase VELUX tile roof flashing model ECW 2246 0000
  • Florida product approval FL13303.2 (FCM skylights with 04 laminated glass, size 2270 and smaller: SKG-PG100, approved for use outside HVHZ, not impact resistant, design pressure +200/-100)
  • Texas Department of Insurance TDI SK03: VELUX FCM skylights with non-impact resistant glass are compliant with wind load criteria in Chapter 3 of the IRC and Section 1609 of the IBC
  • Return Policy
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 202842939

Model # FCM 2234 0004

Specifications

Dimensions: H 39.375 in, W 27.375 in, D 3 in

Dimensions

Product Depth (in.)

3 in

Product Height (in.)

39.375 in

Product Width (in.)

27.375 in

Rough Opening Height (in.)

34.5 in

Rough Opening Width (in.)

22.5 in

Details

Cladding Type

Aluminum

Exterior Color/ Finish

Neutral Gray

Exterior Color/Finish Family

Gray

Features

Argon Gas Filled, Light Transmittal, Severe Weather Ready

Frame Material

Aluminum

Glass Type

Energy Efficient Glass, Insulated Glass, Laminated Glass, Low-E Glass, Tinted Glass

Included

Hardware

Interior Color/Finish Family

Gray

Maximum Roof Pitch (degrees)

60

Minimum Roof Pitch (degrees)

0

Product Weight (lb.)

36.2 lb

Returnable

90-Day

Skylight Mounting Type

Curb Mount

U-Factor

0.48

UV Protection (%)

99.9

Warranty / Certifications

Energy Star Qualified

North-Central, Northern, South-Central, Southern

Manufacturer Warranty

10-year limited

Questions & Answers

555Questions
caret
Q:Is this skylight equipped with impact glass?
by|Jun 3, 2024
1 Answer
Answer This Question

A:  This particular skylight has laminated glass, but the one on this link has Impact Rated: https://www.homedepot.com/p/202329719

by|Jun 4, 2024
    caret
    Q:not sure what the outside of curb length and width is. but the outside of skylight (window) frame is 27"x 51" exactly. need to get this size
    by|May 28, 2024
    1 Answer
    Answer This Question

    A:  The VELUX FCM 2246 0004D is a fixed curb mounted skylight with that dimension. You can find that model on this link: https://www.homedepot.com/p/202038780 If you prefer a venting model, check out the VCS 2246 2004: https://www.homedepot.com/p/204463795 Many VELUX skylights are eligible for a 30% Federal Tax Credit too! Program details are found here: https://www.veluxusa.com/help/tax-credit

    by|May 29, 2024
      caret
      Q:can the 25.5.x25.5 to be open wide enough where a person can go through it?
      by|May 27, 2024
      1 Answer
      Answer This Question

      A:  VELUX venting curb-mounted skylights will have a drive chain that pushes the sash open and not suitable for Egress. Consider our CXP model for flat roofs or our GPU or GXU if you have a sloped roof scenario. Be sure to call VELUX @ 1-800-888-3589 for more details.

      by|May 28, 2024
        caret
        Q:Can you put a reflective film on the inside glass?
        by|May 25, 2024
        1 Answer
        Answer This Question

        A:  Please do not put reflective film onto VELUX Skylights as this can create a "heat sink" which can crack the glass. If you need to reduce heat gain and light, choose a VELUX solar powered shade instead. It will include a remote control and is eligible for a 30% Federal Tax Credit too! Details can be found on the following link: https://www.veluxusa.com/help/tax-credit

        by|May 28, 2024
