Model # FCM 3046 0004

Internet #202842945

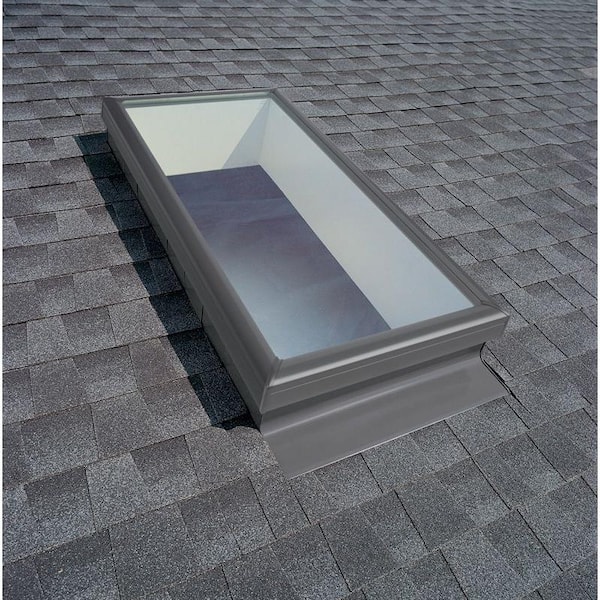

VELUX 30-1/2 in. x 46-1/2 in. Fixed Curb-Mount Skylight with Laminated Low-E3 Glass

VELUX

30-1/2 in. x 46-1/2 in. Fixed Curb-Mount Skylight with Laminated Low-E3 Glass

  • Glass stays cleaner longer with Neat glass coating
  • Laminated glass meets building codes in out of reach applications
  • 10-year Hail Warranty against glass breakage
$29730 /each
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Product Overview

  • Glass stays cleaner longer with Neat glass coating
  • Laminated glass meets building codes in out of reach applications
  • 10-year Hail Warranty against glass breakage
VELUX skylights are an energy-efficient way to bring sunlight into a home and make dark rooms come to life. Bringing natural light into a home through a skylight decreases the need for electricity while maintaining privacy. Installing a skylight is one of the most impactful ways to enhance both the brightness and beauty of a room.
  • Inside curb dimensions for VELUX FCM 3046 models are 30-1/2 in. by 46-1/2 in. and outside curb dimensions for FCM 3046 models are 33-1/2 in. by 49-1/2 in.
  • The FCM skylight qualifies for a 10-year no leak installation warranty when installed with VELUX ECL flashing on a shingle roof with a pitch between 10° and 60° or VELUX ECW flashing on a tile roof with a pitch between 14° and 60° (flashing kits are sold separately)
  • Features laminated clean, quiet and safe glass with a neat glass coating that keeps your skylight cleaner, reduces unwanted outside noise, is energy efficient, and has an extra glass pane for added safety
  • Consider adding a VELUX solar powered blind (sold and shipped separately) which is eligible for up to a 30% federal tax credit and allows you to control the light
  • Consider upgrading to a VELUX solar powered fresh air skylight (model VCS) to bring both natural light and fresh air into your home using only the power of the sun, plus it is eligible for up to a 30% solar tax credit, making it very affordable
  • Click below to view and purchase compatible VELUX flashing models
  • Click here to view/purchase VELUX shingle, shake, and slate roof flashing model ECL 3046 0000
  • Click here to view/purchase VELUX tile roof flashing model ECW 3046 0000



Product Overview

  • Glass stays cleaner longer with Neat glass coating
  • Laminated glass meets building codes in out of reach applications
  • 10-year Hail Warranty against glass breakage
Model #: FCM 3046 0004
Internet #: 202842945

VELUX skylights are an energy-efficient way to bring sunlight into a home and make dark rooms come to life. Bringing natural light into a home through a skylight decreases the need for electricity while maintaining privacy. Installing a skylight is one of the most impactful ways to enhance both the brightness and beauty of a room.

  • Inside curb dimensions for VELUX FCM 3046 models are 30-1/2 in. by 46-1/2 in. and outside curb dimensions for FCM 3046 models are 33-1/2 in. by 49-1/2 in.
  • The FCM skylight qualifies for a 10-year no leak installation warranty when installed with VELUX ECL flashing on a shingle roof with a pitch between 10° and 60° or VELUX ECW flashing on a tile roof with a pitch between 14° and 60° (flashing kits are sold separately)
  • Features laminated clean, quiet and safe glass with a neat glass coating that keeps your skylight cleaner, reduces unwanted outside noise, is energy efficient, and has an extra glass pane for added safety
  • Consider adding a VELUX solar powered blind (sold and shipped separately) which is eligible for up to a 30% federal tax credit and allows you to control the light
  • Consider upgrading to a VELUX solar powered fresh air skylight (model VCS) to bring both natural light and fresh air into your home using only the power of the sun, plus it is eligible for up to a 30% solar tax credit, making it very affordable
  • Click below to view and purchase compatible VELUX flashing models
  • Click here to view/purchase VELUX shingle, shake, and slate roof flashing model ECL 3046 0000
  • Click here to view/purchase VELUX tile roof flashing model ECW 3046 0000



Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Daylight area (sq. ft.)
9.85
Product Depth (in.)
3
Product Height (in.)
51.375
Product Width (in.)
35.375
Rough Opening Height (In.)
46.5
Rough Opening Width (In.)
30.5

Details

Cladding Type
Aluminum
Color Family
Gray
Color Family
Grays
Flashing Included
No
Frame Material
Aluminum
Glazing type
Laminated glass
Hardware Included
Yes
Low-E (Y,N)
Yes
Material
Glass
Maximum roof pitch (degrees)
60
Minimum roof pitch (degrees)
0
Product Weight (lb.)
61lb
Returnable
90-Day
Severe weather ready
Yes
Skylight Mounting Type
Curb Mount
Skylight material
Glass
U-Factor
0.48
UV protection (%)
99.9

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern

Specifications

Dimensions

Daylight area (sq. ft.)
9.85
Product Depth (in.)
3
Product Height (in.)
51.375
Product Width (in.)
35.375
Rough Opening Height (In.)
46.5
Rough Opening Width (In.)
30.5

Details

Cladding Type
Aluminum
Color Family
Gray
Color Family
Grays
Flashing Included
No
Frame Material
Aluminum
Glazing type
Laminated glass
Hardware Included
Yes
Low-E (Y,N)
Yes
Material
Glass
Maximum roof pitch (degrees)
60
Minimum roof pitch (degrees)
0
Product Weight (lb.)
61lb
Returnable
90-Day
Severe weather ready
Yes
Skylight Mounting Type
Curb Mount
Skylight material
Glass
U-Factor
0.48
UV protection (%)
99.9

Warranty / Certifications

Energy Star Qualified
North-Central,Northern,South-Central,Southern

Questions & Answers

Can you install these horizontally? Or does it have to be vertical as shown?

Can you install these horizontally? Or does it have to be vertical as shown?
Asked by: DIY87
You can still use VELUX flashing if you rotate the skylight horizontally; you just have to purchase a different size flashing. If you have a shingle/shake/slate roof and rotate the FCM 2246 horizontally, then you need ECL 4646 0000C flashing; if you rotate the FCM 2246 vertically then you need ECL 2246 0000C flashing. If you have a tile roof and rotate the FCM 2246 horizontally, then you need ECW 4646 0000C flashing; if you rotate the FCM 2246 vertically then you need ECW 2246 0000C flashing. You would only need to use custom flashing if the slope of the roof is too low. The roof pitch for ECL flashing must be between 10-60 degrees and the roof pitch for ECW flashing must be between 14-60 degrees.
Answered by: SW
Date published: 2017-08-08

is glass double-paned?

is glass double-paned?
Asked by: jim
Yes, it is made with argon gas-filled dual glass panes.
Answered by: Gman52
Date published: 2017-02-27

Can you get flashing for a tin roof?

Can you get flashing for a tin roof?
Asked by: go
No, we do not have metal roof flashing available for our Curb Mount Skylights. You will need to construct your own flashing. Thank you for choosing VELUX!
Answered by: BrandAnswers
Date published: 2017-05-24

Is this skylight designed to be used in a very low slope roof condition? 1/4" per foot slope?

Asked by: GC
The skylight can be installed on a shingle, shake or slate roof with a pitch between 10 and 60 degrees or a tile roof with a pitch between 14 and 60 degrees.
Answered by: CommunityAnswer
Date published: 2017-05-24
  • y_2017, m_11, d_18, h_24CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_41
  • loc_, sid_202842945, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 118ms
  • QUESTIONS, PRODUCT

Customer Reviews

30-1/2 in. x 46-1/2 in. Fixed Curb-Mount Skylight with Laminated Low-E3 Glass is rated 4.7 out of 5 by 27.
Rated 5 out of 5 by from This really is a good quality skylight, and fit perfectly... This really is a good quality skylight, and fit perfectly over the existing curb opening. I was replacing a plastic dome type unit that had failed after about 15 years of sun beating down on it. I expect this glass one to last for many more years than the old plastic type.
Date published: 2017-07-05
Rated 5 out of 5 by from Good quality, good shipping. Not a easy job. It was... Good quality, good shipping. Not a easy job. It was hard work but rewarding. A interior bathroom become bright and welcome. Will see how snow will do to it.
Date published: 2017-08-07
Rated 5 out of 5 by from This was a replacement skylight so we already had the flashing installed. Supper easy. This was a replacement skylight so we already had the flashing installed. Supper easy.
Date published: 2017-09-05
Rated 4 out of 5 by from The skylight is very good,but there is no kit for... The skylight is very good,but there is no kit for installing it.Would think if you were selling a product,there would be a kit for it
Date published: 2017-11-02
Rated 5 out of 5 by from We enjoy the light and clarity of the skylight and... We enjoy the light and clarity of the skylight and it keeps the room cool, which is really saying something in Arizona!
Date published: 2017-09-05
Rated 3 out of 5 by from Velux skylight Product is too bright for az. Need more coating options.
Date published: 2017-06-23
Rated 5 out of 5 by from Have not installed yet but quality looks very good . Have not installed yet but quality looks very good .
Date published: 2017-05-23
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2017-10-30
