#1 Home Improvement Retailer

Internet # 314944700

Model # DWM-120-1620

Store SKU # 1005841211

73 ft. x 20 in. 120-Volt Heated Floor Mat (Covers 120 sq. ft. Total)

$1159.95
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • Easy install with single-point power connection & adhesive back
  • For use under tile, stone, brick, or self-leveling mortar
  • The only UL-approved system in North America
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy

Product Details

About This Product

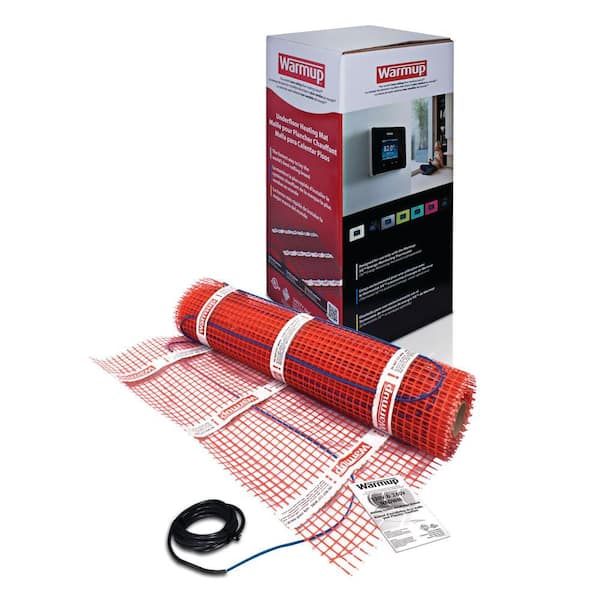

Add a touch of luxury to your home with the Warmup Floor Heating Sticky Mat, for use under tile, stone and LVT. It is designed for use within an adhesive layer under tiles or within a levelling compound under other floor finishes. The fixed spacing and self-adhesive mat makes installation of regularly shaped rooms quick and easy, whilst ensuring precision is maintained.

Highlights

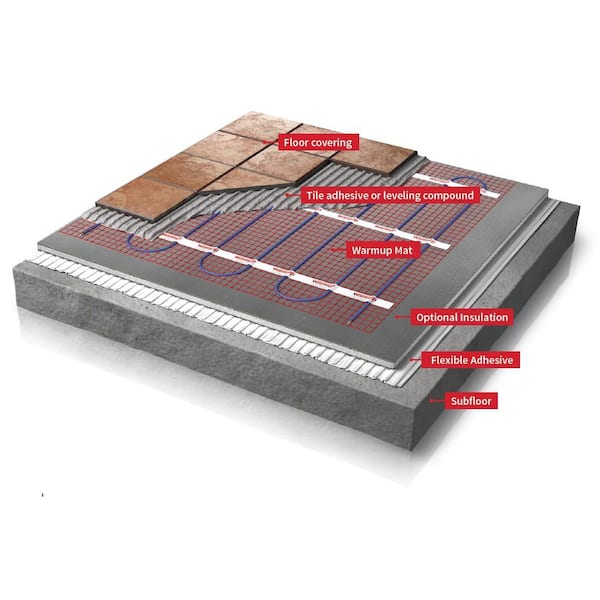

  • Install the heated floor mat below ceramic or porcelain tile, stone or brick floors or in a self-leveling mortar bed below vinyl floors, floating wood and laminate floors
  • Pressure-sensitive adhesive back
  • Single-point power connection to facilitate layout and wiring
  • Mats can be connected in parallel for larger floor surfaces
  • UL listed for safety
  • Covers 120 sq. ft.
  • 120-Volt
  • 1620-Watt
  • 20 in. W x 146 ft. L
  • 13.5 Amp
  • Thermostat sold separately
  • Contact customer support at +1 (888) 927-6333
  • Return Policy

Product Information

Internet # 314944700

Model # DWM-120-1620

Store SKU # 1005841211

Specifications

Dimensions

Product Length (ft.)

73 ft

Product Thickness (in.)

0.125 in

Product Width (in.)

20 in

Details

Material

Fiberglass Mesh

Product Weight (lb.)

15.1 lb

Returnable

90-Day

Total Square Footage Covered

121.7

Voltage (V)

120 V

Wattage (W)

1620 W

Warranty / Certifications

Certifications and Listings

UL Listed, cULus Listed

Manufacturer Warranty

30 Year Warranty

Questions & Answers

21Questions
caret
Q:What size wire should I use for power? Will 14ga be adequate?
by|Mar 19, 2024
1 Answer
Answer This Question

A:  14ga wire should be fine for this application, but we always recommend consulting with your electrician and local codes for safety.

by|Mar 20, 2024
    caret
    Q:Can i connect multiple mats together to heat a larger area and be controlled with one thermostat and powered by one power source? The area is roughly 510sqft
    by|Nov 17, 2023
    1 Answer
    Answer This Question

    A:  Heated floor mats cannot be daisy chained but can be run in parallel to the same thermostat. The maximum number of mats is limited to a total of 15 amps per thermostat and we do recommend that each mat run on its own dedicated circuit.

    by|Nov 17, 2023
      caret
      Q:Ordered the 73 ft x 20 in mat with the 6iE thermostat. Just received and the box says ?Designed for use only with the Warmup 3iE Energy-Monitoring Thermostat?. Can I not use the 6iE with this mat?
      by|Aug 16, 2023
      1 Answer
      Answer This Question

      A:  We'll inform our marketing team to make the necessary updates. Absolutely, all our Warmup thermostats are compatible with our mat system.

      by|Aug 22, 2023
        caret
        Q:Are these for outdoor use?
        by|Jun 9, 2023
        1 Answer
        Answer This Question

        A:  These mats are intended for indoor use. The outdoor mat item codes start with WSMM.

        by|Jun 14, 2023
          Showing 1-4 of 21

          Customer Reviews

          4.4 out of 5

          • 4.4 out of 5 reviews
          • 100% recommend this product
          Filter by:
          Showing 1-5 of 5 reviews
          be extremely careful on install
          This mat has been the thorn in my side for 3 months. Our contractor installed this in our bathroom remodel and installed ceramic tile on it. It worked great the first time we started it and then it didn’t. Cold floor. Contractor came back and we called warmup and they sent us a device with a $500 deposit which told us where the break was - so we removed 3 of the newly laid tiles, found the break, fixed it, floor warmed up, relaid the tiles. Cold floor, again. Got the special device again and found a new break, removed more tiles, attempted to fix the wire. No one could fix it. Electician came out and he told us the wires were way too fragile to fix. Soooo we pulled out all the new tile and warmup did replace the heating mat. We bought a “screamer” and placed it on the wire ends during the next install to be sure we knew if a break in wire occured immediately. The contractor was extremely careful and meticulous and this time the floor warmed up and stayed warm. Its been a 3 month saga and an extra $1k in materials ans labor. Buyer beware and be extremely careful and buy a screamer for install.
          by
            • Recommended
            1 found this review helpful
            Sticky tape was on the wrong side but it worked...
            Sticky tape was on the wrong side but it worked out anyway
            by
            • Verified Purchase
            Easy installation -- provides excellent radiant heating throughout my small...
            Easy installation -- provides excellent radiant heating throughout my small bathroom.
            by
            • Verified Purchase
            1 found this review helpful
            Very easy to work with in our bathroom...
            Very easy to work with in our bathroom
            by
            • Verified Purchase
            1 found this review helpful
            Rating provided by a verified purchaser...
            Rating provided by a verified purchaser
            by
            • Verified Purchase
            5 found this review helpful
            Showing 1-5 of 5 reviews
