Model # DET-12-M1-HD

Internet #205556423

Store SKU #594245

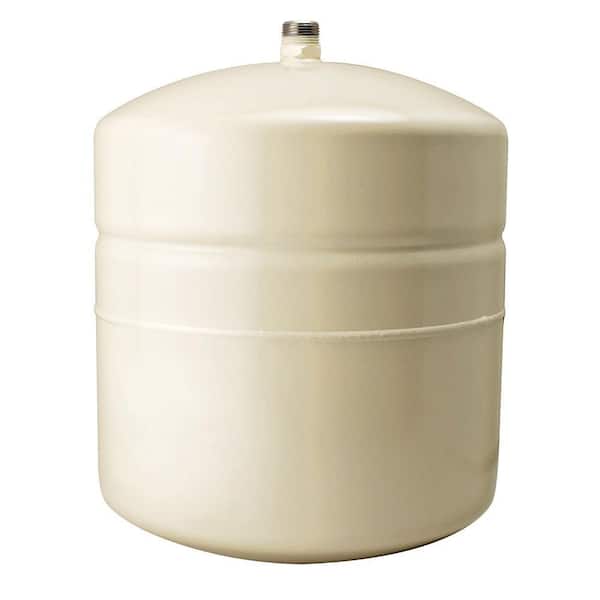

Watts Potable Water Expansion Tank for 50 gal. Water Heaters
0098268051964

Watts

Potable Water Expansion Tank for 50 gal. Water Heaters

$ 57 13

Overview

This expansion tank controls thermal expansion of water in open domestic hot water supply systems. It absorbs the increased volume of water generated by the hot water heating source. Its pre-pressurized steel tank uses an expansion membrane to prevent air/water contact for long system life.
store icon Loading Buying Options...
package icon Loading Buying Options...
Sorry, but we ran into issues loading these options. Please try refreshing.

Frequently Bought Together

Frequently Bought Together

Product Overview

This expansion tank controls thermal expansion of water in open domestic hot water supply systems. It absorbs the increased volume of water generated by the hot water heating source. Its pre-pressurized steel tank uses an expansion membrane to prevent air/water contact for long system life.
  • Controls thermal expansion of water in open domestic hot water supply systems
  • Keeps system pressure below relief setting of relief valve
  • For use with all types of direct-fired water heaters
  • Rugged butyl diaphragm
  • Absorbs the increased volume of water generated
  • Pre-pressurized steel tank
  • Expansion membrane prevents air/water contact
  • Prevention ensures long system life
  • Domestic applications

Product Overview

Model #: DET-12-M1-HD
Sku #: 594245
Internet #: 205556423

This expansion tank controls thermal expansion of water in open domestic hot water supply systems. It absorbs the increased volume of water generated by the hot water heating source. Its pre-pressurized steel tank uses an expansion membrane to prevent air/water contact for long system life.

  • Controls thermal expansion of water in open domestic hot water supply systems
  • Keeps system pressure below relief setting of relief valve
  • For use with all types of direct-fired water heaters
  • Rugged butyl diaphragm
  • Absorbs the increased volume of water generated
  • Pre-pressurized steel tank
  • Expansion membrane prevents air/water contact
  • Prevention ensures long system life
  • Domestic applications

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
15.2
Product Height (in.)
11.2
Product Width (in.)
11.2

Details

Finish Family
Silver Metallic
Material
Steel
Product Type
Expansion Tank
Product Weight (lb.)
9.45lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Watts (the "Company") warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment.

Specifications

Dimensions

Product Depth (in.)
15.2
Product Height (in.)
11.2
Product Width (in.)
11.2

Details

Finish Family
Silver Metallic
Material
Steel
Product Type
Expansion Tank
Product Weight (lb.)
9.45lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Watts (the "Company") warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment.

Questions & Answers

Does the expansion tank go on cold water inlet piping to the hot water heater or on the outlet ho...

Does the expansion tank go on cold water inlet piping to the hot water heater or on the outlet hot water piping?
Asked by: Lou
The expansion tank goes on the cold inlet side between the water shut-off valve and the tank. When water is heated in a closed vessel or system, pressure builds. The expansion tank has a bladder which gets compressed when the water heater pressure increases as a result of the water being heated. When someone opens a faucet, the bladder will push back and equalize to line pressure. There is also a Schrader valve on the expansion tank to adjust the air pressure in the bladder. For proper operation, the air pressure should be adjusted within a couple psi of line pressure.
Answered by: aplumber
Date published: 2019-01-31

why is an expansion tank needed? I know several people whose water heater does not have one.

why is an expansion tank needed? I know several people whose water heater does not have one.
Asked by: bogey
After 9/11 most utilities installed check valves in their water meters to keep bad guys from pumping water into public water systems. These check valves keep pressure from relieving into the water main to you now have to provide your own pressure protection.
Answered by: TonyP
Date published: 2019-02-28

Expansion Tank

I will have to purchase a new hot water heater because the one I have is either a 1996 or 1997 model and has started to leak. The plumber told me I would need to install an expansion tank on the new hot water heater. My neighbor overhead the conversation and said I did not have to install an expansion tank the plumber was trying to take advantage of me. I went to Home Depot to price a hot water heater and spoke with an associate. The associate also said there was no need for an expansion tank. He had never heard of an expansion tank. He is currently working in the plumbing section where the hot water heaters are located and you never heard of an expansion tank???? What is the purpose of an expansion tank? Please explained this to me. Do I really need to have an expansion tank installed on my new hot water heater??? Help me
Asked by: TNGirl
My indirect water heater is 10 years old and leaking. The plumber that built my house did not install the $50 expansion tank. Probably cut the lifespan of the water heater in half. I'm replacing it myself and absolutely installing an exp tank. It acts as a cushion for when the heated water expands and has no place to go due a backflow preventer usually found near the water meter
Answered by: NYElectrician
Date published: 2018-05-19

can this tank be mounted horizontallyi

the mount for my existing tank is horizontal can this tank be mounted horizontally?
Asked by: agartin
Yes. It shows this in the paperwork with tank.
Answered by: Aloha
Date published: 2018-10-30
  • y_2019, m_4, d_20, h_5CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_35
  • loc_, sid_205556423, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING), SortEntry(order=BEST_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=POSITIVE_ANSWER_FEEDBACK_COUNT, direction=DESCENDING), SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_homedepot
  • bvseo_sdk, java_sdk, bvseo-3.1.1
  • CLOUD, getContent, 83ms
  • QUESTIONS, PRODUCT

Customer Reviews

Potable Water Expansion Tank for 50 gal. Water Heaters is rated 4.6 out of 5 by 85.
Rated 1 out of 5 by from I purchased a Watts expansion tank and had it installed a few years ago. The tank was defective ... I purchased a Watts expansion tank and had it installed a few years ago. The tank was defective and began to leak. This leak caused water damage inside my house. I filed a claim with Watts and they denied everything. They wouldn't pay for the damage to my house. Watts will not stand by their products!!!! BUYER BEWARE!!!!
Date published: 2019-02-21
Rated 1 out of 5 by from We have an outstanding issue with this expansion tank. When... We have an outstanding issue with this expansion tank. When a cold water source (toilet flush, sink used) is used, the hot water temperature will dip for 20-25 seconds.
Date published: 2019-02-05
Rated 5 out of 5 by from I had to replace an existing one that failed. ... I had to replace an existing one that failed. It was the size down from this one, so we should be all set for years to come.
Date published: 2019-03-26
Rated 5 out of 5 by from My husband purchased this expansion tank to replace leaky one we had. He was very pleased with th... My husband purchased this expansion tank to replace leaky one we had. He was very pleased with the purchase.
Date published: 2019-04-05
Rated 5 out of 5 by from Easy to install, universal threads on the connector. Easy to install, universal threads on the connector.
Date published: 2019-03-26
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2019-02-20
Rated 4 out of 5 by from 4 Star Review Rating provided by a verified purchaser
Date published: 2019-02-07
Rated 5 out of 5 by from 5 Star Review Rating provided by a verified purchaser
Date published: 2019-03-06
