Model #D309-62

Store SKU #1005236976

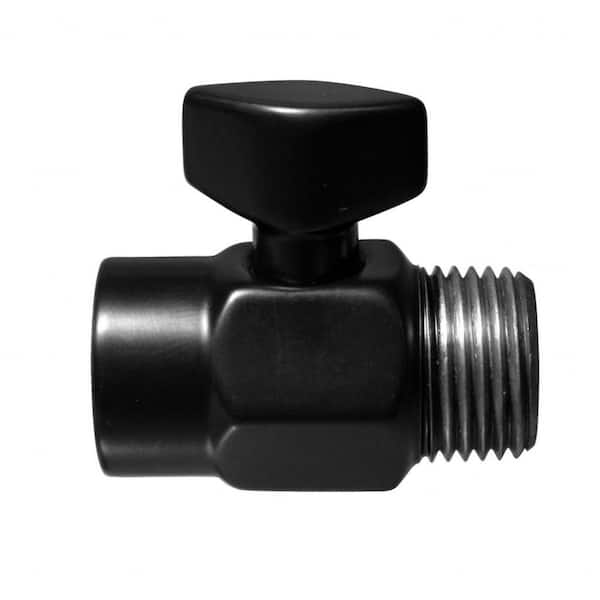

1/2 in. IPS Shower Volume Control Valve in Matte Black

$27.30
Apply Now
Pay $2.30 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Water-saving and safety device
  • Solid brass construction ensures strength and durability
  • Available in a variety of finishes
Store
0 in stock
Text to Me
caret

Product Details

This shower volume control valve from Westbrass is an excellent water-saving and safety device for your bathroom. Simply attach the valve between the shower arm and head and turn the nozzle to reduce or increase the water flow. Whether you want to save water by reducing the flow when you're shampooing, shaving or otherwise occupied or you want to take extra steps to reduce the risk of scalding in uncertain water temperature situations, this item is a perfect fit. Available in a variety of stylish finishes, this item is sure to complement your existing fixtures.
  • Shower arm volume control valve
  • 1/2 in. IPS female from shower arm
  • 1/2 in. IPS to shower head
  • Adjusts flow from drizzle to full on
  • Cannot be used as a positive shut off valve (by law)
  • Drizzle protects from scalding
  • Excellent water saving device
  • Solid brass construction
  • Return Policy
  • California residents

Additional Resources

From the Manufacturer

Installation, Service & Rentals

caret

Specifications

caret

Questions & Answers

3Questions
caret
Q:Does this have threads on both ends or does one end need to be sottered on?
by|Mar 12, 2017
4 Answers
Answer This Question

A:  threading on both sides. it doesn't turn the water completely off. just down to a trickle

by|Feb 28, 2020
    2 found this answer helpful

    A:  Cory, it is an in-line device with male and female threads. It installs between the shower's supply pipe and shower head or hose. No soldering is needed.

    by|Feb 28, 2020
      2 found this answer helpful

      A:  Male NPT threads on one end and female NPT threads on the other.

      by|Apr 1, 2020

        A:  Threads on both ends. Internal threads on one side, external threads on the other.

        by|Feb 28, 2020
        2 found this answer helpful
        caret
        Q:Do you sell this in 1/2" female Ips to 1/2" male ntp?
        by|Mar 21, 2016
        1 Answer
        Answer This Question

        A:  The product is 1/2 FIP to 1/2 male NPT. Also, please note, product does NOT fully shut off water. There will be a small trickle of water in the off position which helps prevent a backflow

        by|Mar 23, 2016
          caret
          Q:Is this going to completely shut off the water?
          by|Feb 14, 2015
          1 Answer
          Answer This Question

          A:  This product will reduce the flow to a trickle; It will not completely shut off.

          by|Feb 17, 2015
            4 found this answer helpful
            Showing 1-3 of 3
            caret

            Customer Reviews

            4.4 out of 5
            (35)
            • 4.4
              out of 35 reviews
            • 81%recommend this product
            Filter by:
            Showing 1-10 of 35 reviews
            High quality product. Operates smoothly. Nice finish. Variable flow rate. Trickle valve in off po...
            High quality product. Operates smoothly. Nice finish. Variable flow rate. Trickle valve in off position.
            by
            • Verified Purchase
            • Recommended
            Rating provided by a verified purchaser...
            Rating provided by a verified purchaser
            by
            • Verified Purchase
            Works as advertised....
            Works as advertised.
            by
            • Verified Purchase
            Solid, very smooth adjusting valve...
            Solid, very smooth adjusting valve
            by
            • Verified Purchase
            Would recommend with the caveat...it restricts the flow significantly, at least on my installation.
            Would recommend with the caveat...it restricts the flow significantly, at least on my installation.
            by
            • Verified Purchase
            • Recommended
            1 found this review helpful
            Works perfectly. Quality product....
            Works perfectly. Quality product.
            by
            • Verified Purchase
            This simple device will pay for itself many times over in water savings. Its premium materials an...
            This simple device will pay for itself many times over in water savings. Its premium materials and construction merit its cost. Installation is done in minutes with a single wrench. Teflon pipe tape is recommended. Regular use becomes a habit by providing consistent water temperature and flow rate exactly as needed during every shower.
            by
            • Verified Purchase
            • Recommended
            Works perfectly! The color was slightly off compared to my oil rubbed showerhead, but close eno...
            Works perfectly! The color was slightly off compared to my oil rubbed showerhead, but close enough. Like it so much I bought another one for my other shower.
            by
            • DIY
            • Verified Purchase
            • Recommended
            Easy control of water flow rate...
            Easy control of water flow rate
            by
            • Verified Purchase
            There is tiny leakage in closed position....
            There is tiny leakage in closed position.
            by
            • Verified Purchase
            Showing 1-10 of 35 reviews
