Internet #311382137

Model #TM9E100C16MP12

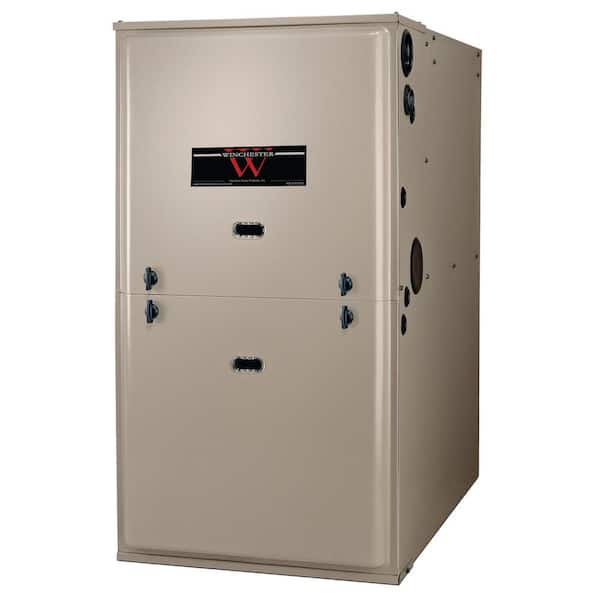

100,000 BTU 95% Efficient Single Stage Multi-Positional Residential Gas Furnace with ECM Blower Motor

Questions & Answers (3)
  • Designed for residential and commercial spaces
  • Installation by a qualified professional recommended
  • Aluminized steel construction ensures durability
  • See More Details

Frequently Bought Together

+
+
Price:
$195948

Product Overview

This is an ideal furnace for new and replacement residential or commercial installations. The 100,000 BTU TM9E series 95% efficiency multi-positional gas furnaces have a 33 in. tall cabinet and are designed for installation in up flow, downflow and horizontal applications. These single stage, high efficiency furnaces are natural gas ready and convertible to propane (LP Gas) with the optional LP 347 conversion kit. Factory shipped for installation in up flow and horizontal applications, they can quickly and easily be converted for downflow applications in the field. Certified for Category IV venting and may be vented either through a side wall or roof applications using approved plastic pipe as allowed by the National Fuel Gas Code. This furnace features an electronic hot surface igniter for increased safety and efficiency, a 5-speed maintenance free high efficiency ECM blower motor that never needs lubrication and self diagnostic control module to monitor safe operation. The primary heat exchanger is constructed of tubular aluminized steel and has a stainless steel secondary heat exchanger. Factory assembled, wired and tested to assure dependable installation start-up. NOTE: Requires 1/2 in. input to gas valve, dedicated circuit breaker and 120-Volt wiring with proper polarity and ground. 5 year limited parts warranty; lifetime limited heat exchanger warranty, 10 year heat exchanger warranty on commercial applications. Dimensions: 33 in. H x 21 in. W x 29.5 in. D.
  • California residents
  • Natural gas ready and may be converted to LP gas with optional conversions kit
  • Multi-positional design with compact cabinet height of 33 in. for flexible installation
  • High tech tubular aluminized primary and stainless steel secondary heat exchangers
  • 5-speed, direct drive standard ECM style high efficiency DC blower motor; high-efficiency blower motor lowers electrical power usage and improves A/C SEER ratings
  • Electronic hot surface ignition saves fuel cost with increased dependability and reliability
  • Built-in, high level self-diagnostics with fault code displays standard on integrated control module for reliable operation
  • Furnace is Category IV, National Fuel Gas Code and may be vented either through side wall or roof applications using approved plastic combustion air and vent piping; may be installed as either 2-pipe(sealed combustion) or single-pipe vent (using indoor combustion air)
  • Equipment should be sized, selected and installed by a qualified professional to ensure proper installation, safe operation and adherence to federal, state and local codes and for valid warranty; see installation guide for more details
  • Not certified for mobile home use
  • Does not meet California's South Coast Air Quality Management district low NOx requirements; not available for sale in CA
  • Click here for more information on Electronic Recycling Programs

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Compare Similar Forced Air Furnaces

80,000 BTU 95% Efficient Single Stage Multi-Positional Residential Gas Furnace with ECM Blower Motor
current product
100,000 BTU 95% Efficient Single Stage Multi-Positional Residential Gas Furnace with ECM Blower Motor
88,000 BTU 96% 2-Stage Variable Speed Upflow and Horizontal Gas Furnace120,000 BTU 96% 2-Stage Variable Speed Multi-Positional Gas Furnace
BrandWinchesterWinchesterROYALTONWinchester
Name80,000 BTU 95% Efficient Single Stage Multi-Positional Residential Gas Furnace with ECM Blower Motor100,000 BTU 95% Efficient Single Stage Multi-Positional Residential Gas Furnace with ECM Blower Motor88,000 BTU 96% 2-Stage Variable Speed Upflow and Horizontal Gas Furnace120,000 BTU 96% 2-Stage Variable Speed Multi-Positional Gas Furnace
Price
$175800
$195948
$275201
$315756
Ratings
(3)
(0)
(0)
(0)
Power/Fuel TypeNatural GasNatural GasNatural GasNatural Gas
Heat rating (BTU/hour)8000010000084000115000
Annual Fuel Utilization Efficiency (AFUE) (%)95959696
Heating Technology TypeForced AirForced AirForced AirForced Air
View ProductView ProductView ProductView Product

Specifications

Dimensions

Product Depth (in.)
29.5 in
Product Height (in.)
33 in
Product Width (in.)
21 in
Vent diameter (in.)
2

Details

Annual Fuel Utilization Efficiency (AFUE) (%)
95
Energy Consumption (kWh/year)
676
Fuel Gauge
No
Gas or Electric
Gas
Heat Output (BTU/hour)
95000
Heat rating (BTU/hour)
100000
Heating Product Type
Forced Air Furnace
Heating Technology Type
Forced Air
Motor Type
5 speed ECM DC blower motor
Number of Blower Speeds
5
Power/Fuel Type
Natural Gas
Product Weight (lb.)
142 lb
Returnable
180-Day

Warranty / Certifications

Certifications and Listings
AHRI Certified,CSA Certified,Energy Star,ISO Certified
Manufacturer Warranty
A 20-year limited warranty on heat exchangers in residential applications.A 10-year warranty on the heat exchanger in commercial applications. Standard 5-year limited Parts warranty. Extended lifetime heat exchanger and 10-year limited parts warranty for residential applications when product is registered online within 90 days of purchase for replacement or closing for new home construction.

Questions & Answers

3Questions3Answers

Installation cost

Asked by Bolton December 9, 2020
1
Answer

The equipment offered in this program is separate from the installation so that you can arrange for installation by a qualified local technician as we, the supplier of the equipment, do not offer an installation program. Please know that most installers prefer to have a look at the application prior to giving an estimate/quote as each installation is unique.

Installation cost?

Asked by Bolton December 9, 2020
1
Answer

The equipment offered in this program is separate from the installation so that you can arrange for installation by a qualified local technician as we, the supplier of the equipment, do not offer an installation program. Please know that most installers prefer to have a look at the application prior to giving an estimate/quote as each installation is unique.

Hello, I would like to replace the gas furnace. How much does it cost this one with installation. The hight ~40 inc

Asked by Maisa October 10, 2020
1
Answer

We offer the equipment in our program separate from the installation so that you can arrange that on your own with a local, qualified installer. Give us a call at 800-879-0123 to discuss your application, sq. ft., geographic location, and your current system so that we can assist in sizing and proper equipment selection.
