Internet #312151996

Model #ME20DN21-20

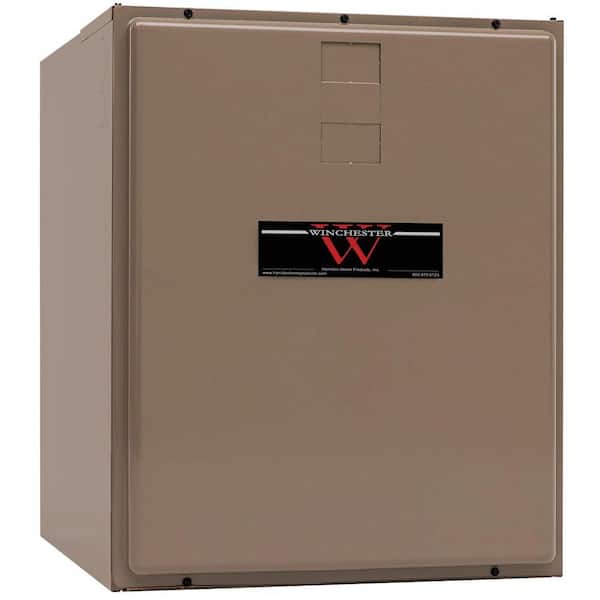

65530 BTU 5 -Ton Residential Forced-Air Electric Furnace with ECM Blower Motor

Questions & Answers (10)
  • Designed for use with both electric heating and cooling systems
  • Compact profile allows installation in multiple directions
  • Ideal for new and replacement installation applications
  • See More Details

Frequently Bought Together

+
+
Price:
$161674

Product Overview

The ME Series residential electric forced-air furnaces are the perfect choice for new and replacement installations. The compact, multi-positional, modular design allows the unit to be installed in up flow, down flow, and horizontal applications and greatly simplifies attic installations. The furnace features an energy efficient maintenance free 5-speed adjustable ECM blower motor, and is A/C and heat pump system ready. The newly designed cabinet has flush sides, is sealed and insulated for quiet operation and air flow efficiency. The heat kits are easy to install and have heavy gauge coiled nickel-chromium wire heating elements. Units are factory assembled, wired, and tested to assure safe, dependable, and economic installation and operation. Requires dedicated double-pole circuit breaker(s), appropriate gauge 240-Volt wiring with proper polarity and ground.
  • Energy efficient ECM 5-speed blower motor is permanently lubricated for maintenance-free operation, and provides higher SEER and HSPF ratings on A/C and heat pump systems
  • Designed for use with both air conditioning and heat pump systems; match the width of the evaporator coil to the width of the air handler

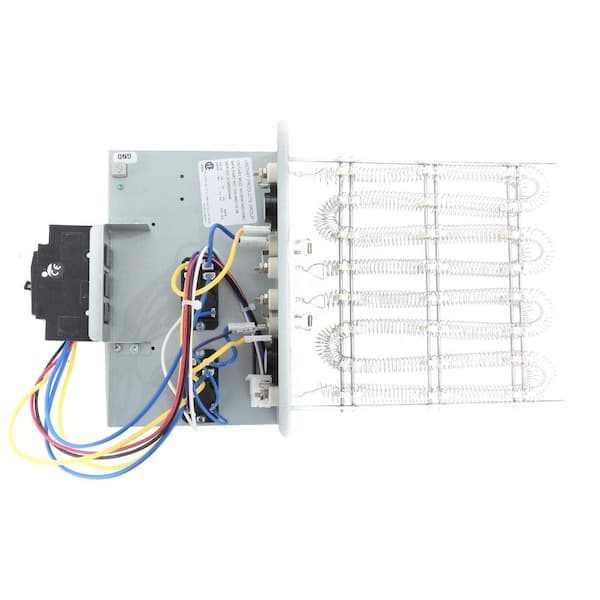

  • 20 kW heat kit has two 60 Amp double-pole circuit breakers
  • 5 year standard limited parts warranty - 10 year limited parts warranty with online registration within 90 days of installation
  • Equipment should be sized, selected, and installed by a qualified professional to ensure proper installation, safe operation, adherence to federal, state, and local codes, and for valid warranty; see installation guide for more details
  • Click here for more information on Electronic Recycling Programs
  • California residents

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Product Depth (in.)
21.5
Product Height (in.)
22.5
Product Width (in.)
24.5
Vent diameter (in.)
0

Details

Energy Consumption (kWh/year)
0
Fuel Gauge
No
Gas or Electric
Electric
Heat Output (BTU/hour)
65530
Heat rating (BTU/hour)
65530
Heating Product Type
Forced Air Furnace
Heating Technology Type
Forced Air
Motor Type
ECM blower motor with adjustable speeds
Number of Blower Speeds
5
Power/Fuel Type
Electric
Product Weight (lb.)
74 lb
Returnable
180-Day

Warranty / Certifications

Certifications and Listings
CSA Certified
Manufacturer Warranty
10-year limited parts warranty when registered online within 90 days of installation

Questions & Answers

10Questions10Answers

Will this unit work with a multiple-zoned a/c? or would multiple units be required?

Asked by Rob March 4, 2021
1
Answer

Please give us a call at 800-879-0123 so that we can get additional information about your application. Your application sounds a little more complex. Hope to hear from you soon, Rob.

is the unit complete only ductwork remaining?

Asked by Herm February 13, 2021
1
Answer

This is a residental Forced-Air Electric Furnace, and it does require a new, or existing, properly sized ductwork system to operate properly. If you have additional questions, please contact us at 800-879-0123.

My house is 3100 sqr ft is there an eletric furnace that would work for my house and can a ac work for that size also using the original ducting that.

Asked by Bert January 25, 2021
1
Answer

You have an application that is beyond what we typically receive questions about. It would be best if someone local has a look at your current system and ductwork to determine sizing of the equipment and whether the duct system is adequate. Once you have the equipment recommendation from that company/contractor, give us a call with their equipment models and we will match it to our brand of equipment. We can be reached at 800-879-0123.

what is the size on inch the dimensions please.

Asked by carlosamador January 24, 2021
1
Answer

22.5 in. H x 24.5 in. W x 21.5 in. D. are the dimensions of the air handler. The electric heat kit is designed to be installed into the air handler cabinet in the field upon installation. Upflow applications will require a field supplied return air base for side cold air returns.

is this unit good to be used with heating and air for a completely new area (addition 1300 sq ft).

Asked by tony December 24, 2020
1
Answer

This BTU size seems to be too large for that space. Give us a call at 800-879-0123 to discuss the application and to properly size your equipment.

can this heat a three story home

Asked by Aisha December 19, 2020
1
Answer

Aisha, please give us a call at 800-879-0123 with the geographic location of your home, the sq. ft., and ceiling height information. Also, if you have any model numbers from the existing equipment, please have that available too. We will use all of those things to determine the best equipment that meets your application. Hope to hear from you soon!

What is the total wattage consumed? What size breaker is needed?

Asked by Luke September 5, 2020
1
Answer

At 230 V, the unit is rated at 19.2 kW. The heat kit has 2- 60 amp double-pole breakers that must be wired to the same size breakers in your breaker panel. Hope this helps.

Do you have to buy a heat kit separate to make this work?

Asked by Nat June 21, 2020
1
Answer

The heat kit is included with the air handler to make up the electric furnace. The kit is separate, but easily installs into the air handler. Please feel free to give us a call at 800-879-0123 should you have any additional questions.

Will this unit heat up a four bedroom house

Asked by Kaykay May 12, 2020
1
Answer

We can assist with sizing, but need additional information to be able to help guide you with proper selection. Please give us a call at 800-879-0123 so we can get more information about your location, application, and sq. ft. Hope to hear from you soon!

How do you add AC to this unit?

Asked by Ted January 7, 2020
1
Answer

Hello, You may access the installation guide on the Home Depot.com item web page listed on the lower right hand side. The info and Guides Section
