Model #TB-WINGIT-RES

Store SKU #147567

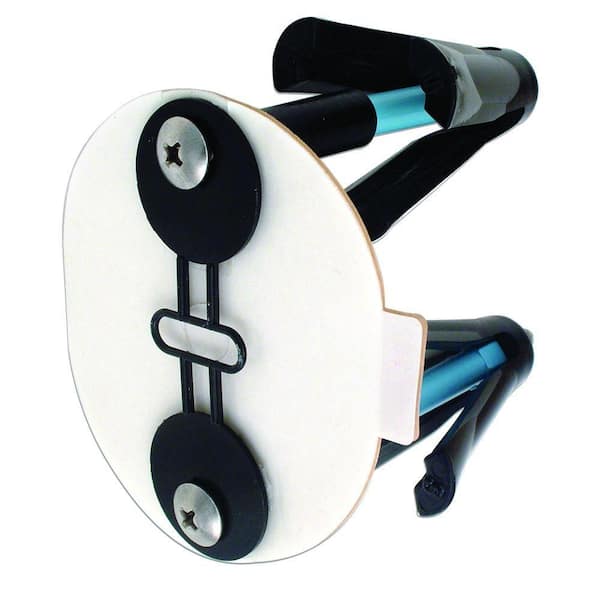

Stud-Less Install Grab Bar Fastener

  • Rated for up to 600 lbs. in tile and drywall
  • No blocking or wall studs needed
  • Fire retardant and waterproof
  • See More Details

Product Overview

Rated for up to 600 lbs. in tile and drywall, the WingIts Studless Install Grab Bar Fastener incorporates ultra-strong fastener technology to allow for quick installation of WingIts and WingIts compatible grab bars. With no blocking or wall studs required, this fastener is fire retardant and installs completely waterproof in both new and existing construction, used extensively in commercial, institutional and residential grab bar installations. When installing into ceramic wall tile, plaster or marble, use the Apache200 drill technology for quick, precise holes (3/4 in. holes required).
  • Exceeds all building codes and ADA guidelines
  • No studs required for installation
  • Self-waterproofing with no caulk needed
  • Installs in minutes and lasts a lifetime
  • Designed for 2 in. x 3 in. or larger hollow walls and wall substrates from 1/4 in. to 1.3 in. thick
  • Backed by limited lifetime warranty
  • 2 fasteners per package
  • Learn more about concrete anchors here.

Info & Guides

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

Specifications

Dimensions

Anchor Diameter (in.)
3/4"
Anchor Length (in.)
2.5
Fastener Length (in.)
3.5
Required Drill Hole Size (in.)
.75

Details

Color Family
Assorted Colors
Fastener Head Style
Pan
Fastener Plating
None
Fastener Type
Concrete Screws
Fastener/Connector Material
Plastic
Fastening Base Material
Cinder Block,Drywall,Plaster,Wood
Features
No Additional Features
Finish
Mixed
Included
No Additional Items Included
Interior/Exterior
Interior
Maximum Weight Capacity (lb.)
600
Measurement Standard
Metric
Package Quantity
2
Product Weight (lb.)
.15 lb
Returnable
90-Day

Warranty / Certifications

Manufacturer Warranty
Limited Lifetime Warranty

Questions & Answers

14Questions40Answers

How is the 600lb rating established. Perhaps WingIts can provide an answer.

Asked by firemanbob February 5, 2021
1
Answer

It is established by spreading the pressure around the sheetrock in the area. You have six prongs between the two bolts. As the bolts are tightened the prongs spread on the backside of the sheetrock. This makes the sheetrock more stable. This allows the 600lb rating.

How is the 600 lb rating measured? I am not so sure 1/2" drywall could stand up to a 600 lb man w...

Asked by Laserray October 16, 2020
1
Answer

Hi there, you will need to contact the manufacturer to inquire about the specifics of their product testing. They can be reached at 877.894.6448 / 732.869.4466 Monday - Friday. We appreciate your business and look forward to serving you in the future. Thank you for shopping Home Depot!

I'm not sure if behind acrylic bath enclosure is plaster or drywall. Would this grab plaster?

Asked by JS1971 June 8, 2020
1
Answer

Yes as they expand once inserted

Can these anchors be used on a fiberglass tub surround?

Asked by Jayr March 19, 2020
2
Answers

It looks as though you can. I am holding an instruction page from inside a wingits package and it says "For 1/4" acrylic/fiberglass tub surrounds or plaster walls use 2 GBW40's" but I believe I would be reluctant.

How many fasteners are in a package?

Asked by jan October 23, 2019
10
Answers

How many fasteners in a package?

Can these be used on tiled walls?

Asked by LA October 16, 2019
5
Answers

I used them on tiled walls where I was not hitting studs. Get 3/4 inch drill bit . Makes this job so easy. I put up 3 grab bars in an hour.

Can this be used in a fiberglass shower surround? When I push on the walls, there is a fair amou...

Asked by InquiringMind July 12, 2019
5
Answers

I would say no because it would pull the fiberglass to the wall securely. Maybe cracking it

Is this fastener universally compatible with all brands of grab bars? I bought a Delta 16 inch fi...

Asked by Rand July 10, 2019
5
Answers

Yes

Can this be used in mobile homes?

Asked by Mz June 16, 2019
5
Answers

If you can find the stud, then yes.

Are the two holes in the template here aligned with the mounting holes of the Glacier Bay "Concea...

Asked by johnm November 30, 2018
5
Answers

Yes, that’s the brand that I used them with. Just make sure that you follow the instructions, otherwise some of the fastener may be exposed and the snap cover won’t cover the whole thing.

Stud-Less Install Grab Bar Fastener - page 2

Customer Reviews

  • 4.2
    out of 170 reviews
  • 81% recommend this product
Filter by:
Showing 1-10 of 170 reviews
When I received the Glacier Bay 42 inch grab bar, I realized that to install it in a shower I'd n...
When I received the Glacier Bay 42 inch grab bar, I realized that to install it in a shower I'd need a way to find studs behind tile AND drywall. I also realized that the length of the bar meant it would have to be mounted on an angle to mount to studs. It was easier, and neater to find out where the studs were (I have a deep scanning stud finder), and mount it where the studs weren't. Home Depot sells these Wingit grab bar fasteners (two per package) that are listed as able to support 600 lbs. Now all I needed was a quality masonary drill bit to drill through tile, and a mortar base beneath. The Apache 200 3/4" bit was just right to use with these fasteners, which are fairly substantial. The anchors come with a foam gasket, sticky on both sides, that is fairly good at sealing the grab bar mounting flange from leaking water. The gasket also acts as a guide for the drill bit. I followed directions, and the mounting went very well. Just make sure you have a level handy to make sure the bar will end up level.
by KenH
5 people found this helpful
Best hollow wall anchors available
These anchors are the first I have ever found that can deliver exactly what they promise! Being retired from the building trades I have used most every hollow wall anchor on the market. Most can install clocks, pictures, shelves even earthquake anchors. These are the first anchors I have ever found that can actually anchor ADA grab bars. All you need to do is follow the directions for the anchors. I’ve used these now with 5/8 standard and green board drywall, tile with both thin set on drywall and tile with mastic on concrete backer board. All of these installations gave excellent results. Remember to get there Apache 3/4 drill for tile installations. These are my new earthquake anchor for TVs and heavy cabinets along with ADA grab bars!
by RLatham
24 people found this helpful
it makes me put 1 star cuz I would give NONE. The worst, hardest product to install I have ever t...
it makes me put 1 star cuz I would give NONE. The worst, hardest product to install I have ever tried to use... ended up just caving in wall and sinking in ... TERRIBLE!
by WingItsuck
Had never used WingIts before. The first one installed without a problem. When installing the s...
Had never used WingIts before. The first one installed without a problem. When installing the second one, the plastic toggle part cracked while pressing the WingIt through the hole I had drilled. The fastener appears to work well otherwise.
by BJ
I love these things. after using the special drill they...
I love these things. after using the special drill they are easy to install and they support a lot of weight.
by steve
Worked as expected.
Worked as expected.
by Stevo
Work as advertised....
Work as advertised.
by HomeDepotCustomer
Did not need to use, keeping for future use....
Did not need to use, keeping for future use.
by JC
I am a professional and install grab bars often. I have yet to install a grab bar with two holes ...
I am a professional and install grab bars often. I have yet to install a grab bar with two holes top and bottom so the sticker template does not work for most grab bars. Because the screws are off-centered on the product, it makes it challenging to determine the exact location to drill in every installation I've done. They are strong anchors though but not user friendly and should be labeled on the package, "for use with Moen(?) brand grab bars." or whatever has screw holes top and bottom. They do sell another type that has centered screw holes and those are easier to locate where to drill but the plastic circle needs to be trimmed with a knife in order to hide it behind the grab bar plates.
by W443
1 person found this helpful
I bought these as recommended by a family member for the project I had going on at home. Worked g...
I bought these as recommended by a family member for the project I had going on at home. Worked great. Highly recommend using.
by Junior
Showing 1-10 of 170 reviews
