#1 Home Improvement Retailer

Internet # 206922063

Model # 697-54

54 in. 700 CFM Ducted Vent Wall Mount Range Hood in Stainless Steel

$1359.96
$1509.95
Save $149.99 (10%)
Apply Now
$undefined.00 /mo† suggested payments with months† financingApply Now
  • External venting with fixed duct
  • 700 CFM 4-speed motor with industry-leading lifetime warranty
  • Easy cleaning with dishwasher-safe stainless steel filters
  • View More Details
icon
Free & Easy Returns In Store or Online
Return this item within 2 days of purchase. Read Return Policy
Product Details

About This Product

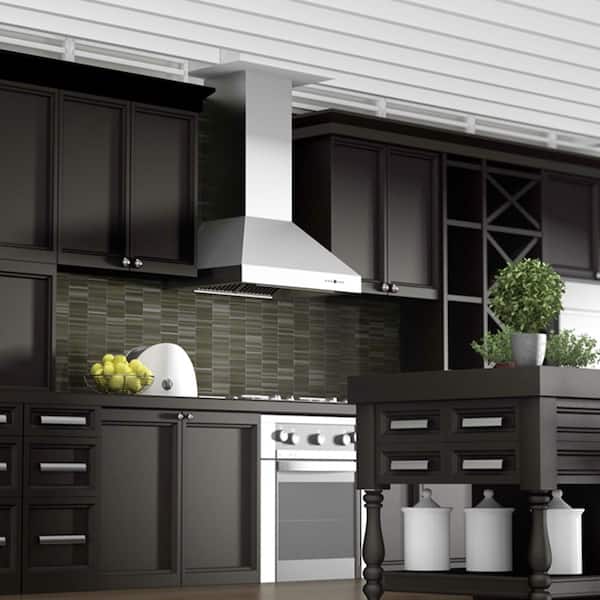

The ZLINE 697-54 is a 54 in. professional wall mount stainless steel range hood with a modern design and built-to-last quality, making it a great addition to any kitchen. This hood's high-performance, 700 CFM 4-speed motor will provide all the power you need to quietly and efficiently ventilate your stove while cooking. With its classic 430 grade stainless steel, this range hood contains rust, temperature, and corrosion-resistant properties to ensure a durable vent hood that will last for years to come. Enjoy modern features, including built-in LED lighting for an illuminated culinary experience and dishwasher-safe stainless steel baffle filters for easy clean-up. This wall mount range hood has a ducted vent with easy, simple installation. Experience Attainable Luxury in the heart of your home, with a ZLINE range hood. ZLINE Kitchen and Bath stands by all products with its manufacturer parts warranty. The 697-54 ships next business day when in stock.

Highlights

  • Easy-to-use push button controls lets you easily control fan speed and lighting
  • 4-speed fan control (280/420/560/700 CFM) lets you choose the appropriate air flow for your cooking situation
  • 700 CFM air flow (highest speed setting) efficiently moves large amounts of air away from your cooking area
  • Fixed vent with ductwork that easily connects to the top of the range hood for external venting
  • Dishwasher-safe stainless steel baffle filters
  • LED lighting illuminates the cooktop beneath the hood
  • Designed to fit standard (circular) ductwork for simple installation
  • 3 year parts warranty, life-time motor warranty
  • 110V/60HZ
  • Click here for more information on Electronic Recycling Programs
  • Return Policy

Product Information

Internet # 206922063

Model # 697-54

Specifications

Dimensions: H 16.4 in, W 54.13 in, D 27.5 in

Dimensions

Duct Length (in)

36

Duct Width (in.)

8

Product Depth (in.)

27.5 in

Product Height (in.)

16.4 in

Product Width (in.)

54.13 in

Range Hood Size (Width)

54 in.

Details

Amperage (A)

5 A

Appliance Series

Not Applicable

Appliance Type

Range Hood

Color/Finish

Brushed 430 Stainless Steel

Color/Finish Family

Stainless Steel

Commercial/Residential

Residential

Control Type

Push button

Duct Shape

Rectangular or Round

Exhaust Vent Location

Top

Features

Automatic Delay Shut-off for Light, Dishwasher Safe Metal Mesh Filter, Lighted, Removable Grease Filter(s)

Hardware Color/Finish

Stainless Steel

Hardware Color/Finish Family

Stainless Steel

Included

Bulb(s), Exhaust Vent, Fan, Filter(s), Hardware, Installation Kit, Power Cord

Indoor/Outdoor

Indoor

Maximum Air Flow Capacity (CFM)

700 CFM

Minimum Air Flow Capacity (CFM)

280

Mounting Type

Wall Mount

Noise Level (Sones)

Standard (High)

Returnable

2-Day

Vent Install Type

Ducted

Vent Material

Metal

Voltage (V)

110 V

Wattage (W)

550 W

Warranty / Certifications

Certifications and Listings

ETL Listed

Manufacturer Warranty

3 Year Parts Warranty

Questions & Answers

45Questions
caret
Q:can this be used with a 7'2' ceiling?
by|May 16, 2023
1 Answer
Answer This Question

A:  Hello Jenn! Thank you for reaching out to us. This range hood is compatible with 8.2 ft-and 9.95 ft ceilings. You may purchase a short kit for your shorter ceiling, and the model number is, SK-455/476/477/667/697. Please reach out to us if you have any further questions that we can help answer!

by|May 17, 2023
    caret
    Q:What is this unit able to resist cooking surface temperatures up to?
    by|Apr 12, 2023
    1 Answer
    Answer This Question

    A:  Hello! Thank you for reaching out to us. This range hood will take on any cooking surface temperature, however, please ensure that your range hood is installed at least 30-36 inches above your cooking surface. If you use flames or flambe your food often, we recommend installation at the 36 inches above your cooking surface. Please do not hesitate to reach out to us if you have any further questions that we can help answer!

    by|Apr 12, 2023
      caret
      Q:Can you mount the hood 39" above the range for 9' celing?
      by|Feb 28, 2023
      1 Answer
      Answer This Question

      A:  Hello! Thank you for reaching out to us. We recommend installing all range hoods between 30-36 inches above the cooking surface for optimal performance. This range hood is compatible with 8-9.95 ft ceilings! With the telescoping chimney, this will fit your 9ft ceiling perfectly. Please reach out to us for any further questions that we can help answer!

      by|Mar 1, 2023
        caret
        Q:is it 30" width Model - 700 CFM
        by|Feb 24, 2023
        1 Answer
        Answer This Question

        A:  Hello! Thank you for reaching out to us. Yes, this model is 30 inches. Please note, this model is a remote blower model and the motor will need to be installed in an attic or crawl space. If you would like to purchase this model with the motor installed in the base of the range hood, the model number is 697-30. Please reach out to us if you have any further questions that we can help answer!

        by|Feb 27, 2023
          Showing 1-4 of 45

          Customer Reviews

          4.2 out of 5

          • 4.2 out of 53 reviews
          • 83% recommend this product
          Filter by:
          Showing 1-10 of 53 reviews
          Really disappointed and didn’t meet expectations. The chimney cover was bent in the box when shipped, the installation instructions were very general and of no help as well as the linked videos. It was not clear that the included chimney cover would not work with 8ft ceilings and you would need to either cut the chimney or buy an ft ceiling kit for another $119. On the bright side, I think the hood looks good but I would not buy again or recommend the manufacturer.
          by
          Response from ZLine Customer ServiceDec 22, 2023
          Hello! Thank you for taking the time to reach out to us. We are sorry to hear that this has been your experience with your ZLINE products. We are always looking for ways to improve our products, and we appreciate you taking the time to leave this feedback. We would like to hear more about your personal experience and the chance to make this right. Please reach out to us at zlinekitchen.com/contact and our team can assist. ZLineCustomerService
          • Verified Purchase
          Beautiful!
          This vent is a beast! Between 2 experienced men it took way over 8 hours to install. The inclination in wall and attic space didn’t help. But after install it’s beautiful. Works as expected. Very fast shipping.
          by
          Response from Customer ServiceApr 24, 2023
          Hello Marts, Thank you for taking the time to leave a 5-star review, we appreciate the feedback. We are happy to know that you are enjoying your new beautiful Range Hood! If you have any questions or concerns please don't hesitate to contact ZLINE customer service at zlinekitchen.com/contact. Have a wonderful day!
          • Verified Purchase
          • Recommended
          Looks great, doesn't work at all
          We have the zline range and hood. The stove/oven are great, but the hood can barely pull in air and is extremely loud. If you're planning on actually cooking that creates smoke, buy a different range. It looks great though!
          by
          Response from ZLine Customer ServiceNov 30, 2022
          Hi Greg, thank you for your feedback. We are happy to hear you are enjoying the range. If you have not done so already and would like to troubleshoot the issue with your range hood, please reach out to our Customer Experience Team at zlinekitchen.com/contact and we would be more than happy to help you. Thank you! ZLineCustomerService
            1 found this review helpful
            Looks Restaurant Style powerful suction
            This hood is for serious cooking at the same time less noise compare to others in market. More over the size makes the kitchen looks big and professional. Most in the market are 24 inches and doesn't cover the entire range. This one does. Glad we choose the right hood. Hoods are installed only once where as ranges can be changed as many times. The shipping came in a crate and well packed. Kudos to Packing team.
            by
              • Recommended
              DIY ZLINE Ducted Wall Mount Range Hood
              After shopping and reviewing products for many weeks I settled on the ZLINE Outdoor Range Hood. It appeared to have the best quality materials and components at an affordable price. I purchased the ZLINE to exhaust smoke from my built-in 32in Paradise Grill. When our home was built I had the builder stub out with a through the roof 8in duct. DIY installation took a couple of days but I was very pleased with the results. The ZLINE provided ducting, after a little modification to shorten it, connected perfectly with the existing ducting. I've used the Range Hood venting several times and it seems to pull the smoke off adequately. The vent fans are a little noisy at the highest speed but it's better than having the cooking area full of smoke. The four star rating is because of the noise. I would recommend this vent hood.
              by
              • Verified Purchase
              • Recommended
              looks professional
              love the stainless baffle filters...dishwasher safe!
              by
                • Recommended
                Great Hood! Quiet and really sucks!
                Purchased the hood with the remote blower with dual motors. Well worth the investment since we purchased a Wolf range top that required more 1200 cfm hood. Vented out through the roof with blower in cubby hole above kitchen. Looks great and keeps the cooking odors out of the rest of the house. Pretty easy to install if you plan it out before hand.
                by
                  • Recommended
                  Quiet and efficient air handler
                  We purchased the dual motor remote option to minimize noise at the hood yet still attain maximum CFM. I'm an audiologist and can carry on a conversation with anyone in the room, even at the 1200 CFM setting, and hear perfectly. The removable grills are easily cleaned in the dishwasher. The remote motor installation was a little tricky but my husband is an engineer and handled it well. Having the remote motor made hanging the wall hood very light and easy to install. Overall, we are very pleased with the product living up to the specs.
                  by
                    • Recommended
                    Works perfectly for my outdoor kitchen area!
                    bought and install, a great unit. Fans provide a lot of suction and remove a great deal of heat from the grill area. Lights and speed controls are very user friendly, installation was a snap, and the charcoal filters installed very easily. Overall, a very nice product.
                    by
                      Awesome silent and powerful
                      I bought this hood because I was tired of the food critic (smoke alarm) going off one minute after I started cooking. Now my house is cleaner and no residual cooking smell and so quiet, even at top fan speed. I rarely need the fan at full power because the hood is so efficient at drawing out the smoke and grease. After you hit the off button the fan continues sucking out the air for 3 minutes and then automatically turns off. The lights are powerful enough to see what you are cooking even if the kitchen lights are off. The design is beautiful I have received many complements. I loved that you can get an optional crown molding to have a finished look.. I had this remote 1200 CFM hood professionally installed and the installers told me it was an easy install and very light since the motor Is not inside the actual fan but located in my attic. I have a very small kitchen and the 36” hood looks fabulous in it. I looked all over at different brands and am so happy with my choice . It was one of the few brands that offers a truly powerful professional hood at a great price Many options and fabulous looks.
                      by
                        • Recommended
                        Showing 1-10 of 53 reviews
