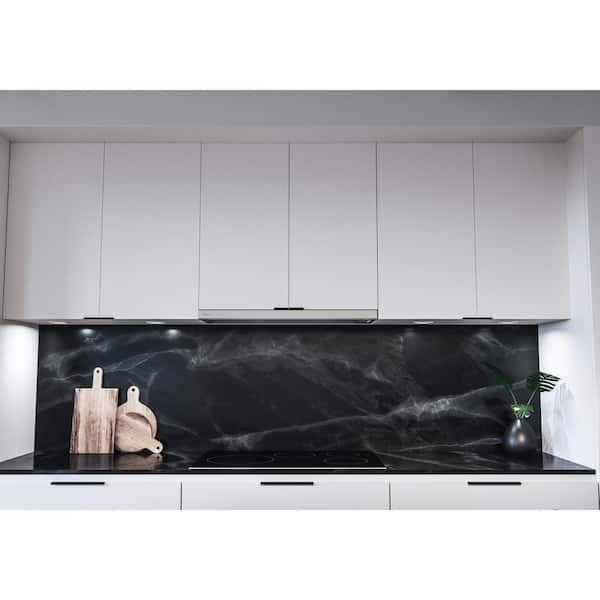

Pisa 36 in. 500 CFM Convertible Under Cabinet Range Hood in Stainless Steel with LumiLight LED Lighting

Apply Now
Pay $739.00 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Mechanical Slide Controls
  • Low-profile body for a minimalist appearance
  • LumiLights are built to last with a lifetime of 25,000+ hours
  • View More Details
0 in stock

Product Details

About This Product

Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Adorned with lumilight LED lighting and powered by the strength of a 500 CFM or 290 CFM blower, Pisa's low-profile body delivers stunning design and quality performance. Its retractable visor helps with the capture of air and puts control at your fingertips. Pisa is ideal for kitchens that require a more discreet, sophisticated look.


  • LumiLight LED lights are eco-friendly, built to last and have a lifetime of more than 25,000 hours while requiring less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution
  • 3 Speed Levels
  • Mechanical Slide Controls
  • Dual-Level Lighting
  • Aluminum Mesh Filters
  • Recirculating Option (ZRC-00PI)
  • Low Profile Body
  • Click here for more information on Electronic Recycling Programs
  • California residents
     see Prop 65 WARNINGS

Product Information

Internet # 316416751

Model # ZPI-E36BG

Store SKU # 1006570020


Dimensions: H 11.25 in, W 35.875 in, D 11.125 in


Product Depth (in.)

11.125 in

Product Height (in.)

11.25 in

Product Width (in.)

35.875 in

Range Hood Size (Width)

36 in.


Amperage (A)

3 A

Appliance Type

Range Hood


Stainless Steel

Color/Finish Family

Stainless Steel



Control Type


Exhaust Vent Location

Back, Top


Dishwasher Safe Metal Mesh Filter, Removable Grease Filter(s)


No Additional Items Included



Light Type


Maximum Air Flow Capacity (CFM)

500 CFM

Minimum Air Flow Capacity (CFM)


Mounting Type

Under Cabinet

Noise Level (Sones)

Standard (High)

Number of Fan Speeds


Number of Light Bulbs


Pack Size


Product Weight (lb.)

36 lb



Vent Install Type


Vent Material


Voltage (V)

120 V

Wattage (W)

360 W

Warranty / Certifications

Certifications and Listings

UL Listed

Manufacturer Warranty

3 Year Warranty Part / 1 Year Warranty Labor

Questions & Answers

Q:I have a cabinet above my ducted vent cooktop, and want to change to this cabinet mount hood. Can I keep existing cabinet, or does this require a new custom cabinet?
by|Mar 11, 2024
1 Answer
Answer This Question

A:  Hello, The ZPI can be mounted under the existing cabinet. Please refer to pages 8-20 of the owner's manual for mounting instructions: http://docs.zephyronline.com/docs/manuals/pisab_manual.pdf. Thank you for your inquiry! - Zephyr

by|Mar 13, 2024
    Q:How do I decide whether to buy the 290 CFM or 500 CFM unit? We are replacing a range hood that is styled like the Zephyr Pisa 36 .
    by|Dec 5, 2023
    1 Answer
    Answer This Question

    A:  Hello, Use The Following Formulas To Determine The Recommended Range Hood CFM These formulas are a guide with the assumption that all burners are being used on high at the same time. Your cooking style and habits may also impact the CFM you need. Gas Cooking Appliance: Divide the total BTUs by 100 60,000 BTU’s ÷ 100 = 600 CFM Electric Cooking Appliance: Multiple the linear feet of the cooking surface x 150 (36” cooking surface) 3 x 150 = 450 CFM If you do not know which cooking appliance you will have, you can use the size of your kitchen as a guide when determining the CFM you need. A range hood should be able to exchange the air in the kitchen at least 15 times per hour, or every 4 minutes. For example, if your kitchen is 15’ wide x 15’ long with a 9’ ceiling, it would contain 2,025 cubic feet of space. 15x15x9 = 2025 To find the CFM needed for your kitchen size, divide the cubic feet of the room by 4. 2,025 Cubic Feet ÷ 4 = 506 CFM Thank you for your inquiry! -Zephyr

    by|Dec 6, 2023
      Q:Can lights be used when unit is pushed in flush and fan is off?
      by|Nov 16, 2023
      1 Answer
      Answer This Question

      A:  Hello, The blower and lights will automatically shut off when the glass is closed and turn back on when the glass is opened. Blower and lights will not operate when the glass is closed. Thank you for your inquiry! - Zephyr

      by|Nov 17, 2023
        Q:may i use this as a ductless, recirculating vent hood? can i use charcoal filters, for example?
        by|Jul 10, 2023
        1 Answer
        Answer This Question

        A:  Hello, Yes, this hood can be converted to recirculating with the compatible recirculating kit, model # ZRC-00PI. Charcoal filters are part # Z0F-C0PI. Thank you for your inquiry! - Zephyr

        by|Jul 11, 2023
          Showing 1-4 of 4

          Customer Reviews

          4 out of 5

          • 4 out of 4 reviews
          • 0% recommend this product
          Filter by:
          Showing 1-4 of 4 reviews
          • Verified Purchase
          Zephyr: Unpack and inspect with scrutiny. Two of three units...
          Zephyr: Unpack and inspect with scrutiny. Two of three units were defective. RC Willy: First seller of product was incredibly helpful in locating a second unit at Home Depot. Home Depot: Exceeded expectation. Delivered product on time. It was damaged. Arranged for hassle free replacement earlier than estimated delivery date. JP Appliance installed the third unit. The unit is powerful, quiet, functional and beautiful in its 1.25 inch reveal below the upper cabinet. All I have to do is pull out the bezel and it works at previous light and fan setting.
          Response from zephyrventilation TeamJan 27, 2023
          We’re happy to hear this! Thank you for your review! -Zephyr zephyrventilation
          • Verified Purchase
          1 found this review helpful
          Forget about it!
          Poorly made and engineered. Frame is not strong enough to hold its weight once mounted under cabinet which cause bowing and out of alignment issues, which in turn keep the sliding vent from functioning. Tried to replace it but Zephyr refused to send replacement unless I agree that the replacement was non-returnable. Save yourself a headache and select a reputable company to do business with.
          Response from ZephyrJul 12, 2022
          Hello, Thank you for your review and comments. We apologize for your experience. Please reach out directly to Zephyr Product Support: support@zephyronline.com . We would like to learn more and resolve your concerns promptly! -Zephyr
            4 found this review helpful
            Perfect replacement for my 20 years old low profile range...
            Perfect replacement for my 20 years old low profile range hood. Quiet and powerful! Home Depot customer service was also excellent!
            Response from ZephyrOct 18, 2021
            Thank you for your review! - Zephyr
              Showing 1-4 of 4 reviews
