16 in. Wall Mounted Shutter Exhaust Fan, Automatic Shutter, with Thermostat and Variable Speed controller, 1200 CFM

$119.75
Apply Now
Pay $94.75 after $25 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
Product Details

About This Product

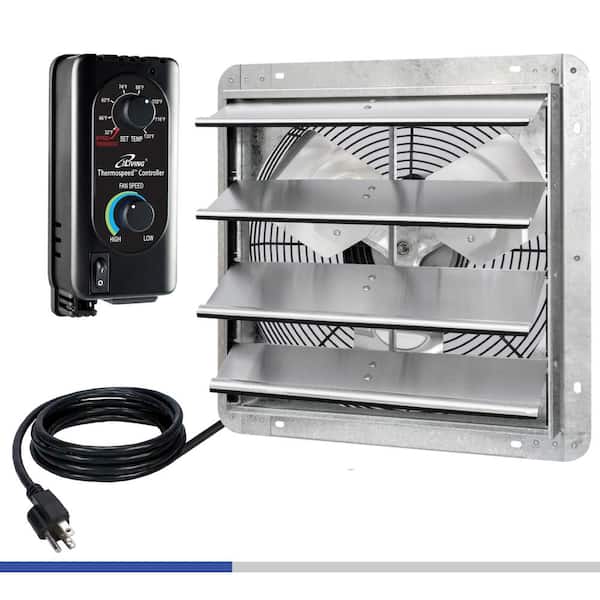

The iLIVING Shutter Exhaust Fan is perfect for removing excess heat, moisture, and unpleasant odors from virtually any commercial location, including restaurants, factories, warehouses, barns, and greenhouses. This fan features aluminum blades, OSHA compliant wire guards, and automatic shutters that open and close in tandem with the operation of the fan. The completely enclosed motor is thermally protected and permanently lubricated. Equipped with the newest Thermospeed Controller which can easily control the temperature and speed. Auto cycle ON/OFF at your desired temperature. The fan comes fully assembled out of the box.

Highlights

  • POWERFUL AIR VENTILATOR - 1200 CFM, 115V, 0.85A, 1/20 Horse Power, 1550 RPM, Coverage up to 1800 square feet. Industrial ventilation fan with shutter. 16 Inch Variable Speed Shutter Exhaust Fan with automatic shutters
  • SPEED AND THERMAL CONTROL - Variable speed and temperature regulation control, comes with Variable speeds and thermal control features of newest Thermospeed(TM) Controller ILG8SFST, temperature control range 32 - 130F
  • BUILD TO LAST - Industrial grade galvanized steel frame with aluminum shutters and fan blades, reliable direct drive motor, Variable speed, UL certified, Noise Level ~ 65dB. Ideal for warehouse, garage, greenhouse, workshop exhaust and dust extraction. Corrosion-resistant with OSHA compliant wire guards. UL Listed with speed controllable, permanently lubricated motor
  • EFFICIENT - 16 inches steel blades with deep pitch angle for maximum air movement, exchange air at 1200 cubic feet per minutes. Mounting type : Wall Mount
  • CUSTOMER SUPPORT - Local customer support to address all questions and concerns
  • Product is UL/cUL Listed
  • Return Policy

Product Information

Internet # 325146809

Model # ILG8SF16V-ST

Store SKU # 1009505953

Specifications

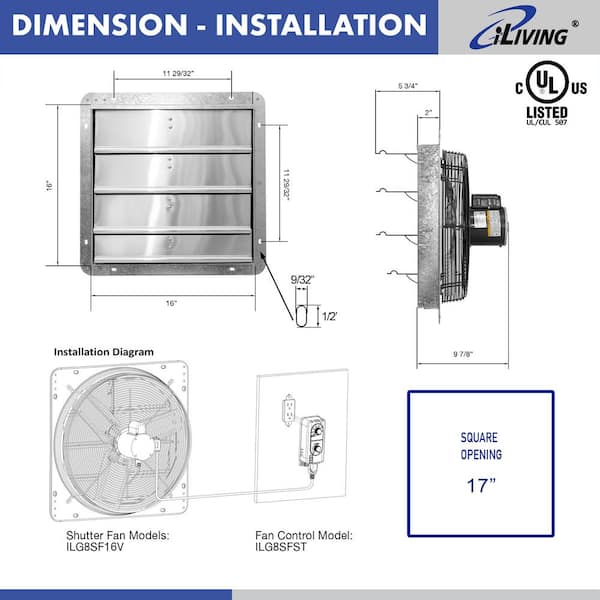

Dimensions: H 19 in, W 19 in, D 5.75 in

Dimensions

Coverage Area (Sq.Ft)

1800

Cut-Out Diameter (in.)

17

Net-Free Area (Sq. In.)

16

Product Depth (in.)

5.75 in

Product Height (in.)

19 in

Product Width (in.)

19 in

Rough Opening Height (in.)

17 in

Rough Opening Width (in.)

17 in

Details

Airflow (CFM)

1200

Amperage (A)

0.85 A

Color Family

Silver

Color/Finish

Silver

Drive Type

Direct Drive

Features

Automatic Shutter, Corrosion Resistant, Speed Control, Thermostat Controlled, Weather Resistant

Horsepower (hp)

1/20 hp

Intake/Exhaust

Exhaust

Material

Galvanized Steel

Mounting Position

Gable Mount

Power Type

Electric Powered

Product Weight (lb.)

13.8 lb

Recommended Sq. Ft.

1800

Returnable

90-Day

Ventilation Type

Exhaust

Voltage (V)

115 V

Wattage (watts)

97

Warranty / Certifications

Manufacturer Warranty

1-Year Limited Component Warranty

Questions & Answers

2Questions
caret
Q:Is the 19 X 19 dimension meqsuredrom the mounting fiange? If so, what is the dimension of the fan enclosure?
by|Aug 28, 2023
1 Answer
Answer This Question

A:  Thanks for shopping with Spreetail! To answer your question, we were unfortunately not provided with this information from the manufacturer and I’d suggest reaching out to them directly in order to get the most accurate information.

by|Aug 28, 2023
    caret
    Q:How long is the cord?
    by|Mar 17, 2023
    1 Answer
    Answer This Question

    A:  Thanks for shopping with Spreetail. I'd be more than happy to answer your question. However, we were not provided this information and I’d suggest reaching out to Home Depot directly in order to get the most accurate information. You can reach them at 1 (800) 430-3376

    by|Jul 28, 2023
      1 found this answer helpful
      Showing 1-2 of 2

      Customer Reviews

      4 out of 5

      • 4 out of 3 reviews
      • 0% recommend this product
      Filter by:
      Showing 1-3 of 3 reviews
      by
      • Verified Purchase
      by
      • Verified Purchase
      The fan and thermostat work perfectly, however, the shutter does...
      The fan and thermostat work perfectly, however, the shutter does not open or close fully. At maximum speed, the shutter is 3/4 open. This may be how it works... but when the fan is off, the shutter does not fully close. This is exactly what I wanted to avoid, letting flying insects in.
      by
      • Verified Purchase
      Showing 1-3 of 3 reviews

      Compare Similar Items

      current item

      Features

      Automatic Shutter, Corrosion Resistant, Speed Control, Thermostat Controlled, Weather Resistant

      Automatic Shutter, Corrosion Resistant, Weather Resistant

      Automatic Shutter, Corrosion Resistant, Speed Control, Thermostat Controlled, Weather Resistant

      Automatic Shutter, Corrosion Resistant, Thermostat Controlled, Weather Resistant

      Power Type

      Electric Powered

      Electric Powered

      Electric Powered

      Electric Powered

      Rough Opening Width (in.)

      17 in

      13 in

      19 in

      21 in

      Net-Free Area (Sq. In.)

      16

      13

      18

      21

      Drive Type

      Direct Drive

      Direct Drive

      Direct Drive

      Direct Drive
