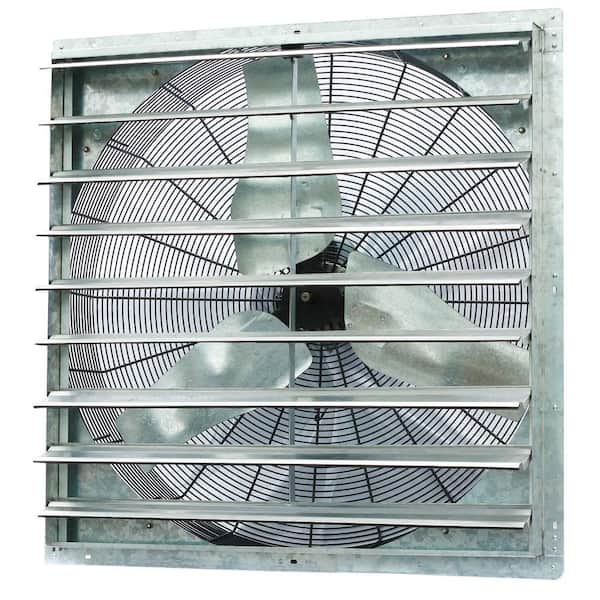

6128 CFM Silver Electric Powered Gable Mount Shutter Fan/Vent

$43592
Apply Now
Pay $385.92 after $50 OFF your total qualifying purchase upon opening a new card. info
Apply for a Home Depot Consumer Card
  • Made using robust aluminum for greater durability
  • Effectively helps remove moisture, odors, and excess heat
  • 1-year warranty on parts and components
  • View More Details
Store
0 in stock
icon
Free & Easy Returns In Store or Online
Return this item within 90 days of purchase. Read Return Policy
caret

Product Details

The iLIVING Shutter Exhaust Fan is perfect for removing excess heat, moisture and unpleasant odors from virtually any commercial location, including restaurants, factories, warehouses, barns and greenhouses. This fan features aluminum blades, OSHA compliant wire guards and automatic shutters that open and close in tandem with the operation of the fan. The completely enclosed motor is thermally protected and permanently lubricated. The fan comes fully assembled out of the box; only installation required is the electrical hardwiring. The shutter fan comes in 8 different sizes: 10 in., 12 in., 16 in., 18 in., 20 in., 24 in., 30 in. and 36 in.; the 18 in. shutter fan has both a variable speed model and a single speed model. The iLIVING 30 in. and 36 in. shutter fans are only available in single speed. For variable speed models, the ILG8SFSC speed controller is sold separately.

Additional Resources

From the Manufacturer

caret

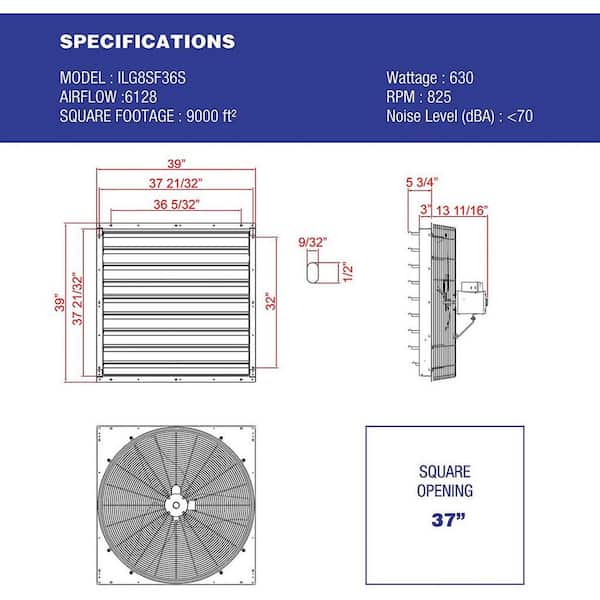

Specifications

Dimensions: H 39 in, W 39 in, D 5.75 in

Dimensions

Coverage Area (Sq.Ft)9000Cut-Out Diameter (in.)37
Net-Free Area (Sq. In.)37Product Depth (in.)5.75 in
Product Height (in.)39 inProduct Width (in.)39 in
Rough Opening Height (in.)37 inRough Opening Width (in.)37 in

Details

Airflow (CFM)6128Amperage (A)6 A
Color FamilySilverColor/FinishSilver
Color/Finish FamilySilverDrive TypeDirect Drive
FeaturesAutomatic Shutter, Corrosion Resistant, Weather ResistantHorsepower (hp)1/2 hp
Intake/ExhaustExhaustMaterialAluminum
Mounting PositionGable MountPower TypeElectric Powered
Product Weight (lb.)65.3 lbRecommended Sq. Ft.9000
Returnable90-DayVentilation TypeExhaust
Voltage (V)115 VWattage (watts)720

Warranty / Certifications

Manufacturer Warranty1 Year Parts and Components
caret

Questions & Answers

48Questions
caret
Q:Is is thermostatically controlled?
by|Oct 14, 2023
1 Answer
Answer This Question

A:  Unfortunately not.

by|Oct 15, 2023
    caret
    Q:can it be mounted on the ceiling in a hallway
    by|Sep 9, 2023
    1 Answer
    Answer This Question

    A:  To answer your question, we were unfortunately not provided with this specific question information from the manufacturer and I’d suggest reaching out to them directly in order to get the most accurate information.

    by|Sep 9, 2023
      caret
      Q:what kind of bearing is used? Bushing, Graphite? What is max Temperature Rating?
      by|Sep 1, 2023
      1 Answer
      Answer This Question

      A:  fan motor is a ball-bearing brushless motor.

      by|Sep 1, 2023
        caret
        Q:How do I calculate the size I will need for my attic. My house is 1100sq ft.
        by|Jul 31, 2023
        1 Answer
        Answer This Question

        A:  Great question! This covers 5800 square feet.

        by|Sep 30, 2023
          1 found this answer helpful
          Showing 1-4 of 48
          caret

          Customer Reviews

          4.2 out of 5
          (64)
          • 4.2
            out of 64 reviews
          • 72% recommend this product
          Filter by:
          Showing 1-10 of 64 reviews
          So far good it moves air good. I put in a 30x30 shop
          So far good it moves air good. I put in a 30x30 shop
          by
          • Verified Purchase
          • Recommended
          Using this 18 inch fan to move the hot air from my garage through the roof with modifications. Ai...
          Using this 18 inch fan to move the hot air from my garage through the roof with modifications. Air vent is 24 inches with a 12 inch collar. Makes a lot of noise but works good. Now I will see how long it lasts using it for short usage to remove car exhaust or deep fryer smells.
          by
          • DIY
          • Verified Purchase
          • Recommended
          This 1/2 hp motor is pretty heavy. It is attached to the wire fan shroud and supported only on th...
          This 1/2 hp motor is pretty heavy. It is attached to the wire fan shroud and supported only on the bottom by one 10" brace also attached to the shroud. It must be installed in a very stiff housing. However, this does not prevent the motor itself from vibrating badly, shaking the shroud and describing a 1" vibration arc at the back. After adding a metal strapping "V" support to the bottom of the fan and screwing this into the wall, the vibrations were reduced to an acceptable level.
          by
            7 found this review helpful
            by
              Exactly what I needed and wanted
              by
                Fan works well. Quite a bit of vibration while fan is running
                by
                • Verified Purchase
                by
                • Verified Purchase
                What I needed and does a great job...
                What I needed and does a great job
                by
                • Verified Purchase
                Great fan bought it to go in my barn
                Bought this fan to go in my barn -- 35 x 70 x 26 feet tall -- 3 big doors and a few windows . it moves a lot of air -- yes you can tell when it is on just from the air movement -- the only problem is that is not the only reason you can tell when it is on --- it is really loud -- you can hear it 250 feed away from the barn -- it is noisy very noisy -- it a combination of the motor speed and the blade type -- a slower motor and bigger blades would really quite it down -- but slower motors and big blades cost more -- so there you go -- still running 4 years later still noisy
                by
                  1 found this review helpful
                  The fan works great. It moves a lot of air...
                  The fan works great. It moves a lot of air and keeps attic cool. It was easy to install.
