- Pumps up to 4200 GPH at 0 ft.
- Heavy-duty cast iron volute
- Perfect for underground sprinkling systems
- View More Details
Free & Easy Returns In Store or Online
Return this item within 7 days of purchase.
Ask about this product
Get an answer now with AI
Magic Apron Assistant is an AI virtual assistant. By proceeding, you consent to the recording and use of your information by The Home Depot (and authorized third parties). More information
Product Details
About This Product

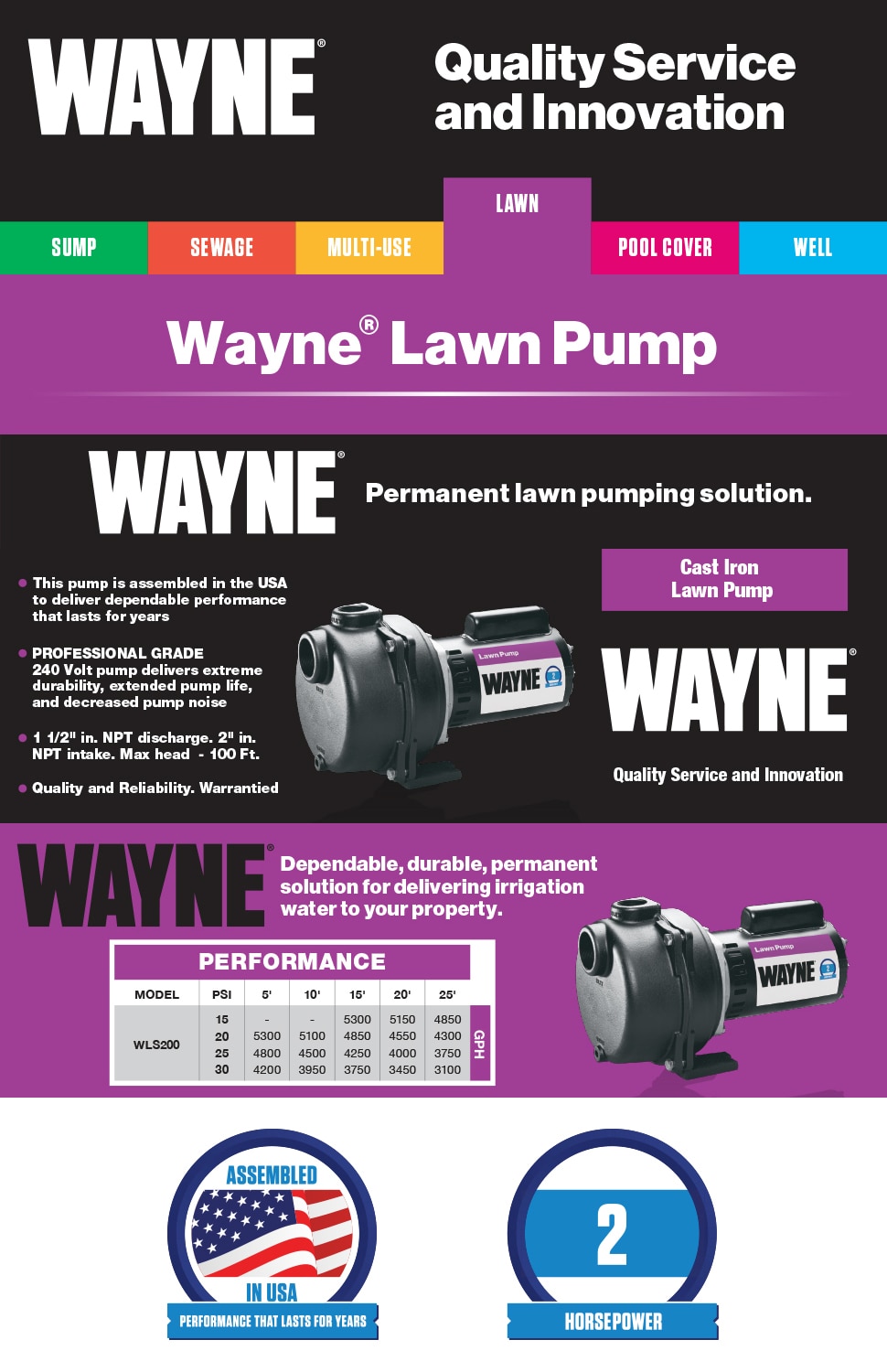

The Wayne WLS200 230-Volt cast iron sprinkling pump pumps up to 4200 GPH at 30 psi. It's features include a durable cast iron volute and corrosion-resistant, reinforced thermoplastic infuser and impeller. The pump is designed to operate underground sprinkling systems, draw water from a well, lake or pond for watering, pool filling or any other applications where high water volume is needed.
Highlights
- Remove standing water from flooded areas, sprinkle lawns and gardens, and empty stock tanks
- Designed to operate underground sprinkling systems, draw water from wells, lakes or ponds for watering, pool filling or any applications where high water volume is needed
- 2 HP; max. flow rate is 4200 GPH (at 5 ft. / 30 psi.); 3950 GPH at 10 ft. of discharge lift at 30 psi.
- Motor set for 240-Volt (WLS75, WLS100 and WLS150 models include a dual voltage option - 240/120-Volt)
- 2 in. NPT suction with 1-1/2 in. NPT discharge for maximum water flow
- CSA listed
- Assembled in the U.S.A.
- Click here for more information on Electronic Recycling Programs
- Return Policy
Product Information
Specifications
Dimensions: H 8 in, W 20 in, D 18 in
Dimensions
Product Depth (in.) | 18 in |
|---|---|
Product Height (in.) | 8 in |
Product Width (in.) | 20 in |
Details
Amperage (A) | 11.5 A |
|---|---|
Discharge Flow @ 0 ft. (gallons/hour) | 4200 |
Discharge Flow @ 0 ft. (gallons/min) | 70 |
Discharge Flow @ 10 ft. (gallons/hour) | 3950 |
Discharge Flow @ 10 ft. (gallons/min) | 65.83 |
Head Pressure (ft.) | 120 |
Impeller Material | Thermoplastic |
Inlet Connection | Threaded female |
Maximum Horsepower (hp) | 2 |
Maximum Pressure (PSI) | 30 PSI |
Outlet Connection | Threaded female |
Returnable | 7-Day |
Vertical Lift (ft.) | 25 |
Voltage | 240v |
Warranty / Certifications
Certifications and Listings | CSA Listed |
|---|---|
Manufacturer Warranty | 1 Year Limited Warranty |
Questions & Answers
I have existing 1" piping from a lake that is buried under a stone patio before it reaches the pump, so the piping can't be increased to 2". If I adapt the 1" suction line to 2" at the pump, will that damage the pump?
Walker - Reducing the intake can cause premature pump failure by starving the pump of water it demands. Please feel free to contact us via 800.237.0987 Monday-Friday 8 a.m. - 5 p.m. for any further questions. We look forward to hearing from you.
What is the inlet and discharge pipe diameter
Hello, thank you for your inquiry. 2 in. NPT suction with 1 1/2 in. NPT discharge for maximum water flow.
Is the impeller plastic or brass
Hello Dennis, The impeller is thermal plastic. Thank you for your inquiry.
Can this pump pull water 40ft up hill and then 250 ft to yard?
Hello Richard, This pump has a max lift of 25ft. Thank you
What size breaker is needed for this unit
It pulls 11.5 Amps so you'd need at least a 15Amp breaker
I'm trying to figure out how much PSI this pump will potentially produce for my future irrigation system.
Hello Jordan, thank you for your inquiry. The pumps psi is based on your Piping. The pump it self has a 30 psi without piping.
It depends on the sprinkler system design. (extreme example). If you have one sprinkler head you’ll get high pressure. If you have 100 sprinkler heads you’ll get low pressure. Probably good info on YouTube etc on how to match pump performance (Pump Curve)
Outside installation alright
Hello, As long as the unit is protected from the elements it can be installed outside. elements such has heat, rain, freezing.
What is the manufacturer warranty
This unit comes with a 1 year manufacturer warranty.
